EGE-MX42

4x2 HDMI 2.0 Matrix Switcher with Audio Extract/ Scale/ARC/EDID function

4×2 HDMI 2.0 Matrix Switcher
with Audio Extract/ Scale
ARC/ EDID function

Categories: , ,
Brand:

Description

This high performance HDMI Matrix Switcher can switch any of four HDMI sources to two HDMI displays. It supports resolution up to 4K2K@60Hz YCbCr 4:4:4 and HDCP 2.2. It can extract HDMI source device audio to optical and analog L/R output. It supports 4K 1080P downscale function if source is 4K but TV only supports up to 1080P. It also supports ARC and EDID (AUTO/COPY/ STD) function. With its 18Gbps bandwidth and the additional features with latest HDMI standards. Flexible control via front panel buttons and IR remote.

Spesifications

• HDMI 2.0b, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant

• Supports 4 HDMI inputs and 2 HDMI outputs

• Video resolution up to 4K2K@60Hz YCbCr 4:4:4

• Supports 18Gbps uncompressed bandwidth on all HDMI

• Supports Dolby Vision, HDR 10+, HLG and CEC function

• Supports extract HDMI input source device audio of OUT A or OUT B to optical and analog L/R output

• OUT A and OUT B support 4K to 1080P downscale function

• Supports ARC (Audio Return Channel) function

• Supports advanced EDID management including AUTO, COPY and STD

• Control is via front panel buttons and IR remote

Box Contents

• 1× 4×2 HDMI2.0 Matrix Switcher

• 1× 12V/1A Locking Power Adapter

• 2× Mounting Ears

• 1× IR Remote

• 1× User Manual

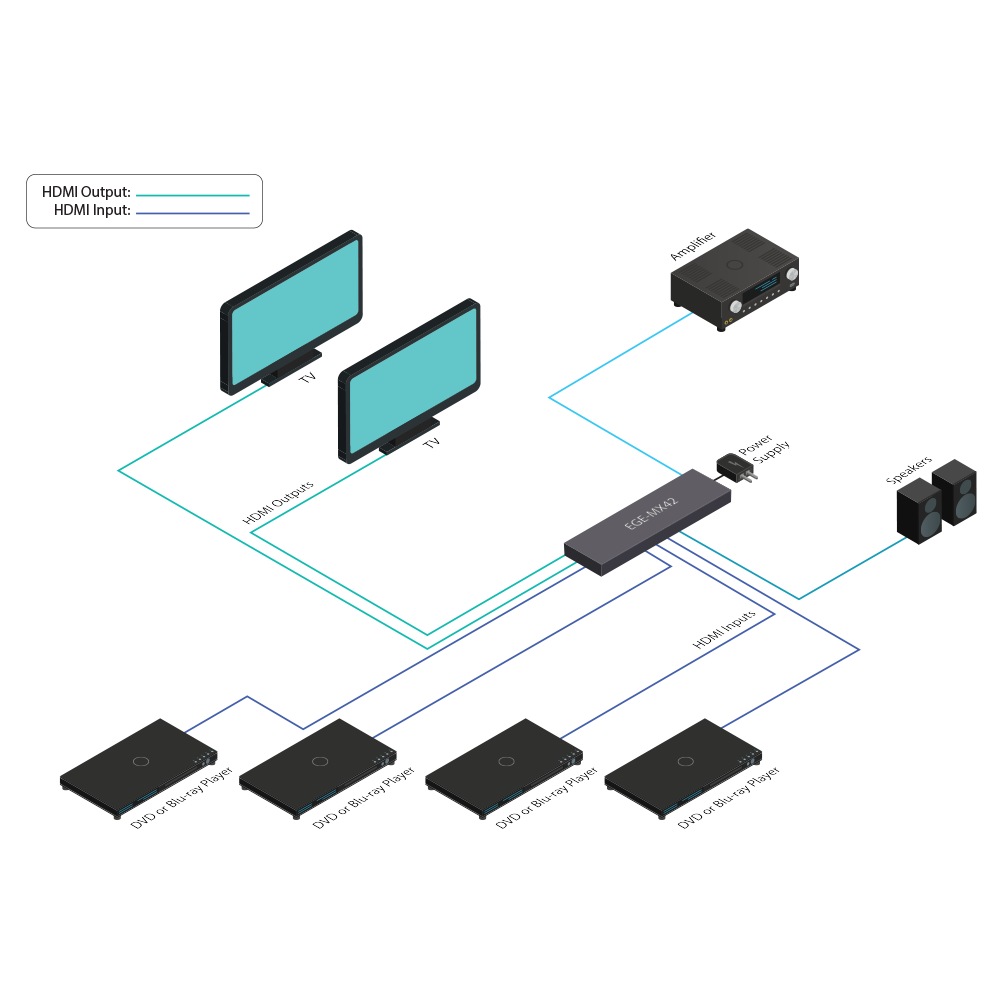

Diagrams

Dowloads

User Manual
Datasheet
