EGE-P-300VD

VGA to DVI Scaler

VGA to DVI Scaler
WUXGA@60Hz

Description

The VGA to DVI Scaler is designed to convert a VGA signal to DVI so that it can be displayed on a DVI monitor without loss of image quality. It can upscale VGA input sources to DVI output for a wide-range of PC resolutions, from VGA to WUXGA. The Scaler has a variety of output resolutions and adjustment for the best picture quality. Also, the built-in OSD function makes it easy for the user to view or select the desired resolution.

Spesifications

  • Supports PC esolution bypass from VGA to WUXGA@60Hz (RB)
  • Supports bypass, manual and TV native modes
  • Supports auto-detection and hot plugging

Inputsfgrera

  • 1x 15-pin D-sub [1x VGA RGBHV]

Outputs

  • 1x DVI-I [1x DVI-D]

PSU:

  • 5V/1A

Dimensions

  • 110mm [W] x 62mm [D] x 20mm [H]

Net Weight

  • 76gr

Box Contents

• 1×VGA to DVI Scaler

• 1×5V DC Power Adaptor

• Operation Manual

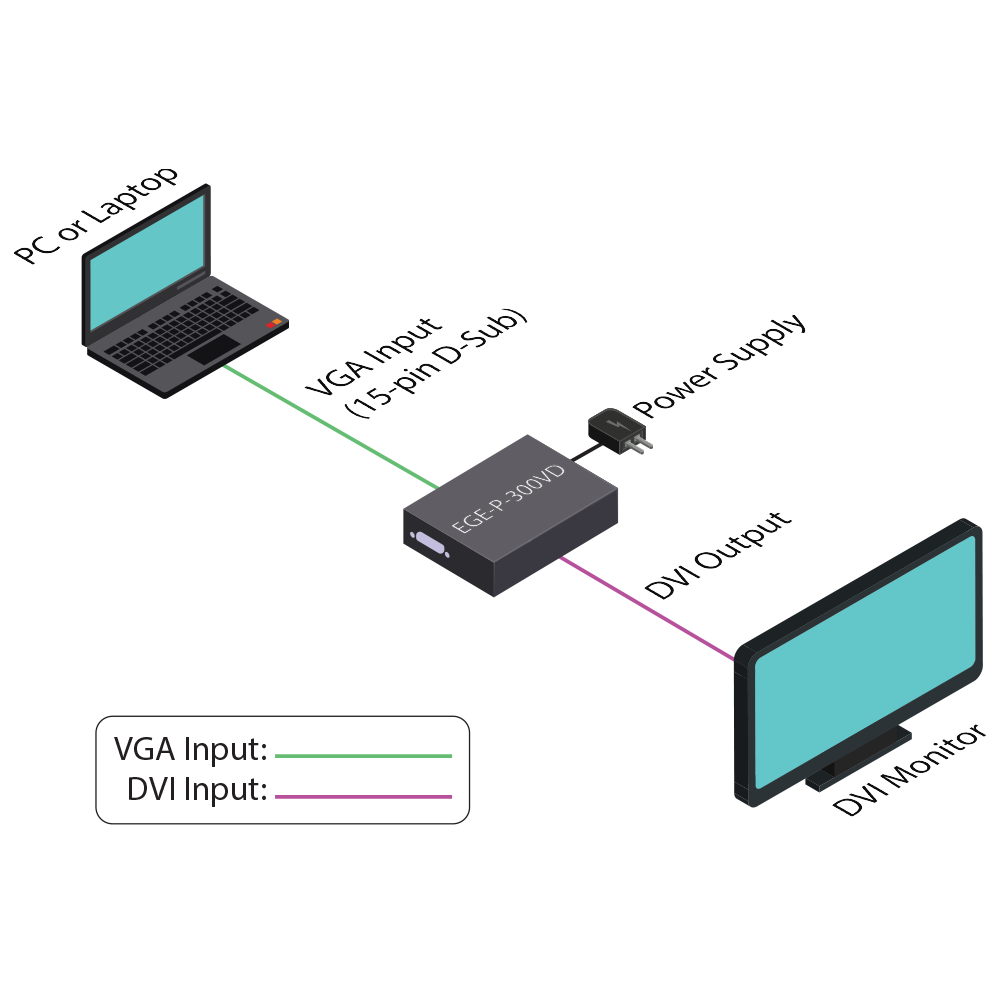

Diagrams
