EGE-PSW-SCA-844MI

• Supports scaling of any input signals to a wide range of HDTV and PC output resolutions up to 1080p and WUXGA (RB)
• Digital to Analog and Analog to Digital Audio conversion (DAC/ADC)
• Compatible with HDMI, HDCP 1.1
• Excellent Audio transmission (32-192kHz sample rate)
• Supports distances up to 100 meters over CAT5e/6/7 cables
• Simultaneous video output through the HDBaseT, HDMI outputs and audio output through the digital coaxial and analog L/R outputs
• Supports switchable HDMI bypass allowing local monitoring of any of the HDMI or HDBaseT inputs
• Supports Power over Ethernet (PoE) on the CAT5e/6/7 output to a compatible receiver
• Control scaler via IR, Remote control, RS-232, Telnet, Web GUI and on-panel controls
• Supports HDBaseT LAN serving function to a compatible receiver
• Supports High-definition Audio: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD

Inputs

• 4x HDMI [4x Uncompressed AV and Data]
• 2x RJ45 [2x HDMI & Propriety Data]
• 1x 15-pin D-sub [1x PC RGBHV]
• 1x RCA [1x Composite Video]
• 5x 3.5mm Stereo Mini-jack [5x Stereo(L/R)]
• 2x RCA [1x Stereo (L/R)]
• 1x 9-pin D-sub [1x RS-232 Data]
• 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
• 1x RJ45 [1x IP Control / LAN Serving]
• 1x USB Type A [1x SERVICE 1 Propriety Data]
• 1x USB Mini-B [1x SERVICE 2 Propriety Data]

Outputs

• 2x HDMI [2x Uncompressed AV and Data]
• 1x HDMI [1x BYPASS Uncompressed AV and Data]
• 1x RJ45 [1x HDMI & Propriety Data]
• 1x RCA [1x COAX 2 Channel LPCM]
• 2x 3.5mm Stereo Mini-jack [2x Stereo(L/R)]
• 1x 3.5mm Stereo Mini-jack [1x Infrared Emitter]

PSU:

• 24V/2.7A

Dimensions

• 438mm [W] x 275mm [D] x 44mm [H]

Net Weight

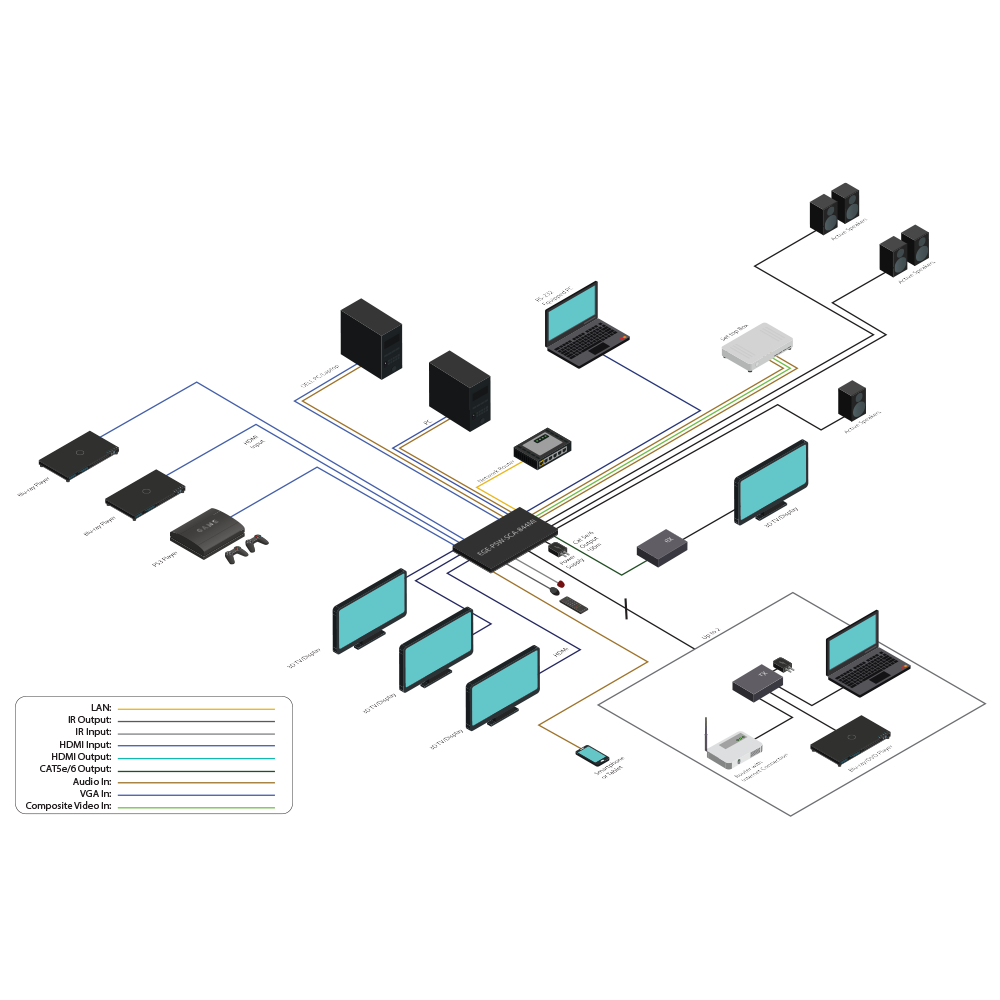

• 3410grThis HDBaseT™ capable 8 by 4 Digital Presentation Scaler can switch and scale HDMI/
  HDBaseT/PC/Composite Video signals from any one of its eight inputs and simultaneously
  display it on any of its HMDI or HDBaseT outputs. The unit has and HDMI bypass output,
  allowing local monitoring of any of the HDMI or HDBaseT inputs, and features full 5play™
  convergence for easy integration of compatible transmitters and receivers. It has the added
  benefit of control via IR remote control, RS-232, IP/Telnet and WebGUI, with all information
  including system status presented on its comprehensive LCD display

• 1 x 8 by 4 Presentation Scaler

• 1 x IR Extender Cable

• 1 x IR Receiver Cable

• 1 x Remote Control with Battery

• 1 x 24V/ 2.7A DC Power Adaptor

• 1 x Power Cord

• Operation Manual
