EGE-SCA-3SDI-142

1×2 3G-SDI Video Scaler

1×2 3G-SDI Video Scaler
SDI input/output distances:
100 meters (3G-SDI), 200 meters (HD-SDI), 300 meters (SD-SDI)

Categories: , , Brand:

Description

The 1 by 2 SDI to SDI Scaler allows SD, HD, 3G-SDI signals to be shown on SDI display. It is easier for professional to distribute and extend their SDI signal. Through the front panel, the user can easy to bring up the OSD (On Screen Display) to select benefits settings.

Spesifications

  • Splits an SDI input to two SDI outputs with scaler function
  • Supports scaling of any SDI input to any SDI output to SDI standards
  • Supports SD-SDI, HD-SDI and 3G-SDI input/output signals with autodetection
  • Supports SDI bitrates of 2.970Gbps & 2.970/1.001Gbps, 1.485Gbps & 1.485/1.001Gbps, and 270Mbps
  • Supports SDI input/output modes/standards:
    • SD-SDI: SMPTE 259M-C@270Mbps
    • HD-SDI: SMPTE 292M@1.485Gbps & 1.485/1.001Gbps
  • 3G-SDI: SMPTE 424M/425M-A@2.970Gbps & 2.970/1.001Gbps
  • -Supports up to 8 audio channels at 48 kHz
  • -Supports SDI input/output distances up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Inputs

  • 1x BNC [1x 3G-SDI / HD-SDI / SD-SDI]

Outputs

  • 2x BNC [2x 3G-SDI / HD-SDI / SD-SDI]

PSU:

  • 5V/2.6A

Dimensions

  • 145mm [W] x 131mm [D] x 30mm [H]

Net Weight

  • 354gr

Box Contents

• 1 by 2 SDI to SDI Scaler box

• 5V/2.6A DC power adaptor

• Operation Manual

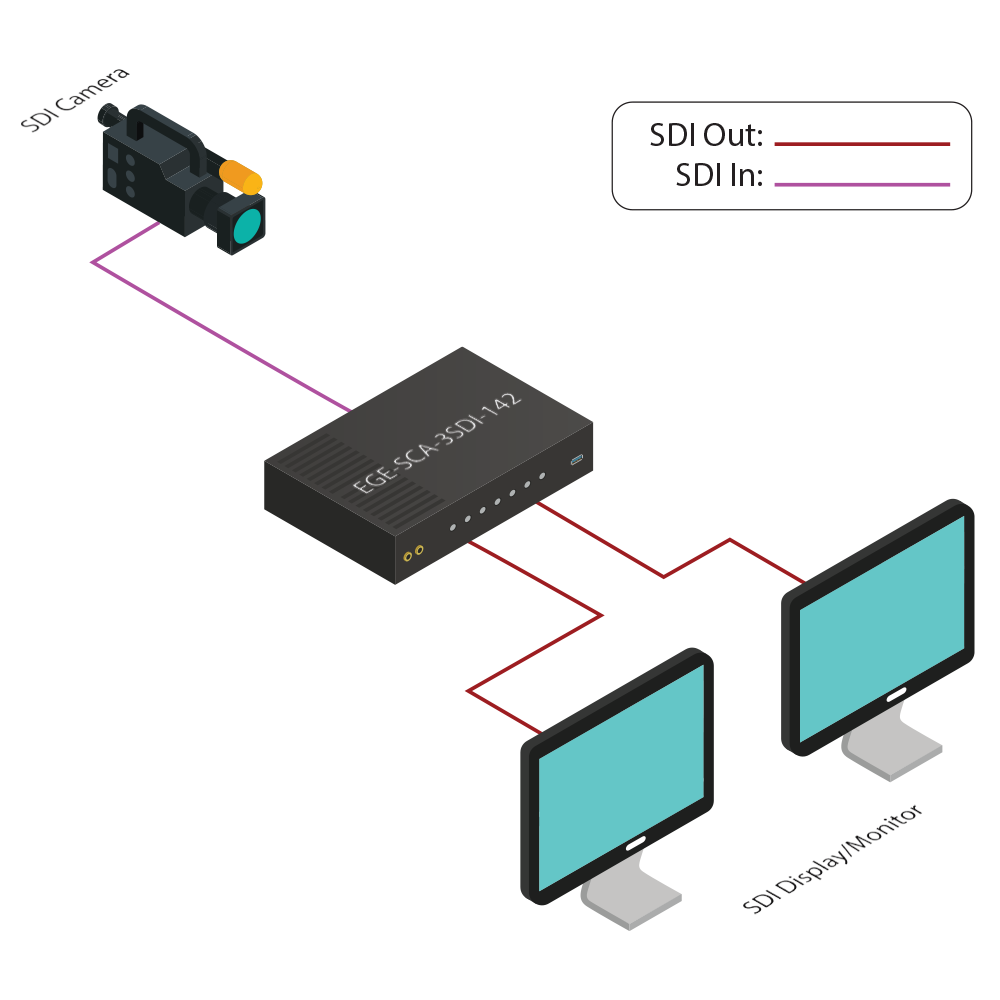

Diagrams

Dowloads

User Manual
Datasheet
