EGE-SCA-3SDI-HD

3G-SDI to HDMI Scaler

3G-SDI to HDMI Scaler
Audio De-embedding
1080p@60Hz

Categories: , ,
Brand:

Description

The SDI to HDMI Scaler allows SD, HD and 3G-SDI signals to be shown on HDMI and SDI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on HDMI displays. Furthermore, thanks to coaxial (S/PDIF) and L/R audio outputs users can output audio in both digital and analog formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on both SDI and HDMI displays.

Spesifications

  • Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection
  • Supports HDMI and SDI (bypass) output simultaneously
  • SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
  • Scale any SDI input signal to HDMI, PC timings suppot SVGA@60~WUXGA@60 (RB) and HDTV timings 480p/576p~1080p@50/60
  • Supports SD-SDI SMPTE 259M-C, at bitrates of 270 Mbit/s; HD-SDI SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s; 3G-SDI SMPTE 424M/425M-A, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s
  • Equalized and re-clocked loop output
  • Alternative audio output to coaxial and analog 2 CH
  • Integrated audio de-embedder for up to 8 channels of 48 kHz audio
  • Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Inputs

  • 1x BNC [1x 3G-SDI]

Outputs

  • 1x BNC [1x Loop Output 3G-SDI]
  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x RCA [1x Coax 2 Channel LPCM]
  • 2x RCA [1x Stereo (L/R)]

PSU:

  • 5V/2.6A

Dimensions

  • 180mm [W] x 142mm [D] x 25mm [H]

Net Weight

  • 460gr

Box Contents

• SDI to HDMI Scaler with Audio

• 5V/2.6A DC power adaptor

• Operation Manual

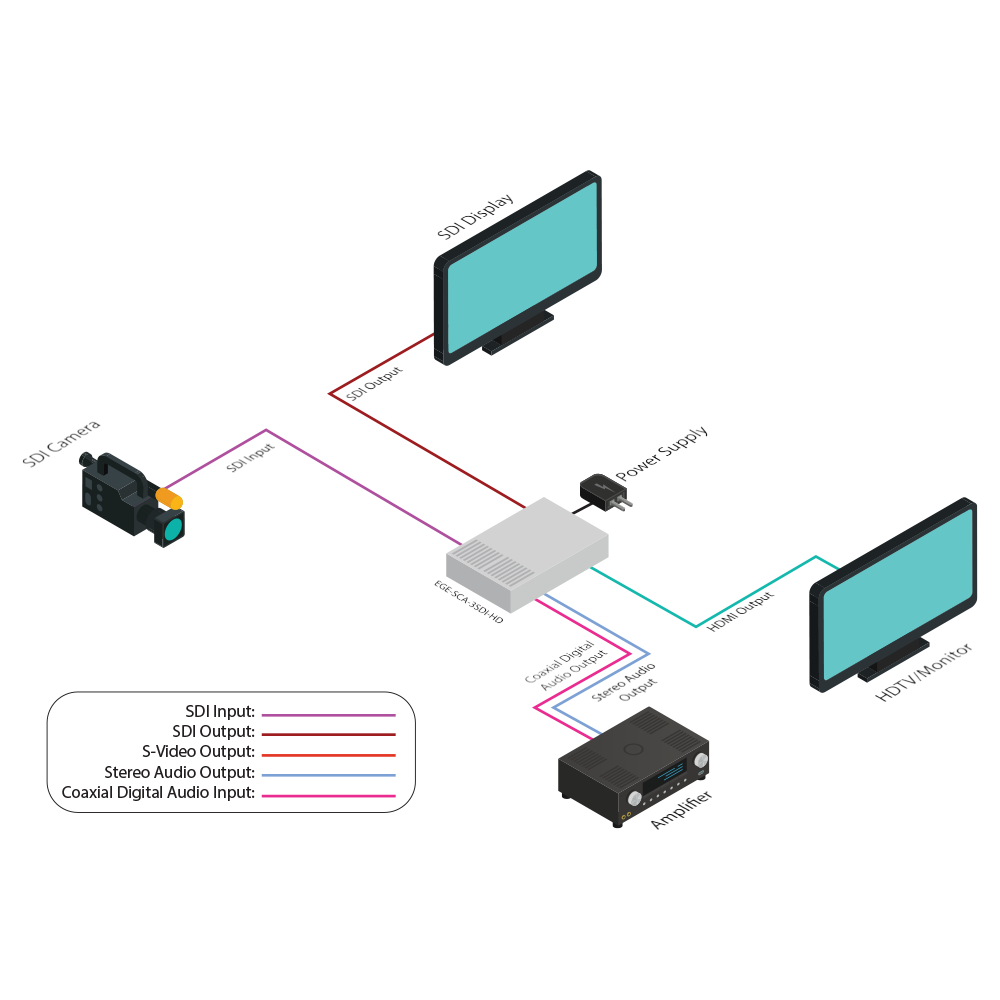

Diagrams
