EGE-SCA-3SDI-VG

3G-SDI to VGA Scaler

3G-SDI to VGA Scaler
WUXGA@60Hz
1080p@60Hz

Categories: , ,
Brand:

Description

The SDI to VGA Scaler allows SD, HD and 3G-SDI signals to be shown on PC/HD display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on PC/HD display. Furthermore, thanks to coaxial (S/PDIF) and L/R audio outputs users can output audio in both digital and analog formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on both SDI and PC/HD displays.

Spesifications

  • Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection
  • Supports PC/HD and SDI (bypass) output simultaneously
  • SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
  • Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
  • Scale any SDI signal to PC/HD, PC timings support VGA@60 Hz~WUXGA@60 Hz (RB) and HDTV timings support 480i/576i~1080p@50/60 Hz
  • Supports SD-SDI SMPTE 259M-C, at bitrates of 270 Mbit/s; HD-SDI SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s; 3G-SDI SMPTE 424M/425M-A, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s
  • Equalized and re-clocked loop output
  • Alternative audio output to coaxial and analog 2CH

Inputs

  • 1x BNC [1x 3G-SDI]

Outputs

  • 1x BNC [1x Loop Output 3G-SDI]
  • 1x 15-pin D-sub [1x RGBHV / YPbPr Component]
  • 1x RCA [1x Coax 2 Channel LPCM]
  • 2x RCA [1x Stereo (L/R)]

PSU:

  • 5V/2.6A

Dimensions

  • 180mm [W] x 142mm [D] x 25mm [H]

Net Weight

  • 435gr

Box Contents

• SDI to PC/HD Scaler with Audio

• 5 V/2.6 A DC Power Adaptor

• Operation Manual

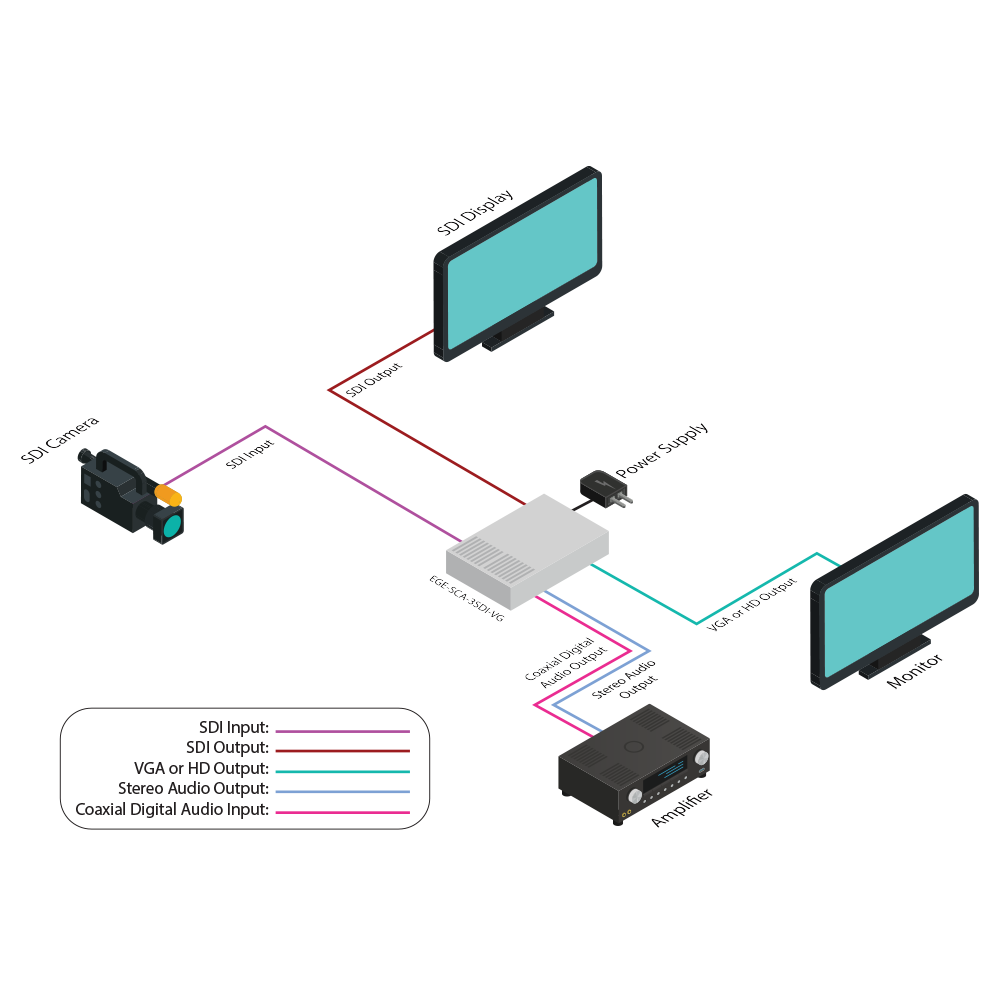

Diagrams

Dowloads

User Manual
Datasheet
