EGE-SCA-CV-HD

CCV/SV to HDMI Scaler with Stereo R/L Audio Input

CV/SV to HDMI Scaler
2 RCA Audio Input
Resolution PC: WUXGA HD: 1080p@60Hz

Categories: , ,
Brand:

Description

The EGE-SCA-CV-HD Video to HDMI Scaler Box is designed to scale CVBS and S-Video with R/L audio into HDMI. Supporting PC timings up to WUXGA 1920 x 1200 at 60Hz and HD timings up to 1080p at 60Hz. Supporting the NTSC and PAL TV standards and allowing you to select the specific video timing through the OSD, this device has many features that enhance the quality of your videos.

Spesifications

  • Motion adaptive 3-D de-interlacing and 3D Y/C separation with CVBS input
  • Automatic 2:2/3:2 film mode detection and correction
  • Automatic NTSC/PAL video format detection and frame rate conversion (from 50Hz to 60Hz)
  • Automatic 3D noise reduction
  • Supports one dimensional CTI (Chroma Transient Improvement) and LTI (Luminance Transient Improvement) for edge improvement
  • OSD menu for picture quality adjustment
  • Supports HD timings from 480p@60 Hz to 1080i/p@60 Hz and PC timings from VGA@640×480 to WUXGA@1920×1200
  • Two ways to control the CM-1392M, either using an IR remote control or the control panel on the device

Inputs

  • 1x RCA [1x Composite Video]
  • 1x S-Video [1x S-video]
  • 2x RCA [1x Stereo (L/R)]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]

PSU:

  • 5V/1A

Dimensions

  • 125mm [W] x 123mm [D] x 30mm [H]

Net Weight

  • 400gr

Box Contents

 Video and L/R to HDMI Scaler Box

 5V DC power supply adaptor

 Operation Manual

 Remote Control

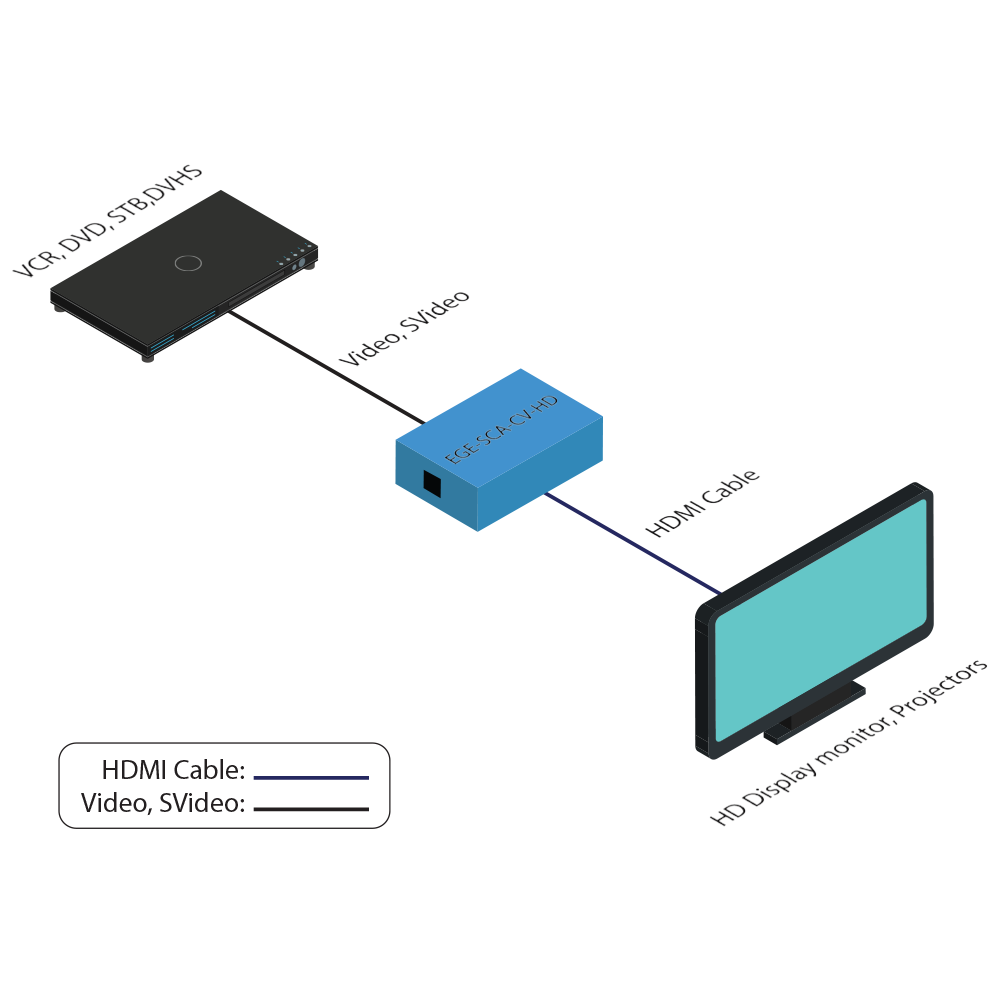

Diagrams
