EGE-SCA-CV-HDAUD

SV/CV to HDMI Scaler with Audio

CV/SV to HDMI Scaler
3.5mm and Optical Audio Out R/L Audio In
Resolution PC: WUXGA / HD:1080p@60Hz

Categories: , ,
Brand:

Description

This Scaler Box is designed to upscale analog video signal from CV/SV input source to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p/WUXGA. Besides video upscaling, the scaler box also converts digital/analog audio signal to digital/ analog formats, then output to HDMI combining with the video, Optical and phone jack (L/R audio) simultaneously. This unit has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality.

Spesifications

  • Compatible with HDMI, HDCP and DVI
  • Supports a wide range of video standards including NTSC, NTSC4, PAL, PAL-M, PAL-N and SECAM
  • Supports upscaling to resolutions of VGA to WUXGA (PC) or 480p to 1080p (HD)
  • Automatically detects the display settings of the connected display and outputs the correct resolution and refresh rate when the NATIVE output option is selected
  • Supports 50/60Hz frame rate conversion
  • Supports 3D motion video adaptive, 3D de-interlacing and 3:2/2:2 pull down detection and recovery
  • Provides adjustment of contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio size of the video output
  • Supports OSD selectable stereo analog and digital audio inputs and simultaneous stereo analog and digital audio outputs to HDMI, Optical digital audio and analog mini-jack connections

Inputs

  • 1x S-Video [1x S-video]
  • 1x RCA [1x Composite Video]
  • 2x RCA [1x Stereo (L/R)]
  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
  • 1x USB Type A [1x Propriety Data]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 2x RCA [1x Stereo (L/R)]
  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM]

PSU:

  • 5V/2.6A

Dimensions

  • 102mm [W] x 186mm [D] x 25mm [H]

Net Weight

  • 396gr

Box Contents

• 1 x CV/SV to HD Scaler

• 1 x Stereo Audio Cable (2RCA)

• 1 x Composite Video Cable

• 1 x 5 V/2.6 A DC Power Adaptor

• Operation Manual

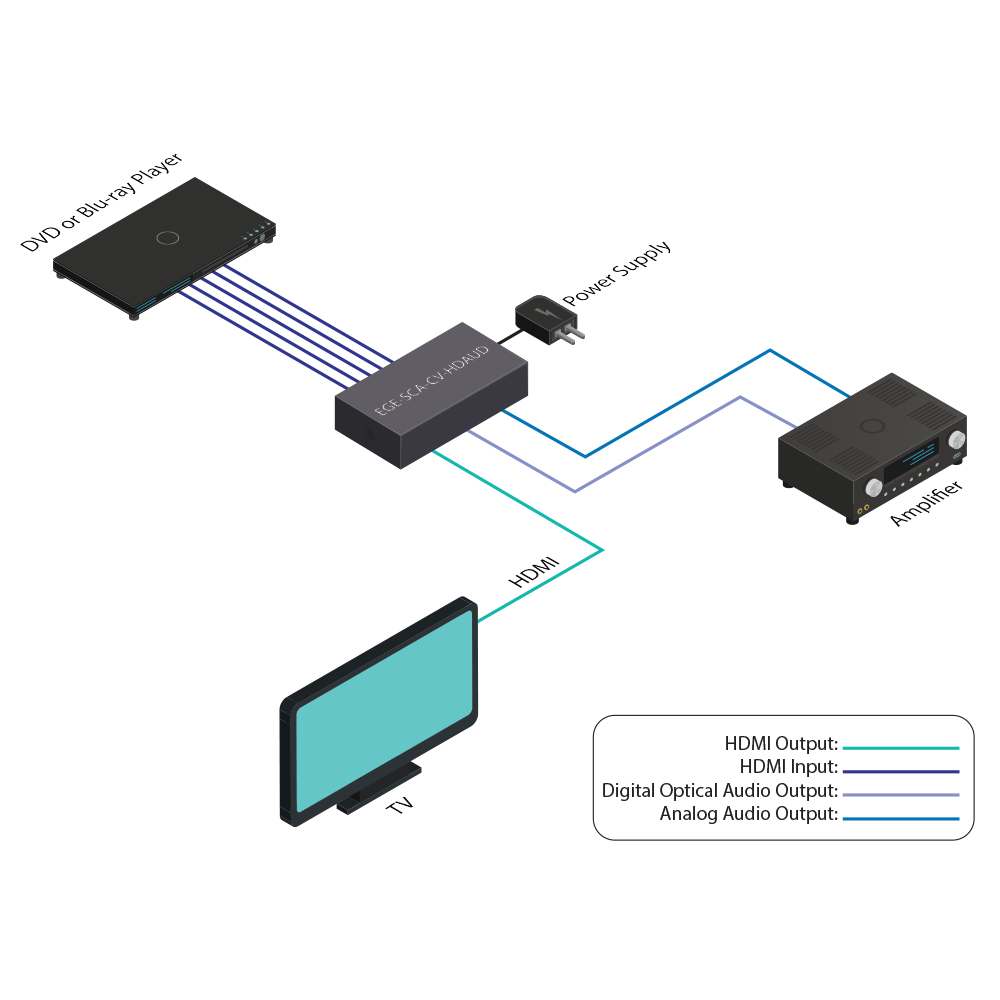

Diagrams

Dowloads

User Manual
Datasheet
