EGE-SCA-DDMDPVG-HD

Dual-link DVI/Mini Display Port/VGA to HDMI Scaler

Scaler Inputs: DVI-DL/mDP/VGA
Scaler Output: HDMI
Output Resolution 1080p

Categories: , ,
Brand:

Description

This HDMI Scaler can switch and convert Dual-link DVI, Mini DisplayPort and VGA/ Component Video inputs to an HDMI output, along with their associated audio signals. With the ability to scale a wide range of resolutions, the operation of all features can be easily handled through on-panel controls, IR remote control, or by RS-232 protocol.

Spesifications

  • Supports Dual-link DVI and Mini DisplayPort input resolutions up to 2560×1600@60Hz (RB), VGA up to 1920×1200@60/75Hz
  • Supports digital and analog audio bi-directional conversion, embedding and de-embedding for the audio signals from individual inputs
  • Supports Component Video input via D-sub 15-pin to 3 RCA phono adaptor up to 1080p@50/60Hz

Inputs

  • 1x DisplayPort [1x MDP Uncompressed AV]
  • 1x DVI-I [1x DUAL-LINK DVI DVI-D]
  • 1x 15-pin D-sub [1x PC/HD RGBHV / YCbCr Component]
  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
  • 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
  • 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]

PSU:

  • 5V/2.6A

Dimensions

  • 141mm [W] x 179mm [D] x 38mm [H]

Net Weight

  • 700gr

Box Contents

• 1×mDP/DVI-D/VGA to HDMI Scaler

• 1×Remote Control (CR-123)

• 1×5V/2.6A DC Power Adaptor

• 1×Operation Manual

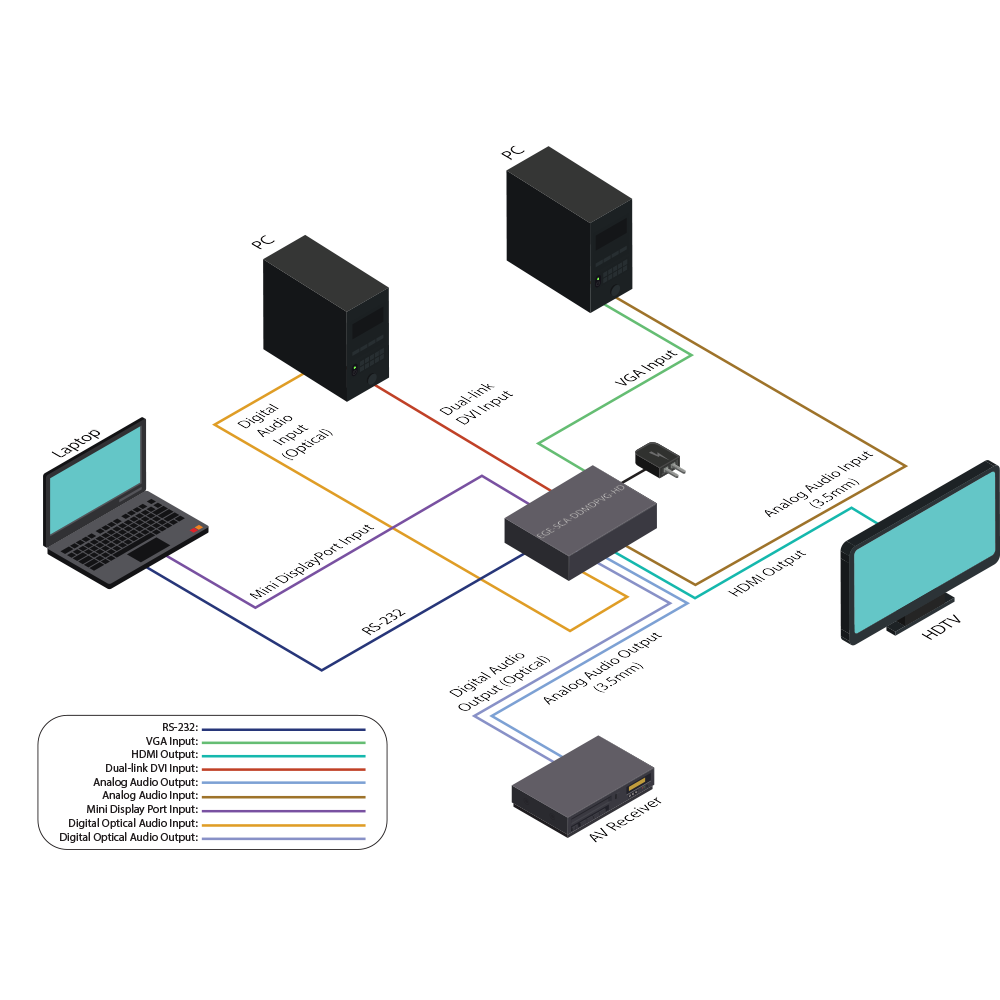

Diagrams

Dowloads

User Manual
Datasheet
