EGE-SCA-DVIVGCMP-HD

DVI/PC/Component Video to HDMI Scaler

Scaler Inputs: VGA/DVI with Audio
Scaler Output: HDMI
Output Resolution 1080p

Categories: , ,
Brand:

Description

This Scaler Box is design to display your PC/HD images on the LCDTV with better viewing image. It can upscale PC/DVI input sources to HDMI output for wide-range PC/ HD resolutions; PC/DVI/HD/HDMI Supports XGA/UXGA/720p/1080p. This unit allows user to select a variety of output resolutions/format, color space and adjust for the best picture quality. Further, it also transfer sounds through HDMI for users to enjoy both HD images and sounds consistently

Spesifications

  • Compatible with HDMI 1.3, HDCP 1.1 and DVI 1.0
  • Supports PC/HD input resolutions 480p-1080p50/60 and PC input resolutions: VGA-WUXGA
  • Supports DVI input resolutions: VGA-WUXGA
  • Scales input resolutions to XGA/UXGA/720p/1080p resolutions
  • Supports convertion from VGA and DVI to HDMI output
  • Transfer L/R and coaxial sounds to HDMI
  • Input and output selection buttons for easy usage
  • Supports Component Video input via D-sub 15-pin to 3 RCA phono adaptor

Inputs

  • 1x DVI-I [1x DVI-I]
  • 1x 15-pin D-sub [1x PC/HD RGBHV / YCbCr Component]
  • 1x RCA [1x COAX 2 Channel LPCM]
  • 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]

PSU:

  • 5V/2.6A

Dimensions

  • 160mm [W] x 102mm [D] x 25mm [H]

Net Weight

  • 332gr

Box Contents

• HD/PC/DVI/HDMI to HDMI/DVI Scaler Box

• Power adaptor

• Operation Manual

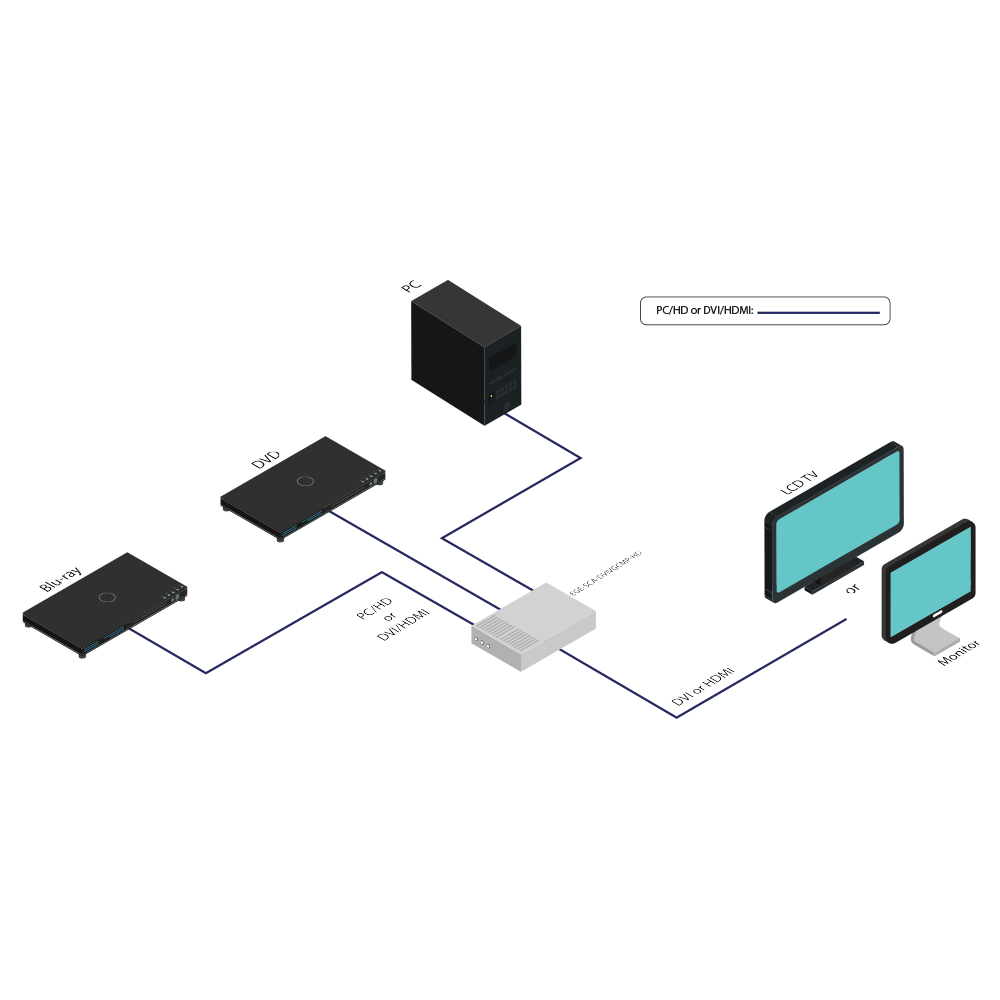

Diagrams

Dowloads

User Manual
Datasheet
