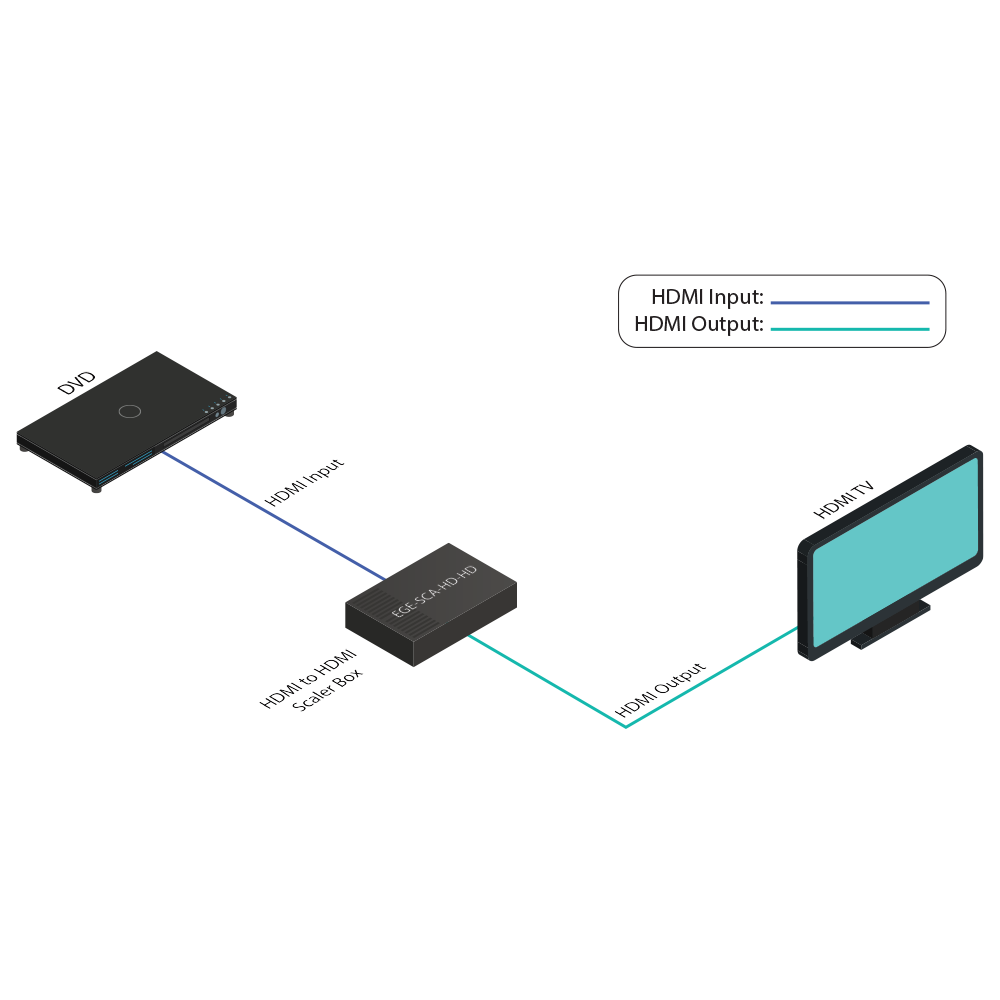

Diagrams
EGE-SCA-HD-HD
HDMI to HDMI Scaler
HDMI to HDMI Scaler
3.5mm and Optical Audio Input/Output
Output Resolution 1080p
Description
This is a compact yet versatile HDMI to HDMI Scaler Box. It accepts HDMI input with a separate Toslink or analog audio and scale it to HDMI output (at a number of selectable resolutions) with additional Toslink and analog audio output. This Scaler Box has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality. It is ideal for using between incompatible HDMI source and display by changing picture resolution and frame rate of HDMI source to match the native resolution of the HDMI display
Spesifications
The HDMI to HDMI Scaler is designed to upscale an HDMI video signal from an HDMI source. Output resolution can be up to 1080p/WUXGA. This unit can also convert a digital/analog audio signal and then simultaneously output to an HDMI, Optical and 3.5mm Mini-jack (L/R audio) connections. This unit has a comprehensive OSD menu that allows the user to select a variety of output resolutions, the conversion of the video signal to maximize compatibility, and make adjustments to optimize the image quality.
Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
- 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
- 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
PSU:
- 5V/2.6A
Dimensions
- 102mm [W] x 155mm [D] x 25mm [H]
Net Weight
- 338gr
Box Contents
• 1 x HDMI to HDMI Scaler
• 1 x 5 V/2.6 A DC Power Adaptor
• Operation Manual
