EGE-SCA-MI-HDSDI

Multi-Input to HDMI Scaler with SDI Loop Output

Scaler Inputs: HDMI/3G-SDI/VGA/Component Video/CV/SV
Scaler Output: HDMI/VGA with 3G-SDI Loop
Output Resolution 1080p

Categories: , ,
Brand:

Description

This unit is an advanced HDMI, VGA, SDI, Composite Video, S-Video, and Component Video switcher/scaler. This device can scale and switch input sources and display them to its HDMI and PC (VGA)/HD (Component Video) outputs simultaneously, with their associated audio signals, at a wide range of output resolutions up to 1080p or WUXGA (RB). It also has the added benefit of an SDI Loop-through output for monitoring or extending the SDI input signal. Control is via the IR remote, RS-232, or via front-panel buttons and includes an on-screen menu (OSD) providing settings and system information.

Spesifications

  • Supports HDMI, Composite Video, S-Video, PC (VGA)/HD (Component) and SDI inputs
  • Supports HDMI and VGA/Component (with adaptor) or SDI loop through outputs
  • Supports analog stereo, optical and coaxial digital inputs and optical digital output, analog stereo output or embedding to HDMI output
  • Supports conversion of multiple video formats and audio input to HDMI or PC/HD and analog stereo outputs
  • Supports EDID and HDCP
  • Supports 3D de-interlacing, noise reduction and 3D comb filter
  • Supports frame rate conversion
  • Control scaler via RS-232, remote handset, and front panel control
  • Supports SDI Standards of SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
  • Supports SDI bit rates at 2.970 Gb/s, 2.970/1.001 Gb/s, 1.485 Gb/s,
  • 1.485/1.001 Gb/s and 270 Mb/s
  • Supports SDI signal input and output distances up to 300m for SD signals, 200m for HD signals and 100m for 3G signals

Inputs

  • 1x BNC [1x 3G-SDI]
  • 2x HDMI [2x Uncompressed AV and Data]
  • 1x 15-pin D-sub [1x RGBHV]
  • 1x RCA [1x Composite Video]
  • 1x S-Video [1x S-video]
  • 3x RCA [1x YPbPr Component]
  • 6x RCA [3x Stereo (L/R)]
  • 1x TOSLINK [1x 2 Channel LPCM]
  • 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
  • 1x 9-pin D-sub [1x RS-232 Data]
  • 1x USB Mini-B [1x Propriety Data]
  • 1x 3.5mm Stereo Mini-jack [1x Service Port]

Outputs

  • 1x BNC [1x 3G-SDI]
  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x 15-pin D-sub [1x RGBHV]
  • 1x TOSLINK [1x 2 Channel LPCM]
  • 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]

PSU:

  • 5V/3A

Dimensions

  • 320mm [W] x 182mm [D] x 44mm [H]

Net Weight

  • 1600gr

Box Contents

• 1×Multi-Format to HDMI Scaler

• 1×Remote Control (CR-117)

• 1×5V/3A DC Power Adaptor

• 1×15-pin D-sub to 3 RCA Adaptor Cable

• 1×Operation Manual

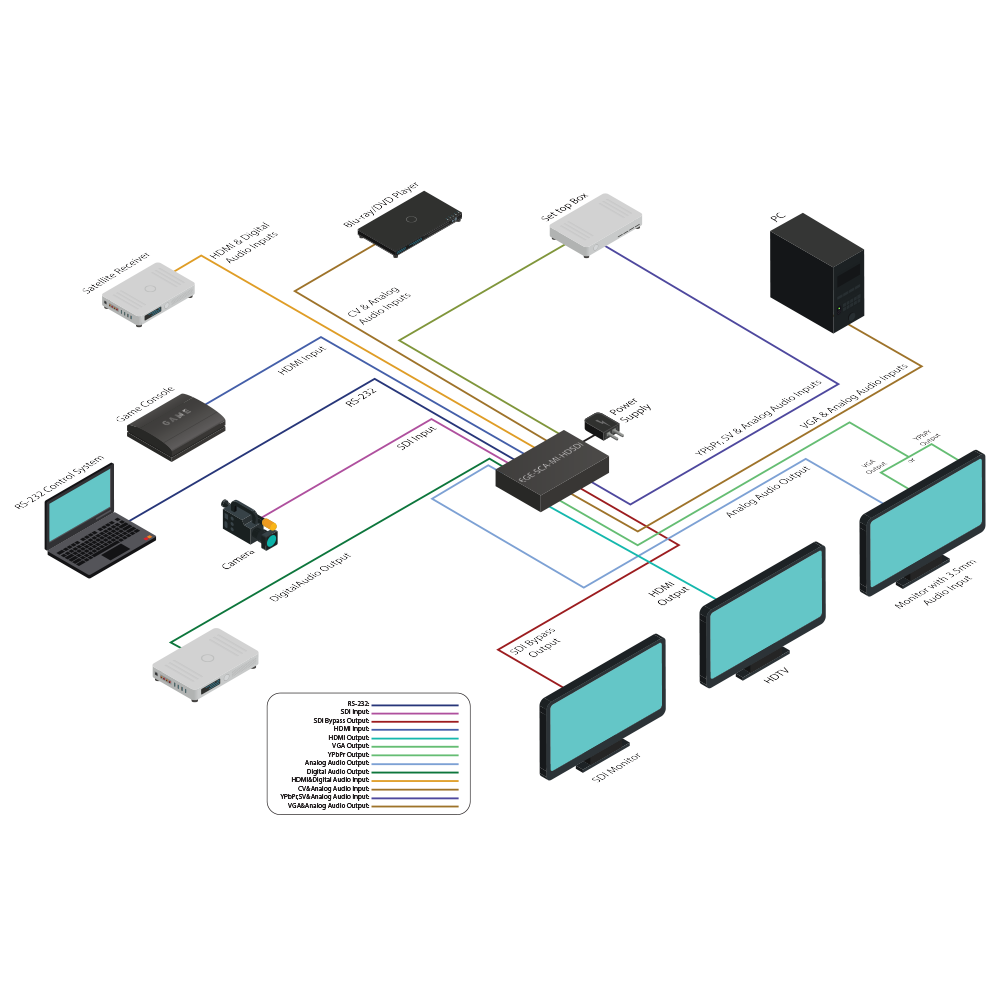

Diagrams
