4 2 SDI to HDMI Seamless Switcher/Multiviewer with PIP

4×2 SDI to HDMI Seamless Switcher

Categories: , , ,
Brand:

Description

The 4 by 2 SDI to HDMI Seamless Quad PIP Splitter is a high performance, high speed zooming/shrinking system that can be easily configure and control for quad or picturein-picture video processing. Allowing 4 different SDI input sources to be freely selected and arranged on to HDMI displays with total of 8 different types of settings. Supporting resolution up to WUXGA@60RB, 1080p and audio up to 8CH with sampling rate 48kHz for both inputs and outputs. Screen setting hot keys, OSD, RS-232 and Telnet allows instant control and switching on the output displays.

Spesifications

  • HDMI output compatible with DVI
  • Combine four SDI sources into a single HDMI signal and simultaneously output to two HDMI displays
  • Seamless switching between channels and windows
  • Zoom, shrink or overlay the 4 input images
  • Supports PIP (Picture-in-Picture), POP (Picture-out-of-Picture) and multi-window display
  • Supports OSD (on-screen display), RS-232, IR remote control and on-panel controls
  • Supports fade in/fade out, chromakey, mirror and rotation functions
  • Supports 8 preset hot keys and extra 4 customized favorite screen setting
  • Supports individual channel size and position adjustment
  • Supports SDI standards: SMPTE 259M-C@270Mbit/s, SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s, and SMPTE 424M/425M-A@2.970Gbit/s &2.970/1.001Gbit/s
  • Supports SDI to HDMI signal conversion: SD-SDI to 480i/576i, HD-SDI to 720p/1080i and 3G-SDI to 1080p/1080PsF
  • Supports HDMI output resolutions: 480i, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, and 1080PsF@23.98/24/25/29.97/30Hz

Inputs

  • 4x BNC [4x 3G-SDI / HD-SDI / SD-SDI]
  • 1x 9-pin D-sub [1x RS-232 Data]
  • 1x RJ45 [1x IP Control]
  • 1x USB Type A [1x SERVICE Propriety Data]

Outputs

  • 2x HDMI [2x Uncompressed AV and Data]

PSU:

  • 12V/3A

Dimensions

  • 482mm [W] x 274mm [D] x 52mm [H]

Net Weight

  • 2976g

Box Contents

• 1×4 by 2 SDI to HDMI Seamless Splitter

• 1×Remote Control (CR-124)

• 1×12V/3A DC Power Adaptor

• 1× Rack Ear Sets

• Operation Manual

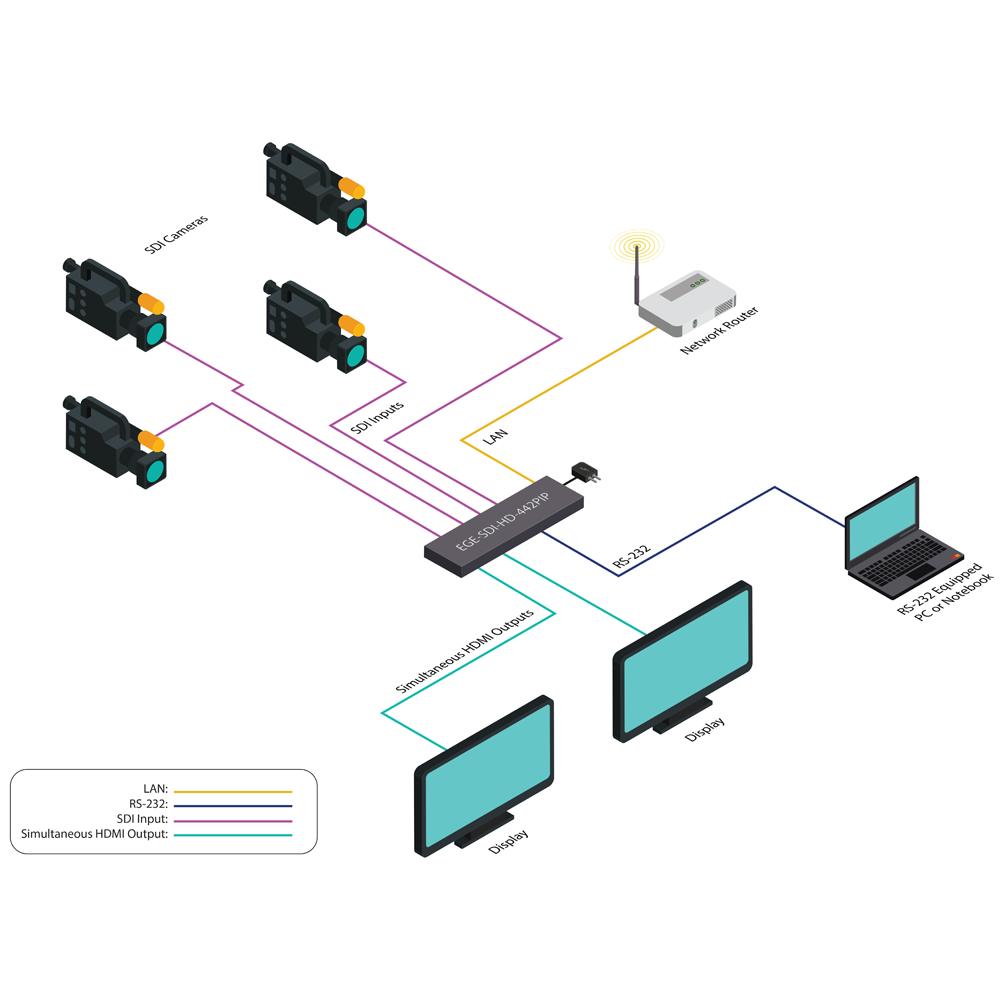

Diagrams
