EGE-SDI2-HC

3G-SDI to HDMI/3G-SDI Video Converter

3G-SDI to HDMI Converter
1080p@60Hz

Categories: , ,
Brand:

Description

The SDI to HDMI Converter allows SD, HD and 3G-SDI signals to be shown on HDMI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on HDMI displays. Furthermore, thanks to L/ R audio outputs users can output audio in analog formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on both SDI and HDMI displays.

Spesifications

  • Auto-detects SD-SDI, HD-SDI and 3G-SDI input signals
  • Supports HDMI and SDI (bypass) outputs simultaneously
  • Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mbit/s:
    • 3G-SDI supports SMPTE 424M/425M-A@2.970Gbit/s & 2.970/1.001Gbit/s
    • HD-SDI supports SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s
    • SD-SDI supports SMPTE 259M-C@270Mbit/s
  • Converts SDI format to HDMI:
    • 3G-SDI (SMPTE 424M/425M-A) to 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080PsF@23.98/24/25/29.97/30Hz
    • HD-SDI (SMPTE 292M) to 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz
    • SD-SDI (SMPTE 259M-C) to 480i/576i
  • Equalized and re-clocked loop output
  • Alternative audio output to coaxial and analog 2CH
  • Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Inputs

  • 1x BNC [1x 3G-SDI / HD-SDI / SD-SDI]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x BNC [1x Loop Through 3G-SDI / HD-SDI / SD-SDI]
  • 2x RCA [1x Stereo (L/R)]

PSU:

  • 5V/2.6A

Dimensions

  • 137mm [W] x 90mm [D] x 25mm [H]

Net Weight

  • 225g

Box Contents

• 3G SDI to HDMI Extender

• 5V/2.6A DC power adaptor

• Operation Manual

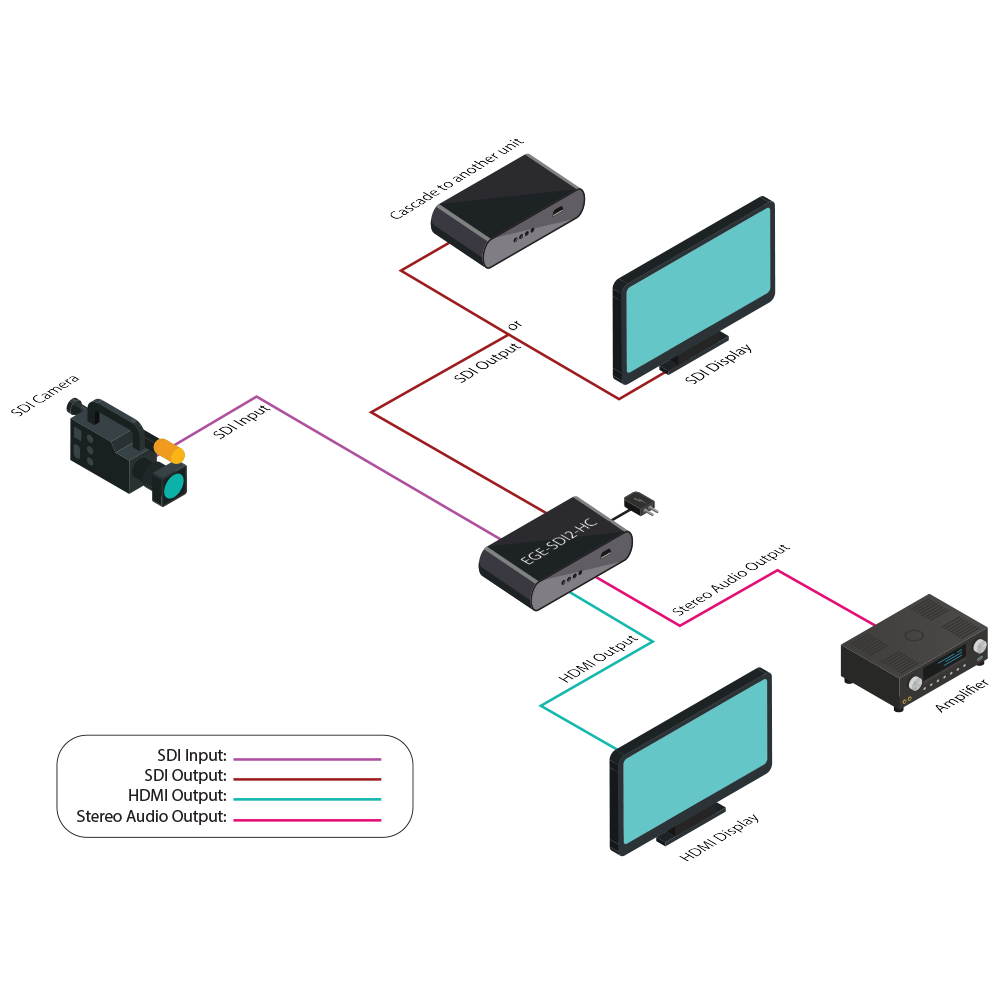

Diagrams

Dowloads

User Manual
Datasheet
