Description
This product is a high performance 1X16 splitter, It supports 4Kx2K signal input and split to 16 HDMI ports. The splitter support EDID control, so that can force the source output definitions you want.
EGE-SP116-4K
1×16 HDMI Splitter
1×16 HDMI Splitter
4Kx2K@60Hz(YUV 4:2:0)
HDCP, EDID Management
Spesifications
Split 1 HDMI input signal to 16 HDMI sink devices.
Definition resolution supports up to 4K*2K@30Hz@8bit(YCbCr4:4:4) ;
4K*2K@60Hz@8bit(Cr4:2:0)
Support digital audio format, DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
Support EDID selector.
Box Contents
1 x HDMI 1×16 Splitter 1x 12V2.5A DC Power adapter 1 x Operation Manual

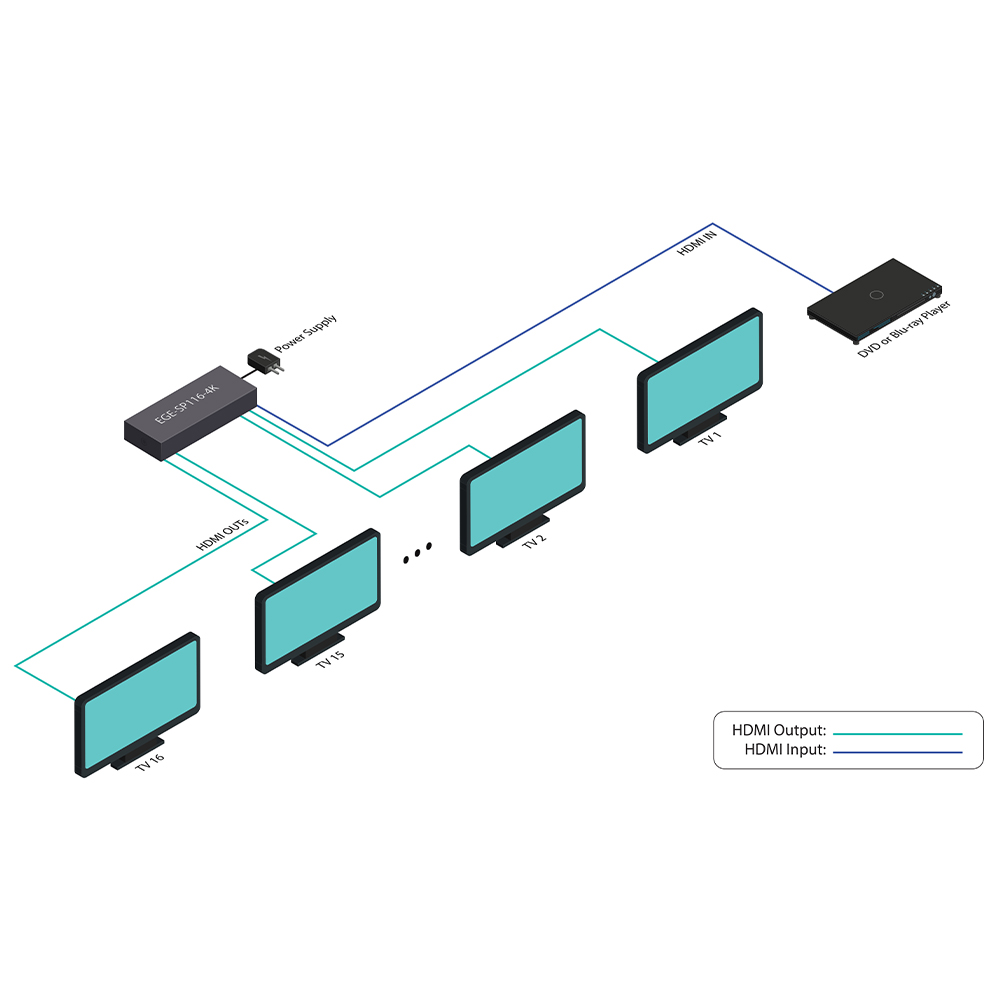

Diagrams
Dowloads
User Manual
Datasheet
