EGE-SPDF-144

1×4 Optical Audio Splitter

1×4 Optical Audio Splitter

Description

The 1 by 4 Optical Audio Splitter has one optical input and four optical outputs that allow users to share one optical source to output onto four optical sound systems. A simple and easy to use tool for expanding single optical signal to multiple areas

Spesifications

  • Supports LPCM 2CH audio signal (sampling rates up to 192kHz)
  • Supports Dolby Digital and DTS 2/5.1CH audio signals bypass
  • Supports S/PDIF sampling rates from 32 kHz to 192kHz
  • Low power consumption

Inputs

  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM / Dolby Digital / DTS]

Outputs

  • 4x TOSLINK [4x OPTICAL 2 Channel LPCM / Dolby Digital / DTS]

PSU:

  • 5V/1A

Dimensions

  • 34mm [W] x 85mm [D] x 85mm [H]

Net Weight

  • 90gr

Box Contents

• 1 by 4 Optical Audio Splitter

• 5V Power Adaptor

• Operation Manual

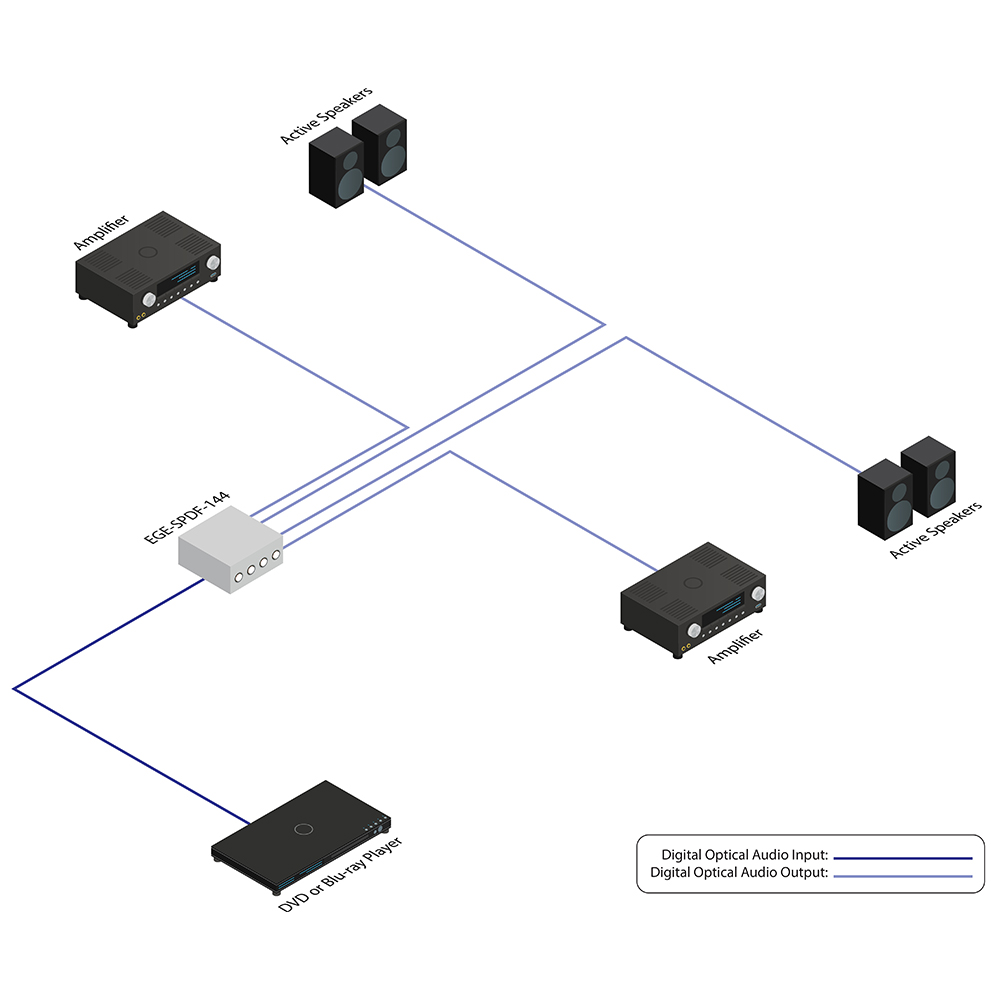

Diagrams
