EGE-UHD-1042FS

10×2 HDMI 4K UHD Matrix Fast Switching

10×2 HDMI Fast Switch Matrix
EDID function/ IR/ RS-232
4K2K@60Hz ( YUV 4:2:0)

Categories: , ,
Brand:

Description

This 10 by 2 HDMI UHD Matrix is an advanced solution for switching up to 10 HDMI inputs to two HDMI outputs. It provides high performance pass-through of video/audio and is capable of receiving and transmitting 300MHz/9Gbps bandwidth rate with no data loss. It’s Fast Switching technology can greatly reduce the time required to swap between inputs. Supporting the latest features you can be assured of reliable and high quality HDMI distribution

Spesifications

  • Supports UHD resolutions up to 4K2K@24/25/30Hz & 4K2K YUV420@60Hz
  • Supports HDTV resolutions up to 1080@60Hz, ‘Deep Color’ 36/30/24-bit and PC resolutions up to WUXGA@60Hz(RB)
  • Supports 3D
  • Supports pass-through of audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • Supports EDID option function
  • Supports control via IR, RS-232, Telnet and WebGUI
  • Input port HDCP support Standard and Apple mode (The Apple mode selection to guarantees the use of Apple tools)
  • Coherent with DVI source

Inputs

  • 10x HDMI [10x Uncompressed AV and Data]
  • 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
  • 1x 9-pin D-sub [1x RS-232 Data]
  • 1x RJ45 [1x IP Control]
  • 1x USB Type A [1x SERVICE Propriety Data]

Outputs

  • 2x HDMI [2x Uncompressed AV and Data]

PSU:

  • 5V/2.6A

Dimensions

  • 482mm [W] x 276mm [D] x 52mm [H]

Net Weight

  • 2854gr

Box Contents

• 10 By 2 HDMI Matrix Fast Switch

• 1 x IR Extender

• 1 x Remote Control with Battery

• 1 x 5V/2.6A Power Adaptor

• 1 x Left & Right Ear Racks

• Operational Manual

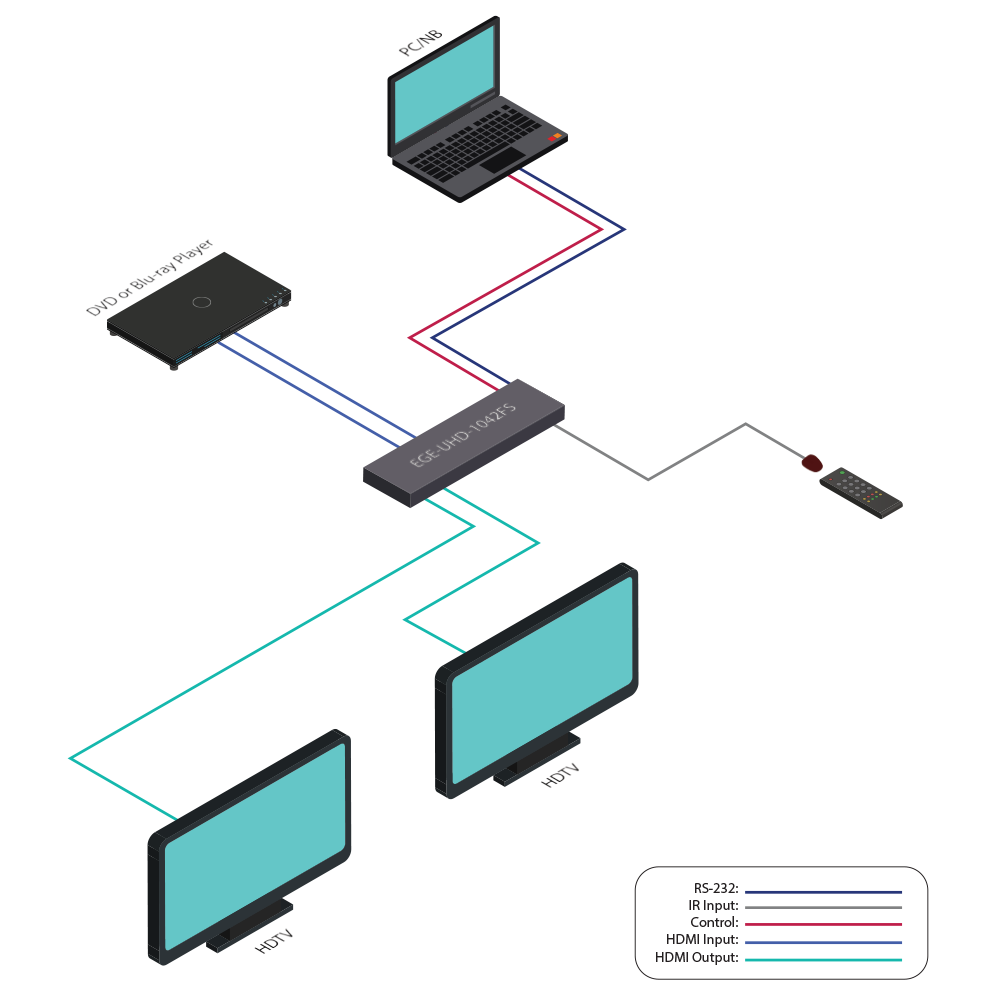

Diagrams
