EGE-UHD-148
EGE-UHD-148 - Image 2
EGE-UHD-148 - Image 3

EGE-UHD-148

1 8 4K UHD HDMI Splitter with System Reset

1×8 HDMI Splitter
3D Support
Resolution 4K2K

Categories: , ,
Brand:

Description

This range of high performance HDMI splitters provide one HDMI in to eight HDMI outputs and support 4Kx2K, 3D, 12-bit Deep Coloer as well as High definition Lossless Audio. With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution.

Spesifications

  • Supports HDTV resolutions up to 4K2K@30 Hz
  • Supports 1080p@60Hz, Deep Color 12-bit
  • Compatible with HDMI and DVI
  • Supports digital audio formats: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
  • 3D Support
  • Supports System EDID and reset functions

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 8x HDMI [8x Uncompressed AV and Data]

PSU:

  • 5V/3A

Dimensions

  • 436mm [W] x 166mm [D] x 49mm [H]

Net Weight

  • 884gr

Box Contents

• 1 x 1 by 8 HDMI Splitter

• 1 x 5V DC Power Supply Adaptor

• Operation Manual

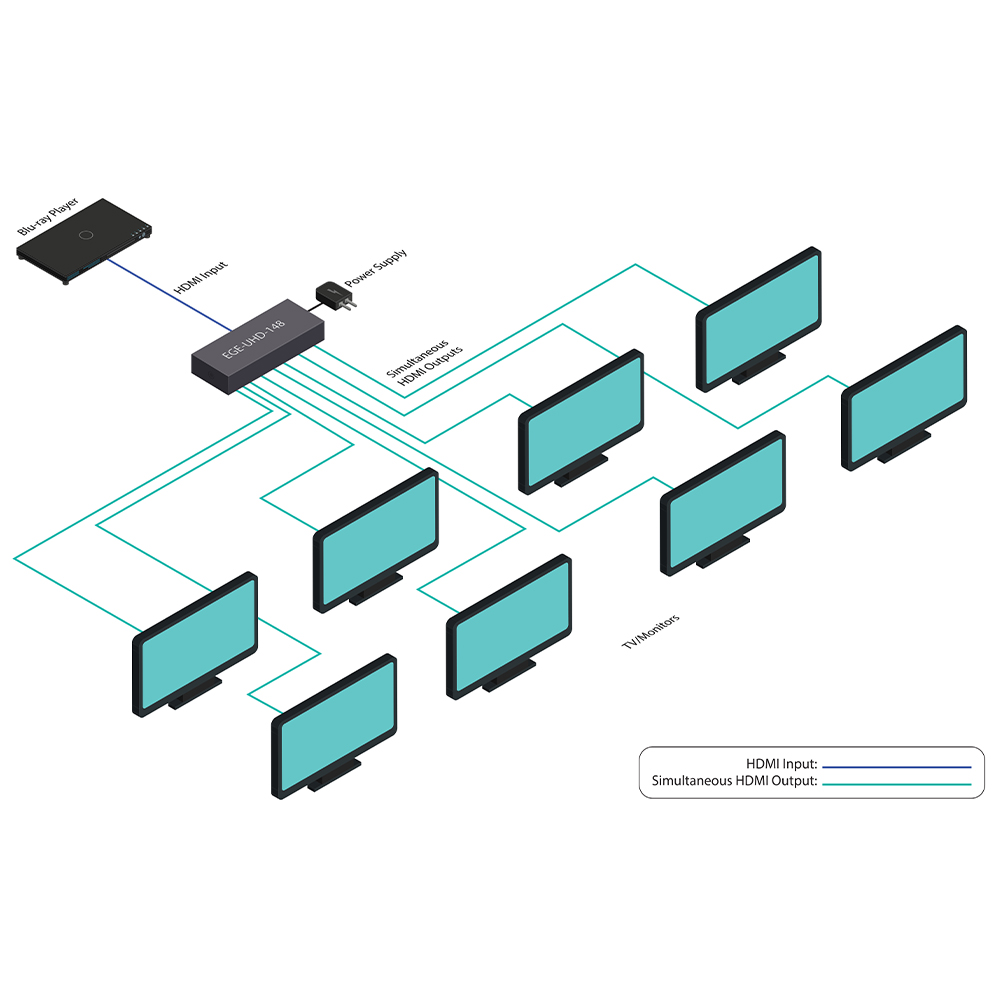

Diagrams

Dowloads

User Manual
Datasheet
