EGE-UHD-2DD-UHDAUD

HDMI Audio Converter with Dolby Digital and DTS 2.0+Digital Out Decoder

HDMI 4K to Digital/Analog Audio Converter

Categories: , ,
Brand:

Description

The HDMI Audio Converter with Dolby® Digital and DTS® 2.0+Digital Out Decoder allows the audio signal from an HDMI input to be deembedded, downmixed and simultaneously output to both digital (optical or coaxial) and analog audio outputs. This unit allows you to utilize an additional audio output such as an AV receiver or set of active speakers, or to further extend the audio signal pathway.

Spesifications

  • Dolby Digital Decoder technology embedded
  • DTS 2.0+Digital Out Decoder technology embedded
  • Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)
  • Supports LPCM input sampling rate up to 96kHz and 2-CH output at 48kHz
  • Support Dolby® Digital/DTS® sampling rate up to 48kHz
  • Supports simultaneous audio outputs on HDMI, analog R/L, Coaxial and Optical
  • HDMI (with 3D & 4K2K supported) and HDCP compliant
  • Supports HDTV resolutions up to 4Kx2K (3840×2160@24/25/30, 50/60 YUV_420 & 4096×2160@24, 50/60 YUV_420)
  • Supports HDMI data rate from 300Mbps to 3Gbps and ‘Deep Color’ up to 1080p/36-bit

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x TOSLINK [1x Optical 2 Channel LPCM]
  • 1x RCA [1x Coaxial 2 Channel LPCM]
  • 2x RCA [1x Stereo (L/R)]

PSU:

  • 5V/2.6A

Dimensions

  • 180mm [W] x 110mm [D] x 25mm [H]

Net Weight

  • 368g

Box Contents

• HDMI Audio Converter with Dolby Digital and DTS 2.0+Digital Out Decoder

• 5 V/2.6 A Power Adaptor

• Operation Manual

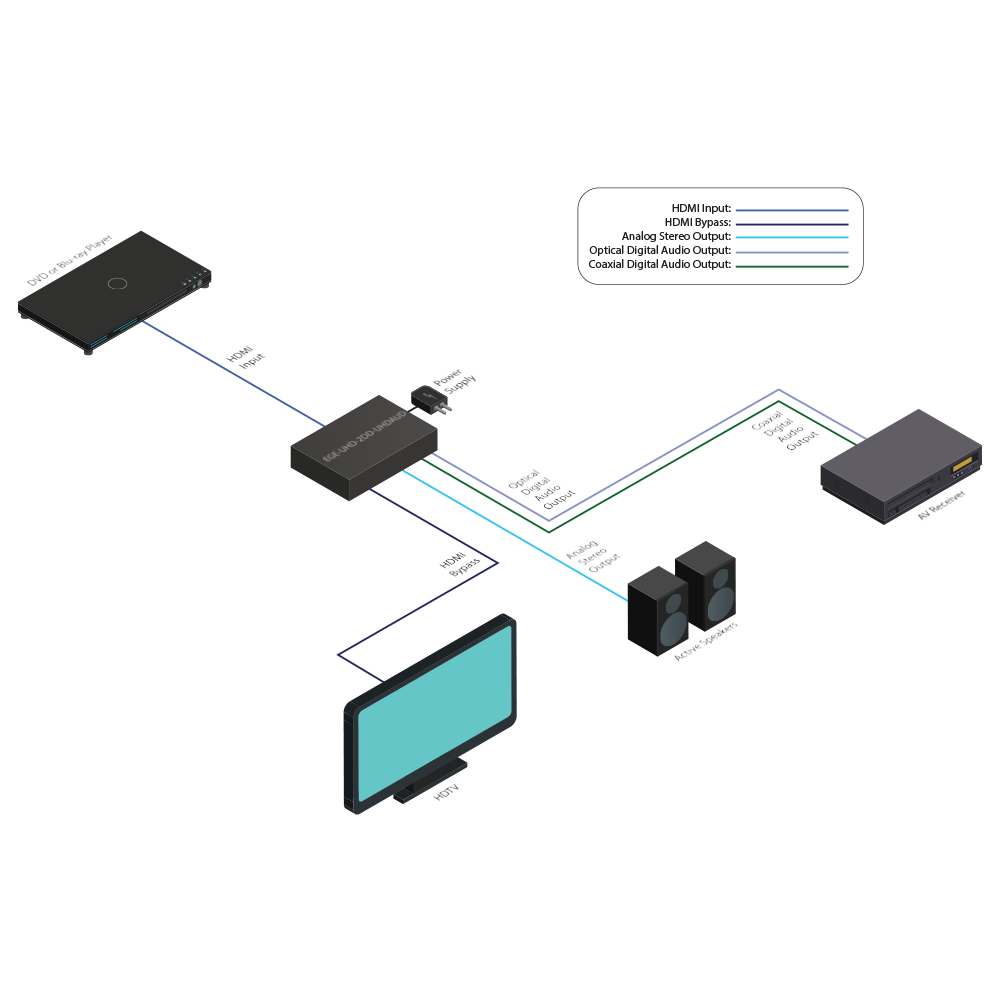

Diagrams
