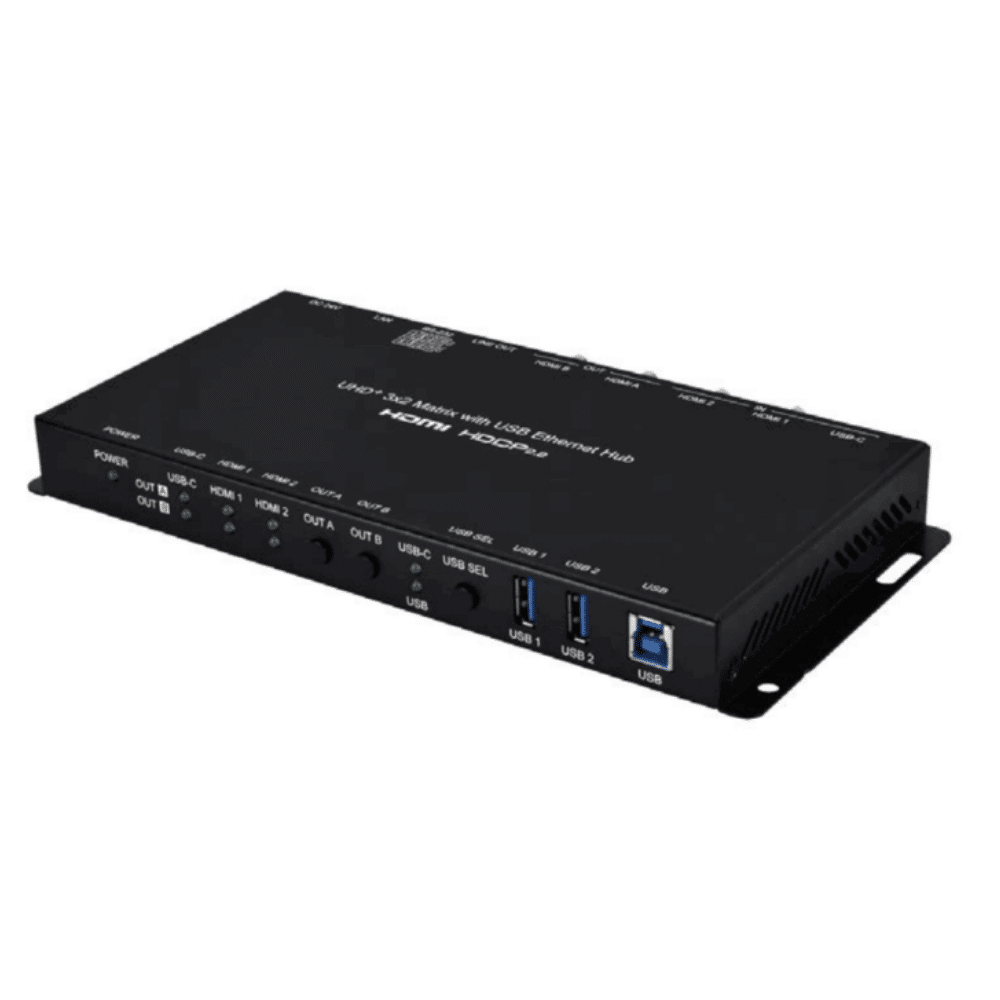

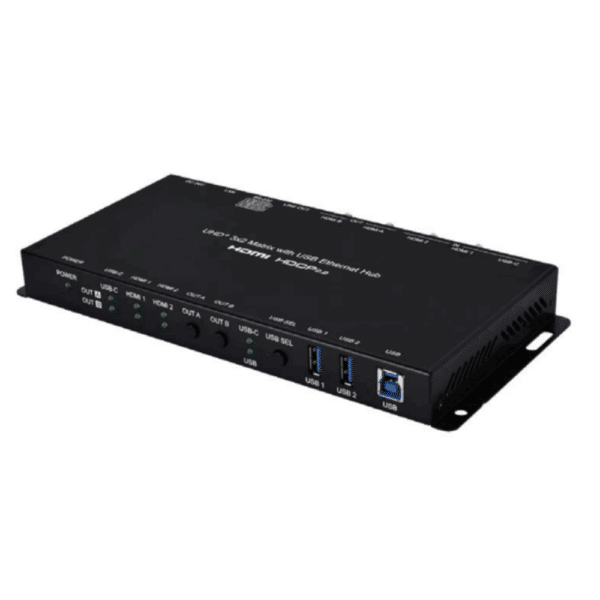

EGE-UHD-332C

EGE-UHD-332C

This 3×2 matrix switch is designed for use in environments needing a wide range of flexibility when it comes to

Categories: , , Brand:

Description

This 3×2 matrix switch is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The two most common video input interfaces (HDMI, USB-C) are included along with a pair of HDMI outputs and a single analog audio breakout port, providing the ultimate in source compatibility and flexibility. All inputs and outputs on this unit are HDCP 2.2 compliant and provide support for resolutions up to a maximum of 4K\@60Hz (4:4:4, 8-bit or 4:2:0, 12-bit HDR). The included USB-C input complies with the USB 3.0 standard and supports audio/video bypass, and device charging, as well as the ability to provide a network connection. This matrix also includes standard USB 3.0 hub functionality with two host ports (one Type-B and one Type-C), plus two device ports (Type-A) for a flexible KVM configuration. It is ideal for use in meeting rooms or classrooms. This unit is controllable via front panel controls, WebGUI, Telnet and RS-232.

Specifications

  • HDMI 2.0 and DVI 1.0 compliant

  • HDCP 1.x and 2.2 compliant

  • 1 USB Type-C and 2 HDMI inputs

  • 2 HDMI outputs with independent matrix switching and auto-switch support

  • Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output

  • Supports Deep Color input and output up to 12-bit

  • Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output

  • Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream

  • HDMI Output A supports 4K to 1080p downscaling

  • USB-C port functionality is switchable between:

    • A/V focused mode (4K@60Hz) with USB 2.0 data

    • Mixed media mode with simultaneous A/V (4K@30Hz), USB 3.0, and Ethernet support

  • USB-C port provides up to 20V/3A (60W) power to the connected device

  • Supports pass-through of 8 channel LPCM, bitstream, and HD bitstream audio formats

  • Analog audio output source audio can be from output A or B (LPCM 2.0 sources only)

  • Integrated USB 3.0 hub with:

    • One dedicated Type-B host port

    • Two Type-A device ports

    • (USB-C port may optionally be used as an alternate host port)

  • Supports basic signal event automation (via RS-232, Ethernet, or CEC)

  • Controllable via front panel controls, WebGUI, Telnet, and RS-232

Box Contents

  • 1× UHD+ 3×2 Matrix Switcher with USB Ethernet Hub
  • 1× 24V/5A DC Power Adapter
  • 1× Shockproof Feet (Set of 4)
  • 1× Operation Manual

Diagrams

.

Downloads

User Manual and Datasheet
