EGE-UHD-444A

4x4 HDMI 4K UHD and Audio Matrix

4×4 HDMI and Audio Matrix
EDID function
4K2K@60Hz (YUV 4:2:0)

Categories: , ,
Brand:

Description

The 4 by 4 HDMI matrix with audio which allows HDMI and audio signal to be routed to and displayed on connected HDMI displays and or audio output equipments simultaneously. Additional audio selection and extension allows users to utilise both video and audio more efficiency. With fast switching technology the device can greatly eliminate the time required by swapping or turning ON/OFF the connected displays. It supports 4Kx2K, 3D, 36-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote control, RS-232 or Ethernet protocol

Spesifications

  • HDMI with 3D & 4Kx2K supported, coherent with HDCP and DVI
  • Supports four HDMI inputs and four HDMI outputs
  • Supports external audio inputs and outputs for HDMI outputs selection and extra audio extension up to 300 meters
  • Supports HDMI and Optical audio format for both HDMI and Optical outputs selection
  • Support personal output MUTE function on both video and audio
  • Displays any of four High-Definition sources on four HDTV displays contemporaneously with fast switch
  • 3D pass-through
  • Supports HDTV resolutions up to 4Kx2K (3840×2160@24/25/30 & 50/60 Y420 4096×2160@24 & 50/60Hz Y420)
  • Supports data rate up to 300Mbps or 9Gbps and Deep Color up to 1080p 36-bit
  • Supports individual EDID or common EDID
  • Supports LPCM 2CH with selection up to 192kHz
  • Input port HDCP support Standard and Apple mode (The Apple mode selection to guarantees the use of Apple tools)

Inputs

  • 4x HDMI [4x Uncompressed AV and Data]
  • 2x TOSLINK [2x OPTICAL 2 Channel LPCM / Dolby Digital / DTS]
  • 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
  • 1x 9-pin D-sub [1x RS-232 Data]
  • 1x RJ45 [1x IP Control]
  • 1x USB Type A [1x SERVICE Propriety Data]

Outputs

  • 4x HDMI [4x Uncompressed AV and Data]
  • 2x TOSLINK [2x OPTICAL 2 Channel LPCM / Dolby Digital / DTS]
  • 2x RJ45 [2x Digital Audio Propriety Data]

PSU:

  • 12V/3A

Dimensions

  • 482mm [W] x 278mm [D] x 50mm [H]

Net Weight

  • 2936gr

Box Contents

• 4 by 4 HDMI 4Kx2K Matrix with Audio

• Remote Control with Battery

• Left & Right Rack Ears

• 12V/3A DC Power Adaptor

• IR Receiver Cable

• Operation Manual

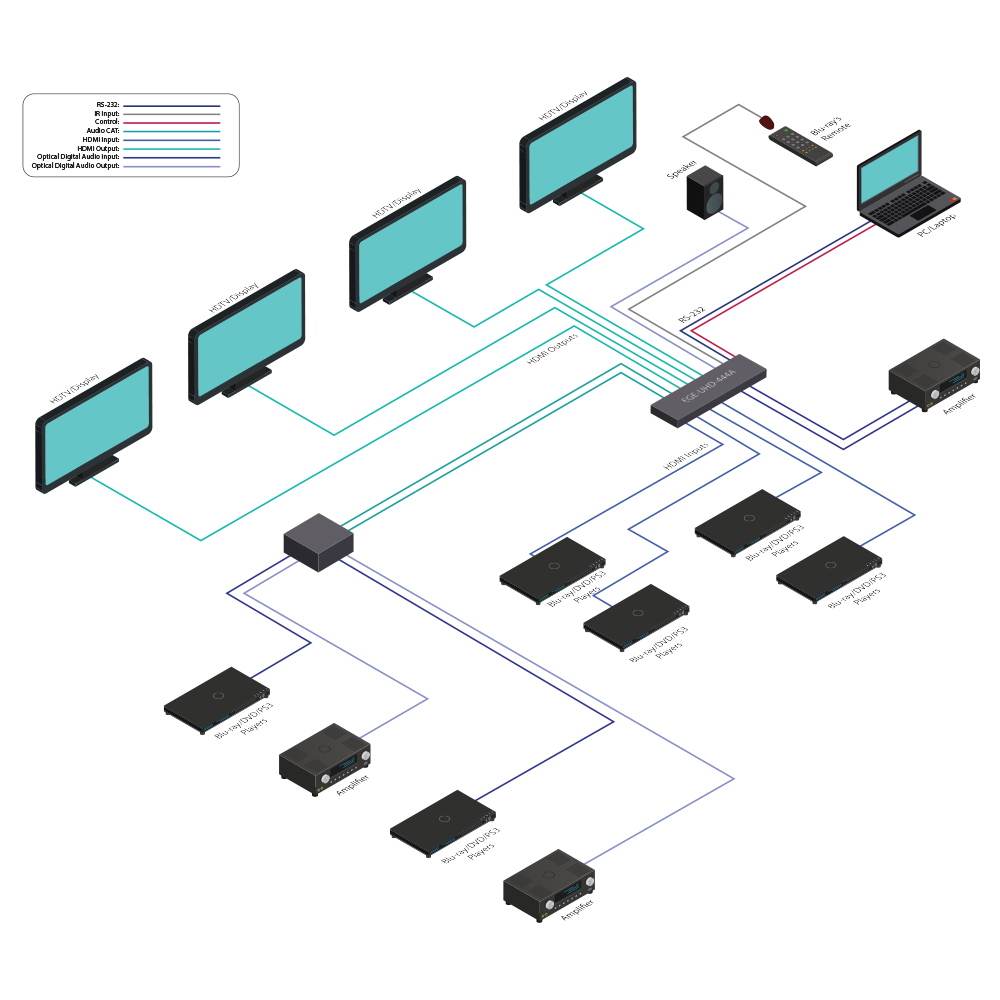

Diagrams

Dowloads

User Manual
Datasheet
