EGE-UHD-4HDB-848L

8 8 4K UHD HDMI over CAT5e/6/7 60m, Matrix with 24V PoC,Light Version

8×8 HDMI over HDBaseT Matrix
Resolution 4K2K 30Hz
24V PoC / IR / Light Version

Categories: , ,
Brand:

Description

The 4K2K 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD), multi-channel digital audio and control via IR, RS 232, Telnet or Web GUI from eight high definitionsources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source.

Spesifications

  • Compatible with HDMI, HDCP 1.1
  • Supports resolutions VGA-WUXGA, 4K2K@24/25/30 & YUV_420 and 480i-1080p depends on the output display’s EDID settings
  • Distance up to 60 meters over CAT6/7 cables
  • Supports 3D signal display depends on the output display EDID settings
  • Supports PoC (Power over Cable) on compatible receivers only
  • HDMI Input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution
  • Supports bi-directional IR from input and output locations
  • RS-232 control
  • Remote control, on-panel control and IP Control (Telnet & Web GUI)
  • Supports external and internal EDID settings
  • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

Inputs

  • 8x HDMI [8x Uncompressed AV and Data]
  • 8x 3.5mm Stereo Mini-jack [8x Infrared Receiver]
  • 1x 3.5mm Stereo Mini-jack [1x IR ALL Infrared Receiver]
  • 1x RJ45 [1x IP Control]
  • 1x 9-pin D-sub [1x RS-232 Data]
  • 1x USB Mini-B [1x SERVICE Proprietary Data]

Outputs

  • 8x RJ45 [8x HDMI & Proprietary Data]
  • 8x 3.5mm Stereo Mini-jack [8x Infrared Emitter]
  • 1x 3.5mm Stereo Mini-jack [1x IR ALL Infrared Emitter]

PSU:

  • 24V/6.25A

Dimensions

  • 438mm [W] x 249mm [D] x 93mm [H]

Net Weight

  • 4402gr

Box Contents

• 4K2K 8×8 HDMI Matrix over CAT5e/6/7 • 9×IR Blaster

• 1×24 V/6.25 A DC Power Adaptor

• 2×Power Cable

• 1×IR Remote Control

• Operation Manual

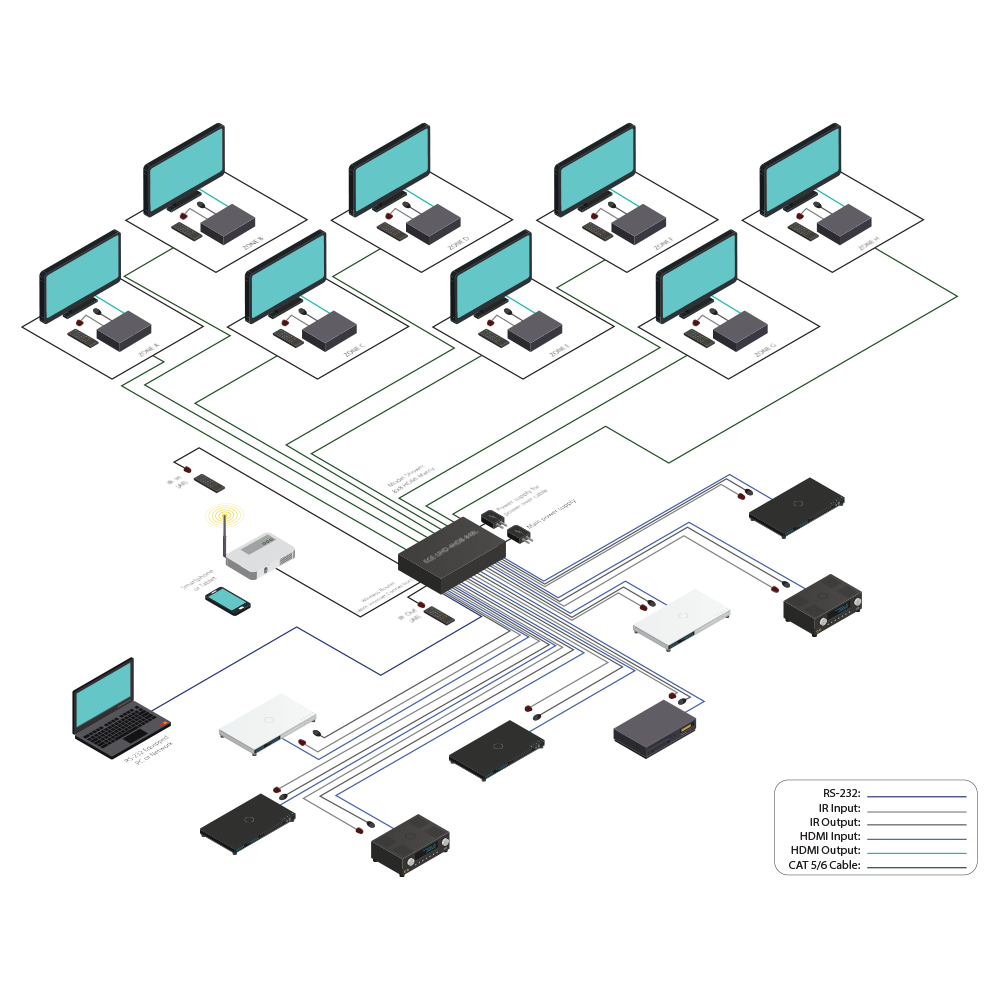

Diagrams
