8 8 4K UHD HDMI over CAT5e/6/7 100m Matrix with PoC, IR, LAN Serving

8X8 HDMI over HDBaseT Matrix
Resolution 4K2K
24V PoC, IR and LAN Serving

Categories: , ,
Brand:

Description

The 4K2K 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definitionsources to eight outputs over a single CAT5e/6/7 cable (up to 100m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations

Spesifications

  • Compatible with HDMI, HDCP 1.1
  • Supports resolutions VGA-WUXGA and 480i-1080p/4K2K depends on the output display’s EDID settings
  • Supports 3D signal display depends on the output display EDID settings
  • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports distances up to 100 meters through CAT6/7 cables
  • Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution
  • Supports LAN serving function through the LAN port and PoE (Power over Ethernet) on compatible receivers only
  • Supports bi-directional IR from input and output locations
  • Control of the matrix via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
  • Supports external and internal EDID settings

Inputs

  • 8x HDMI [8x Uncompressed AV and Data]
  • 8x 3.5mm Stereo Mini-jack [8x Infrared Receiver]
  • 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Receiver]
  • 1x 9-pin D-sub [1x RS-232 Data]
  • 1x RJ45 [1x IP Control / LAN Serving]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 8x RJ45 [8x HDMI & Propriety Data]
  • 8x 3.5mm Stereo Mini-jack [8x Infrared Emitter]
  • 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Emitter]

PSU:

  • 24V/6.25A

Dimensions

  • 436mm [W] x 255mm [D] x 48mm [H]

Net Weight

  • 4350gr

Box Contents

• 4K2K 8×8 HDMI Matrix over CAT5e/6/7

• 2×IR Extender

• 2×IR Blaster

• 2×24 V/6.25 A DC Power Adaptor (1 for PoC)

• 2×Power Cord

• 1×IR Remote Control with battery

• 1×Left and Right Ear Rack Set

• Operation Manual

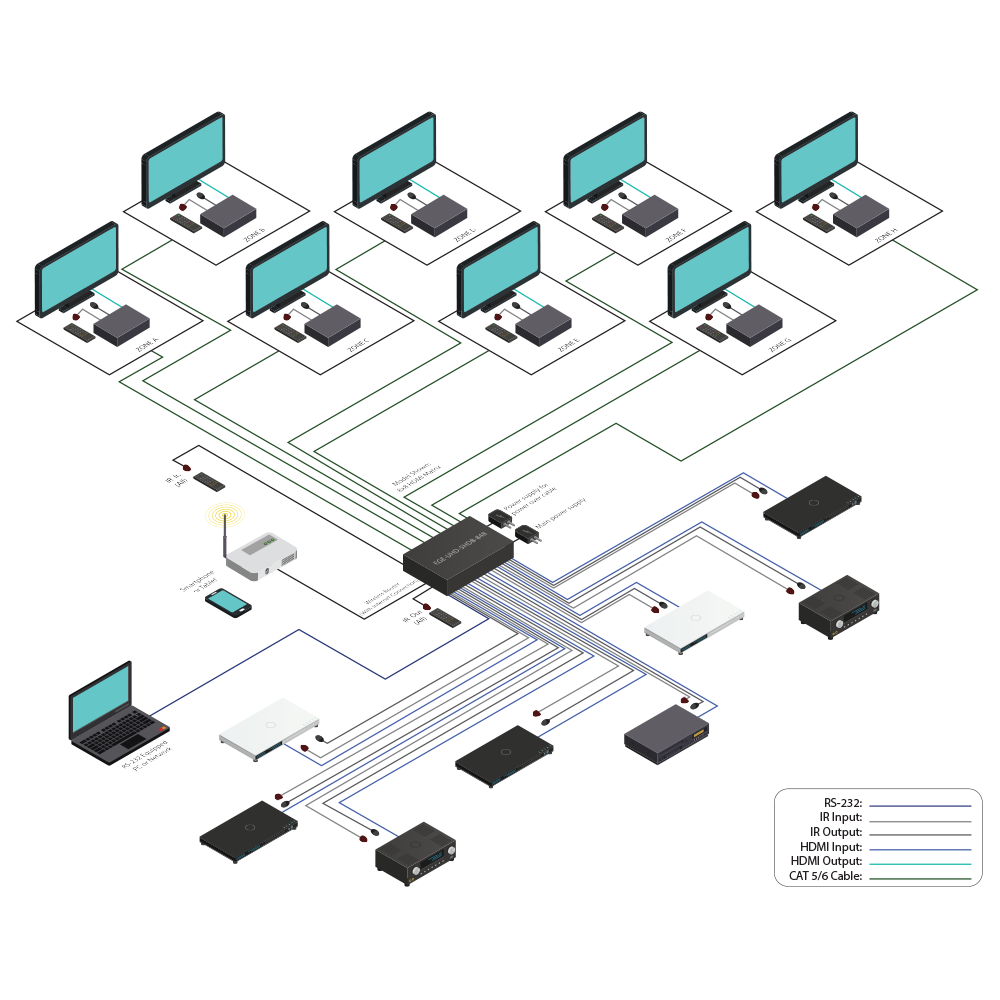

Diagrams
