HDMI EDID Emulator

HDMI EDID Emulator
CEC Function
4K2K@30Hz

Category:

Description

The HDMI EDID Emulator is designed to manipulate the HDMI/DVI EDID information to be provided to source device for it to know capabilities of the connected display equipment and output the Video/Audio signal accordingly. Aiming to simplify the technical complications involved in Video/Audio system integration, home theater installation, Video/Audio equipment testing and experiment, the model provides selections of the Learning function to Read/Write the Video/Audio EDID to the system. It also supports EDID Emulator and Bypass modes.

Spesifications

  • Compatible with HDMI and DVI 1.0 standards
  • Supports the following HDMI features:
    • High video bandwidth up to 340 MHz / 10.2 Gbps
    • Resolutions up to 1080p@60 Hz and 4K×2K@24/30 Hz
    • 6-bit Deep Color
    • LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTSHD Master Audio (Sampling rates from 32 kHz to 192 kHz)
  • Supports four different EDID Modes:
    • Read Mode: Reads the TV/display’s EDID information
    • Write Mode: Overwrites the TV/display’s EDID information (TV/display needs to be able to support overwrite function)
    • Emulator Mode: Allows the source device to read the selected EDID information from the unit’s default or learned EDID memory
    • Bypass Mode: Allows the source device to read the EDID information from the TV/display directly
  • Supports 8 sets of default EDID
  • Supports DVI source by using HDMI to DVI adaptor
  • Supports CEC and EDID pass-through
  • Supports being powered by USB or HDMI input

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x USB Mini-B [1x Propriety Data / USB Power]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]

PSU:

  • USB powered

Dimensions

  • 71mm [W] x 71mm [D] x 23mm [H]

Net Weight

  • 108gr

Box Contents

• HDMI/DVI EDID manipulation

• Mini USB to USB Type A Cable

• Operation Manual

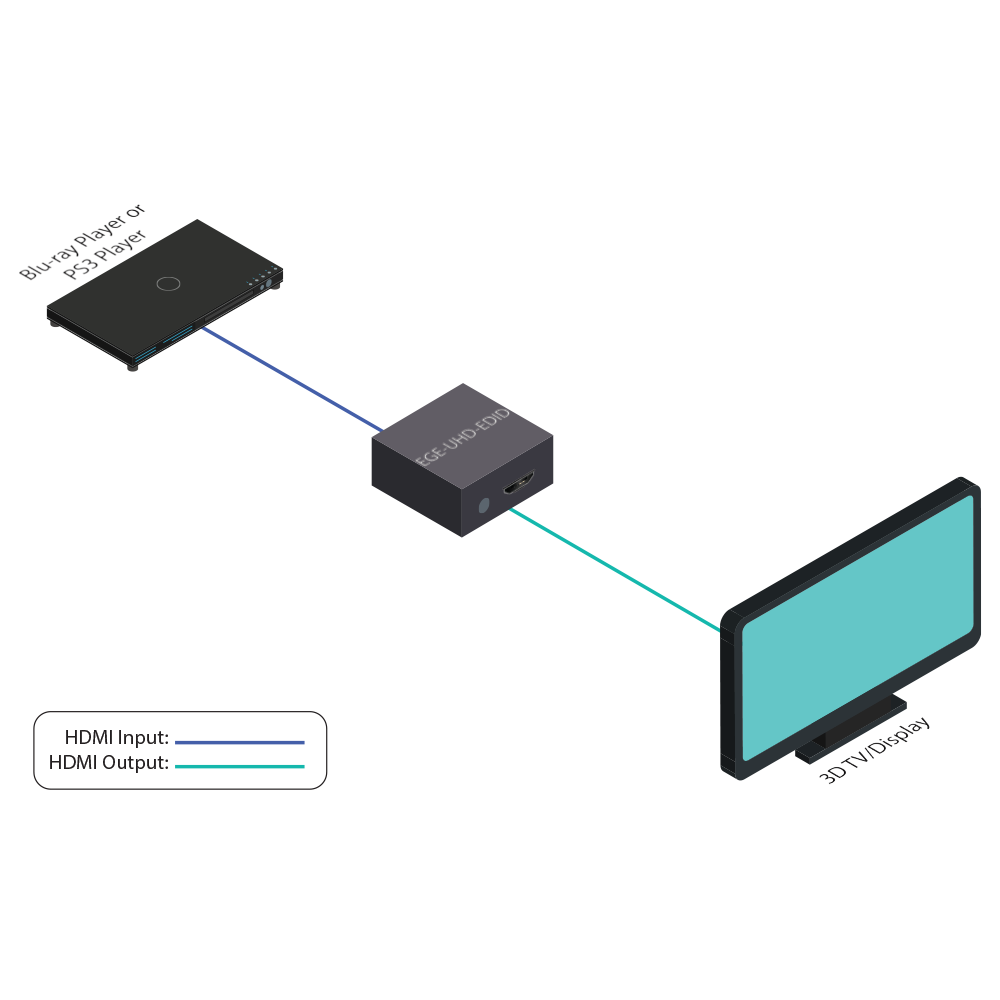

Diagrams
