EGE-UHD-EXTIP-KVM-RX

HDMI / VGA over IP Extender with scaler and KVM functions

HDMI+VGA over IP Receiver
with USB connection
4K 30Hz

Categories: , ,
Brand:

Description

This 4K UHD Multi-Function Extender with KVM over TCP/IP allows you to transmit HDMI or VGA signals over CAT5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) along with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the Transmitter operate in multicast mode, allowing you to send a single AV signal to a virtually multi number of Receivers within the same local network. This system is perfect for both residential and commercial installation environments. This system also features bi-directional IR and RS-232 pass-through, analog line level in/out, and a microphone input (on the Receiver), providing the user with a variety of audio options. The USB functionality allows the system to act like a remote USB hub which, when combined with the VGA input/output feature, provides a flexible remote KVM platform. Configuration information is provided via On Screen Display (OSD) and control is by WebGUI and front panel controls.

Spesifications

  • Video, audio and control reception over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many, many-to-many) modes
  • Support video wall with 180° and 270° rotation
  • Video output can be scaled to a selected resolution, or left unscaled
  • The analog Line In on a connected Transmitter will send audio directly to this Receiver’s analog Line Out as well as being embedded into the HDMI output signal
  • The Mic In on the Receiver sends audio directly to the analog Line Out on the Transmitter
  • May be powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
  • Includes 3 LAN ports, allowing multiple Receivers to be daisy chained without the need for an external Gigabit Ethernet switch
  • Supports USB keyboard, mouse and storage extension

Interfaces

Input Port

1 Analog Mono (3.5mm)

Output Port

1 HDMI (Type-A)

1 VGA (HD-15)

1 S/PDIF (TOSLINK)

1 Analog Stereo (3.5mm)

Bi-directional Port

3 GbE LAN (RJ-45)

Control I/O

1 IR Extender (3.5mm)

1 IR Blaster (3.5mm)

1 RS-232 (DB-9)

4 USB (Type-A)

Video

HDMI Compliance

HDMI 2.0 (DVI 1.0)

HDCP Compliance

2.X

Input Signal Type

4096x2160p@60 8bit YUV4:2:0

Output Signal Type

4096x2160p@30 8bit RGB

Resolutions

Maximum Input

LAN (Streaming)

4096×2160p@30

Maximum Output

HDMI

4096×2160p@30

VGA

1920×1200p@60RB

Audio

Digital Formats

HDMI

LPCM (8 Channels), Bitstream, High Bit Rate Bitstream

Line Out / Optical Out

LPCM (2 Channels), Bitstream

Line Level

Mic In

300 mVrms, S/N Ratio: > 80dB (1kHz with 0dBFS)

Line Out

2 Vrms, S/N Ratio: > 80dB (1kHz with 0dBFS)

Box Contents

•1 x HDMI/USB/RS-232/IR over single CAT5e/6/7 Transmitter

• 1 x HDMI/USB/RS-232/IR over single CAT5e/6/7 Receiver

• 1 x 5V/2.6A DC Power Adaptor

• 1 x 5V/4A DC Power Adaptor

• Operation Manual

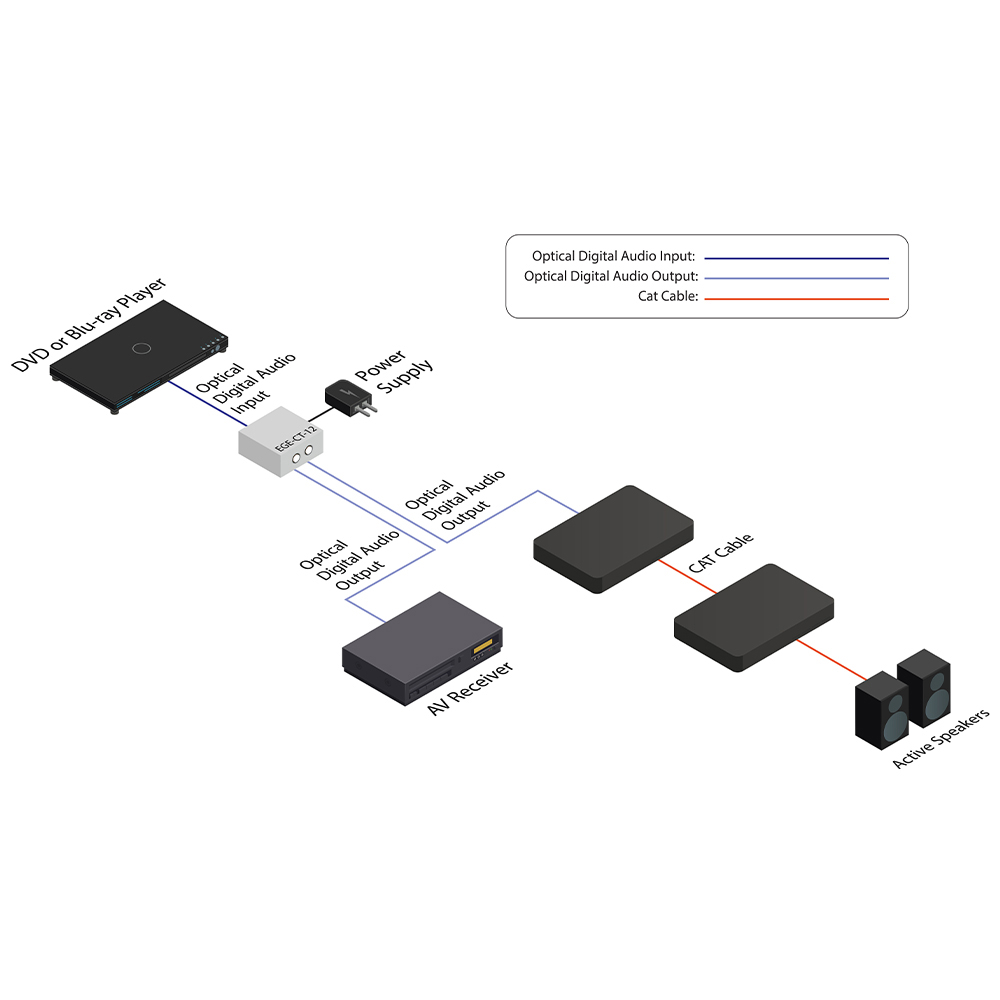

Diagrams
