Description

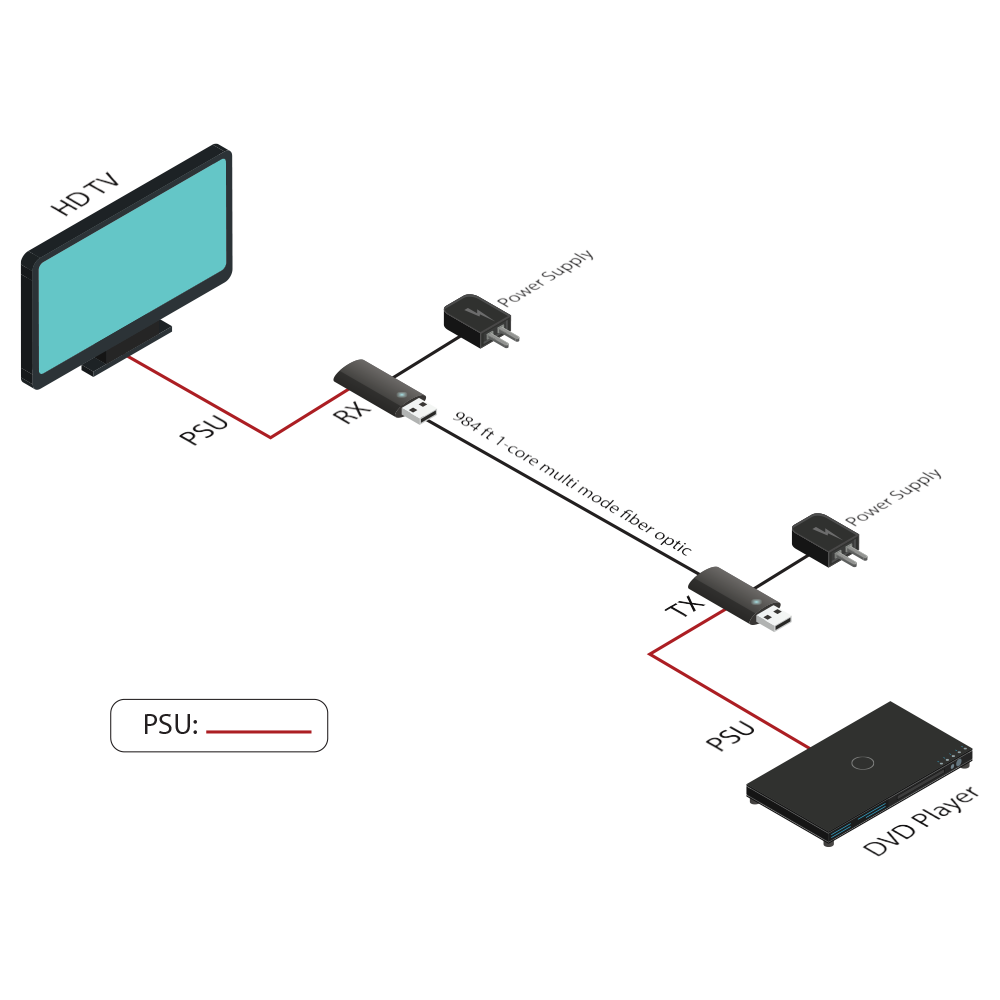

The optical extension module consists of transmitter module and receiver module, each of which has a LC connectors and a HDMI plug. Users could decide extension length at their discretion by choosing the length of fibreoptic cables with LC ferrules at the ends. It offers graphic TMDS signals to be extensible up to the limits of modal bandwidth of selected OM3 multimode glass fibers or Single-Mode fibers. The communication between the TX and RX is bidirectional ,the data rate from the –T to –R is 10.2Gb/s with 1310nm, and from the –R to –T is 250Mb/ s with1550nm, the 1310nm and 1550nm optical signals are multiplexed to one fiber with a 1310/1550nm WDM filter insider the HDMI extender. The HDMI Extender compliant HDMI 1.4 standard, It Support resolution is up to 3840*2016/30Hz (YUV 4:4:4) or 3840*2016/60Hz (YUV 4:2:0). It support distance up to 300m over OM3 MMF and SMF
