EGE-UHD-HDB-2527RX

EGE-UHD-HDB-2527RX

4K UHD HDMI over HDBaseT Receiver

4K UHD HDMI over HDBaseT Receiver
Transmission 70m 4K
48V PoH

Categories: , ,
Brand:

Description

This receiver is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 100 meters. Multiple data and control interfaces are provided, including Ethernet, IR and RS-232 connections. This Receiver complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. This Receiver (PSE) can provide 48V PoH (Power over HDBaseT) to compatible Transmitters allowing for greater exibility within different installation scenarios.

Spesifications

  • HDMI 2.0 and DVI 1.0 compatible
  • HDCP 2.2 and HDCP 1.x compliant
  • Supports resolutions up to 4K@50/60Hz (YUV 4:2:0, 8-bit)
  • Supports CEC bypass
  • Simultaneous reception of uncompressed video, audio and data over a single 100m Cat.5e/6/7 cable at 1080p and 70m at 4K
  • HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (Ethernet, IR and RS-232 bypass)
  • Supports standard 48V PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)

Notes:

The 48V PoH function is designed to power compatible Transmitter units only. Non-PoH Transmitters will need their own power supply. Other Transmitter brands may not be compatible.

The use of “Premium High Speed HDMI” cables is highly recommended for displaying 3D and 4K content. Compatible display equipment is also required.

  • Inputs 1x RJ-45 [1x HDMI & Propriety Data]
  • 1x 3.5mm [1x IR2 Infrared Receiver]
  • Outputs 1x HDMI [1x Uncompressed AV and Data]
  • 1x 3.5mm [1x IR1 Infrared Emitter]
  • 1x DE-9 [1x RS-232 Data]
  • 1x RJ-45 [1x LAN Serving]

PSU: 48V/0.83A

Dimensions: 128mm [W] x 117mm [D] x 25mm [H]

Net Weight: 370g

Box Contents

• 1×HDMI/VGA over HDBaseT Transmitter (with LAN support)

• 1×HDMI over HDBaseT Receiver (with LAN support)

• 1×48V/0.83A DC Power Adaptor

• 1×Power Cord

• 1×Operation Manual

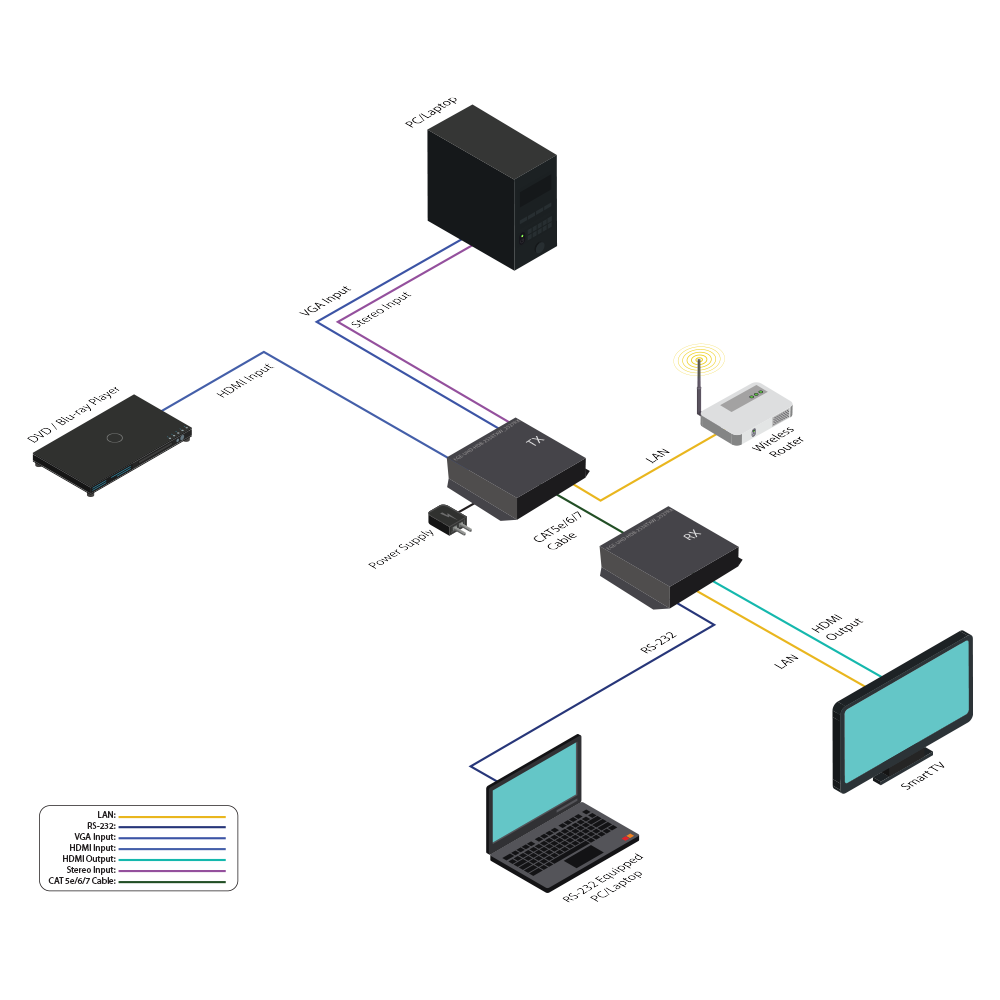

Diagrams

Dowloads

User Manual
Datasheet
