EGE-UHD-HDB-507-TX/RX

HDMI over CAT5e/6/7 Transmitter / Receiver with LAN Output/PoC

HDMI CAT5e/6/7 Transmitter
IR/ RS-232/ ETHERNET/ PoE
4K2K@30Hz

Categories: , ,
Brand:

Spesifications

  • HDMI 1.4 with 3D, 4k2k support, HDCP & DVI Compliant
  • Supports CEC bypass
  • Contemporaneous transmittal of uncompressed data over a single 100m/328ft CAT5e/6 cable
  • Uncompressed video 1080p, 60Hz, 36-bit
  • Audio support up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio
  • HDBaseT 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-232)

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x RJ45 [1x LAN Serving]
  • 1x 9-pin D-sub [1x RS-232 Data]
  • 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]

Outputs

  • 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
  • 1x 3.5mm Stereo Mini-jack [1x Infrared Emitter]

PSU:

  • 24V/1.25A

Dimensions

  • 102mm [W] x 113mm [D] x 25mm [H]

Net Weight

  • 252gr

Description

The HDMI over CAT5e/6/7 Transmitter and Receiver set can send uncompressed video/ audio and IP data over an single run of CAT5e/6/7 cable up to 100 meters. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has Power over Cable (PoC) functionality that allows for greater flexibility in installations

Box Contents

• 1×HDMI over CAT5e/6/7 Transmitter

• 1×HDMI over CAT5e/6/7 Receiver

• 1×IR Blaster (Accessory for Receiver)

• 1×IR Extender (Accessory for Receiver)

• 1×24 V/1.25 A DC Power Adaptor

• 1×Operation Manual

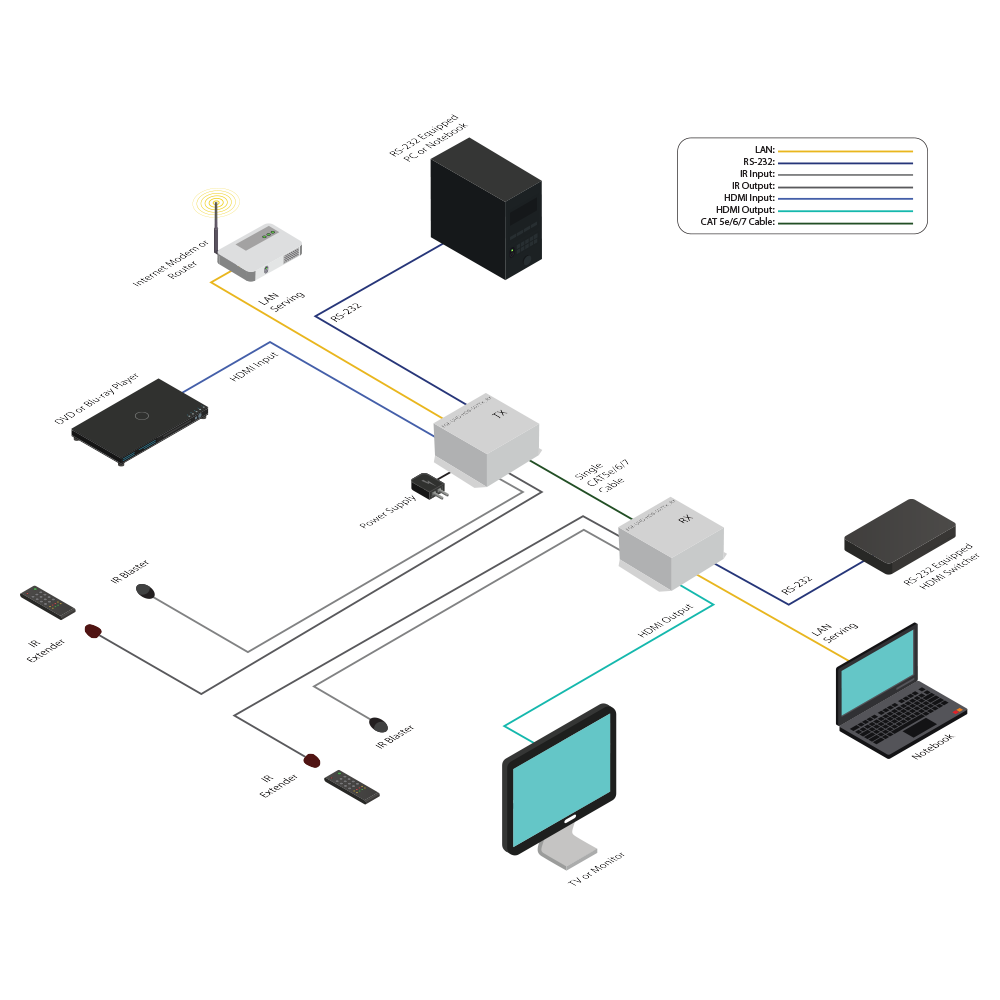

Diagrams

Dowloads

User Manual
Datasheet
