EGE-UHD-HDB-MV542

5x2 Seamless Presentation Switcher

UHD 5×2 Video Switcher
w/ Multiview and HDBase-T Out
Seamless

Categories: , , ,
Brand:

Description

The 5×2 Seamless Presentation Switcher provides 3×HDMI, 1×DP and 1×USB-C (video only) inputs, 1×HDMI and 1×HDBaseT mirrored outputs with PIP/PAP/Tri/Quad-view Multiview functionality. It supports single screen seamless switching with no freezing, black or snow screen. One 3.5mm audio de-embedding jacket can output analogue stereo audio. User can use Front Buttons or RS232 commands to control the switcher.



Spesifications

  • 5×2 presentation switcher with PIP/PAP/Tri/Quad-view
  • True seamless switching, no freezing, black or snow screen
  • HDMI 2.0b, HDCP 2. 2, DP1.4 up to 4K60@4:4:4
  • 3×HDMI, 1×DisplayPort and 1×USB-C inputs
  • 1×HDMI, 1×Mirrored HDBaseT 70M/POC outputs
  • Full screen/PIP/PAP/Tri/Quad-view 5 configurable display modes
  • Up to 14 output resolutions selectable
  • 3.5mm analog audio de-embedding
  • EDID management
  • Buttons and RS-232 control

Box Contents

• 1 × 5×2 Seamless Presentation Switcher

• 1 × HDBaseT 70m Receiver

• 1 × 24V/1A Power Adapter

• 2 × 3-way Female Captive Screw Connector

• 1 × User Manual

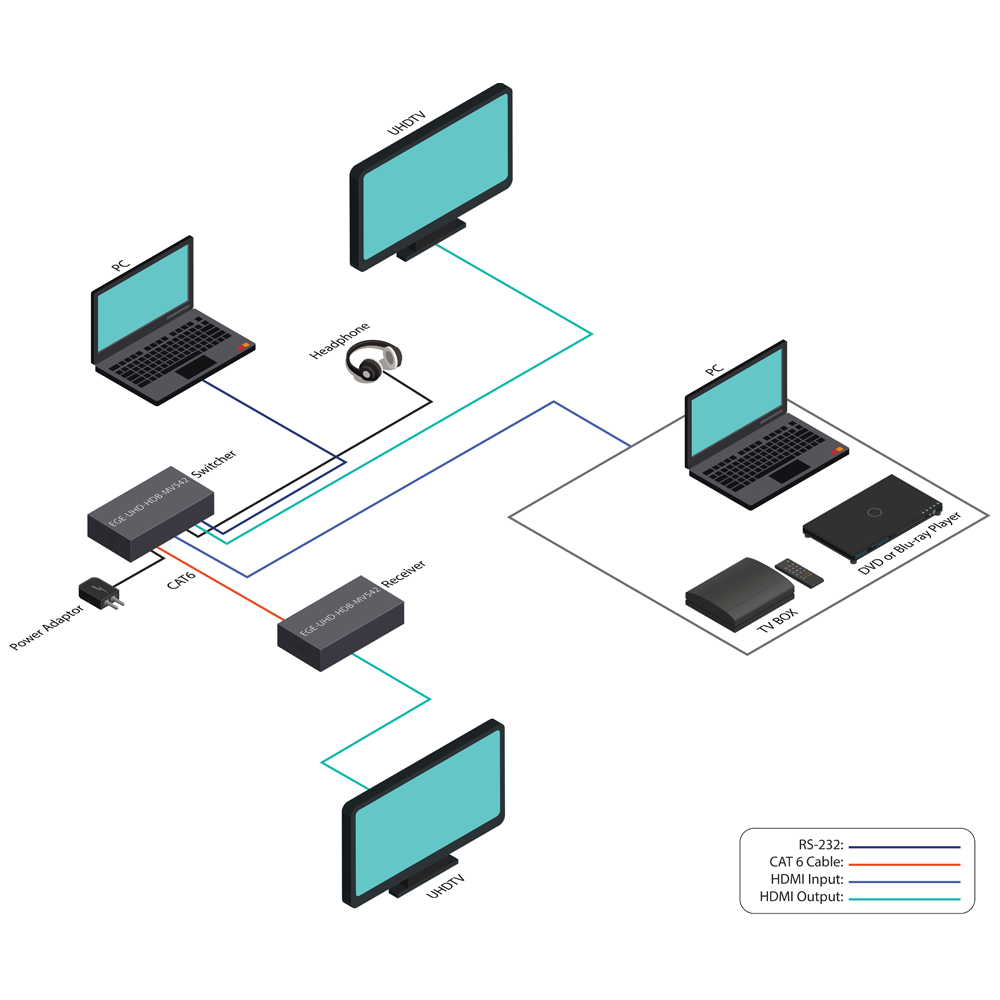

Diagrams
