Description

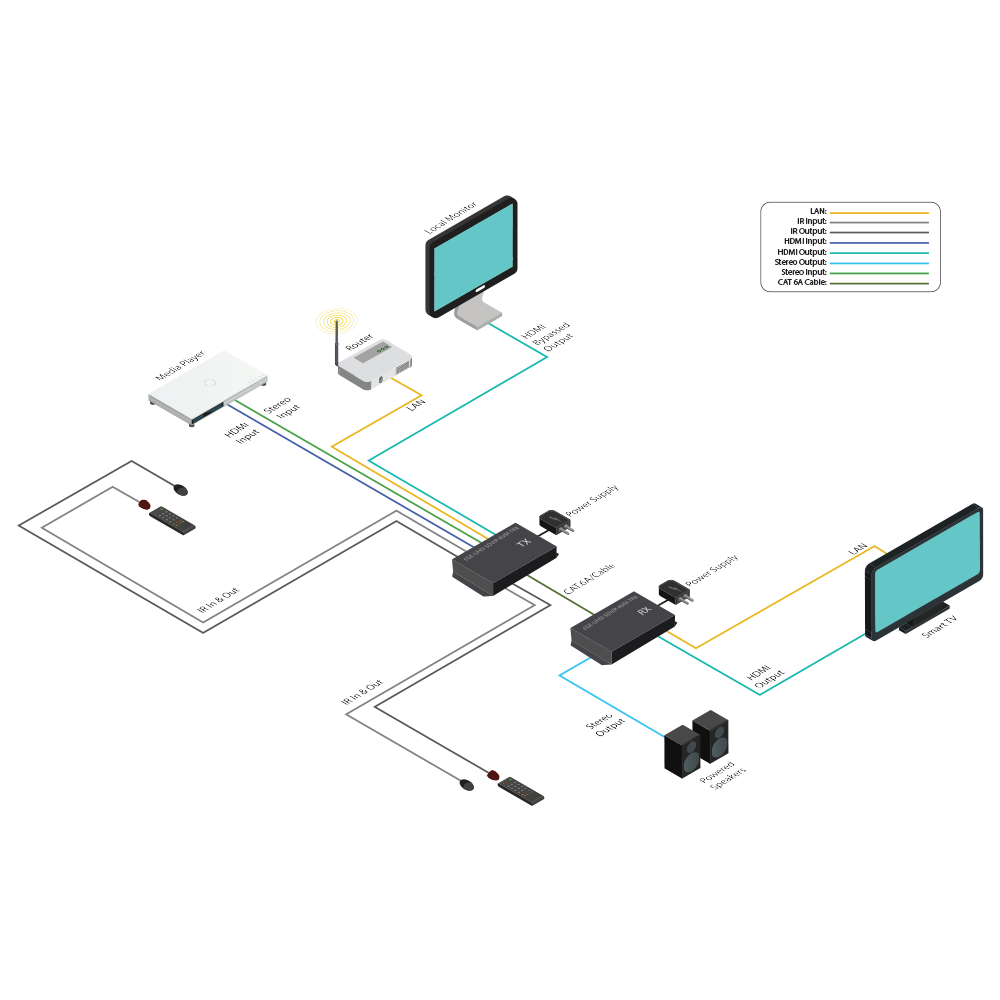

This Transceiver is designed for high-quality, IP routable, AV extension with minimum latency. Every Transceiver can be con gured to function as either a Transmitter or a Receiver, enhancing the exibility of any installation. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K HDMI audio/video streams and data. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. The use of high quality 10-Gigabit Ethernet ports and Cat.6A cable allows for point-to-point transmission of the video signal up to 100m. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and Ethernet. When combined with the optional control center or control software, the functionality of the Transceiver expands exponentially. Multiple Transceivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multi-viewer system, or a video wall system adding to their exibility in large event installations. The unit may also be powered directly by PoE when connected via Cat.6A to a Gigabit Ethernet switch that provides PoE (802.3af) allowing for great exibility in installation location. The built-in EDID and HDCP management functionality enables the unit to t into every situation. Basic con guration of the unit can be achieved via front panel buttons with an On-Screen Display (OSD). Advanced control requires optional control software and a LAN connection.
Spesifications
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- Can be configured to function as either a Transmitter or a Receiver
- 1 HDMI input
- 1 HDMI output (Functions as local monitor output in Transmitter Mode)
- 1 analog stereo jack (Functions as an input in Transmitter Mode and an output in Receiver Mode)
- IP switchable with minimum latency (requires optional control center/software)
- Ultra-light compression, lossless for most content
- Extension up to 100m in point-to-point mode (w/ Cat.6A cable)
- Independent breakaway A/V matrix switching (requires optional control center/software)
- Video wall generation (requires optional control center/software)
- Multi-view compositing (requires optional control center/software)
- Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Genlock mode only)
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream from HDMI sources
- Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional control center/software)
- Bidirectional LAN, IR & RS-232 extension
- Unit can be powered directly by PoE when connected to a 10-Gigabit Ethernet (10GbE) switch that provides PoE (802.3af)
- Signal transmission interfaces with 10-Gigabit Ethernet switches via a single Cat.6A cable
- Basic configuration via front panel buttons with an On-Screen Display (OSD)
- Supports the use of an external control center or control software to provide expanded functionality (Contact your authorized dealer for more information)
Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 3.5mm [1x Infrared Receiver]
- 1x 3.5mm [1x Stereo(L/R)]
- 3x 1-Pin Terminal Block [1x RS-232]
- 1x USB Mini-B [1x SERVICE Propriety Data]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 3.5mm [1x Infrared Emitter]
- 1x RJ-45 [1x HDMI & Propriety Data]
- 1x RJ-45 [1x IP Control]
PSU: 12V/3A
Dimensions: 231mm [W] x 116mm [D] x 25mm [H]
Net Weight: 552g
Box Contents
• 1×HDMI over IP (10GbE) Transceiver
• 1×12V/3A DC Power Adapter
• 1×Power Cord
• 1×3-pin Terminal Block to DE-9 (Male) Adapter Cable
• 1×3-pin Terminal Block to DE-9 (Female) Adapter Cable
• 1×Shockproof Feet (Set of 4)
• 1×Operation Manual
