EGE-UHD2-144

1x4 HDMI 4K UHD Splitter with HDCP 2.2

1×4 HDMI Splitter
HDCP 2.2, EDID, 3D Compliant
Resolution 4K2K@60Hz

Categories: , ,
Brand:

Description

This 1 by 4 HDMI Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to four HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz_YUV420 resolution and is capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.

Spesifications

  • Compatible with HDMI and HDCP 2.2
  • Supports HDTV resolutions up to 4K2K including 3840×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV420), 4096×2160@24/25/30Hz, 4096×2160@50/60Hz (YUV420) and PC resolutions up to WUXGA@60Hz (RB)
  • Supports Hi-Def audio transmission:LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS Surround, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • An HDMI source connect with four HDMI displays simultaneously
  • Supports HDMI data rate up to 9Gbps and Deep Color up to 1080p/12 bit
  • Supports EDID Selection function
  • 3D Signal support

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x USB Type A [1x FIRMWARE Propriety Data]

Outputs

  • 4x HDMI [4x Uncompressed AV and Data]

PSU:

  • 5V/2.6A

Dimensions

  • 220mm [W] x 127mm [D] x 28mm [H]

Net Weight

  • 368gr

Box Contents

• 1 By 4 HDMI Splitter

• 5V/2.6A Power Adaptor

• Operational Manual

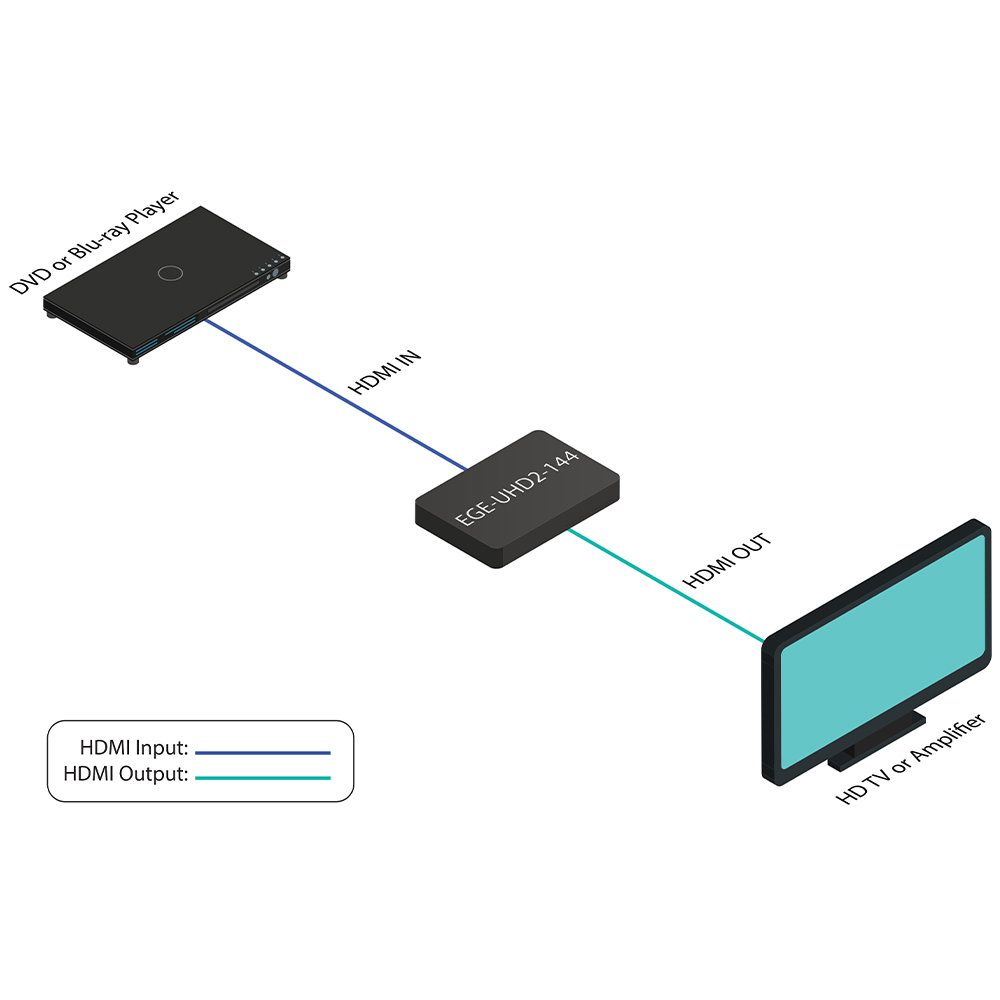

Diagrams

Dowloads

User Manual
Datasheet
