8 8 HDMI 4K UHD over CAT5e/6/7 Matrix, 60m with 24V PoC, IR,& HDCP 2.2, Light Version

8×8 HDMI over HDBaseT Matrix
RS232/ Ethernet/ PoC
4K2K@60Hz YUV 4:2:0

Categories: , ,
Brand:

Description

The 8 by 8 HDMI 4K2K Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.

Spesifications

  • Compatible HDMI with 4K2K supported, HDCP 2.2
  • Supports PC resolution up to WUXGA and HDTV resolution up to 4K2K(3840×2160@24/25/30 Hz & 3840×2160@50/60 Hz with YUV420, 4096×2160@24/25/30 Hz & 4096×2160@50/60 Hz with YUV420)
  • Supports distances up to 60 meters through CAT5e/6/7 cable
  • Supports 3D signal
  • Supports pass-through audio LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD & DTS-HD Master Audio
  • Supports PoC (Power over Cable) on compatible receivers only
  • Supports bidirectional IR from inputs and output locations
  • Supports RS-232, remote control, on-panel control and IP control (Telnet/Web GUI)
  • 2U size
  • Compliant with DVI sources

Inputs

  • 8x HDMI [8x Uncompressed AV and Data]
  • 8x 3.5mm Stereo Mini-jack [8x Infrared Receiver]
  • 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Receiver]
  • 1x 9-pin D-sub [1x RS-232 Data]
  • 1x RJ45 [1x IP Control]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 8x RJ45 [8x HDMI & Propriety Data]
  • 8x 3.5mm Stereo Mini-jack [8x Infrared Emitter]
  • 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Emitter]

PSU:

  • 24V/6.25A

Dimensions

  • 438mm [W] x 256mm [D] x 92mm [H]

Net Weight

  • 4592gr

Box Contents

• 1×8 by 8 HDMI 4K UHD over Cat5e/6/7 Matrix

• 1×IR Blaster

• 1×Remote Control with battery

• 2×24 V/6.25 A Power Adaptor

• 2×Power Cord

• 1×Operation Manual

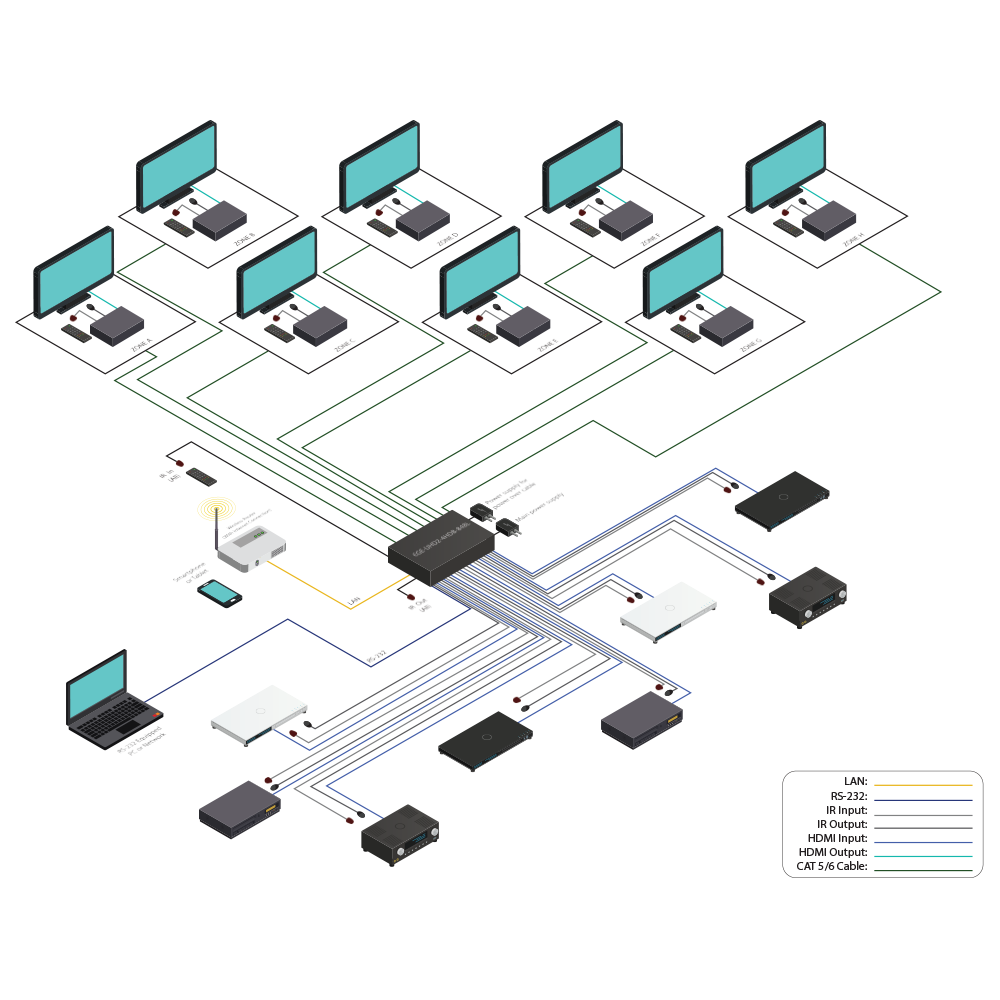

Diagrams
