8 8 HDMI 4K UHD over CAT5e/6/7 100m Matrix with PoC, IR, HDCP 2.2, LAN Serving

8X8 HDMI over HDBaseT Matrix
Resolution 4K2K@60Hz
24V PoC, IR, LAN Serving and HDCP 2.2

Categories: , ,
Brand:

Description

The 8 by 8 HDMI 4K2K Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 100m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.

Spesifications

  • Compatible with HDMI, HDCP 2.2
  • Supports PC resolutions up to WUXGA and HDTV resolution up to
  • 4K2K (3840×2160@24/25/30Hz, 3840×2160@50/60Hz with YUV420, 4096×2160@24/25/30Hz & 4096×2160@50/60Hz with YUV420)
  • Supports distances up to 100 meters through CAT5e/6/7 cable
  • Supports 3D signal bypass
  • Supports passthrough of high-definition audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD & DTS-HD Master Audio
  • Supports LAN serving function through the LAN port and PoE (Power over Ethernet) on compatible receivers only
  • Supports bidirectional IR from inputs and output locations
  • Control of the matrix via RS-232, IR remote control, on-panel control and IP control (Telnet/WebGUI)
  • Compliant with DVI source

Inputs

  • 8x HDMI [8x Uncompressed AV and Data]
  • 8x 3.5mm Stereo Mini-jack [8x Infrared Receiver]
  • 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Receiver]
  • 1x RJ45 [1x IP Control / LAN Serving]
  • 1x 9-pin D-sub [1x RS-232 Data]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 8x RJ45 [8x HDMI & Propriety Data]
  • 8x 3.5mm Stereo Mini-jack [8x Infrared Emitter]
  • 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Emitter]

PSU:

  • 24V/6.25A

Dimensions

  • 438mm [W] x 257mm [D] x 92mm [H]

Net Weight

  • 4402gr

Box Contents

• 1×8 by 8 HDMI 4K UHD over Cat5e/6/7 Matrix

• 1×IR Blaster

• 1×IR Extender

• 1×Remote Control with battery

• 2×24 V/6.25 A Power Adaptor

• 2×Power Cord

• 1×Operation Manual

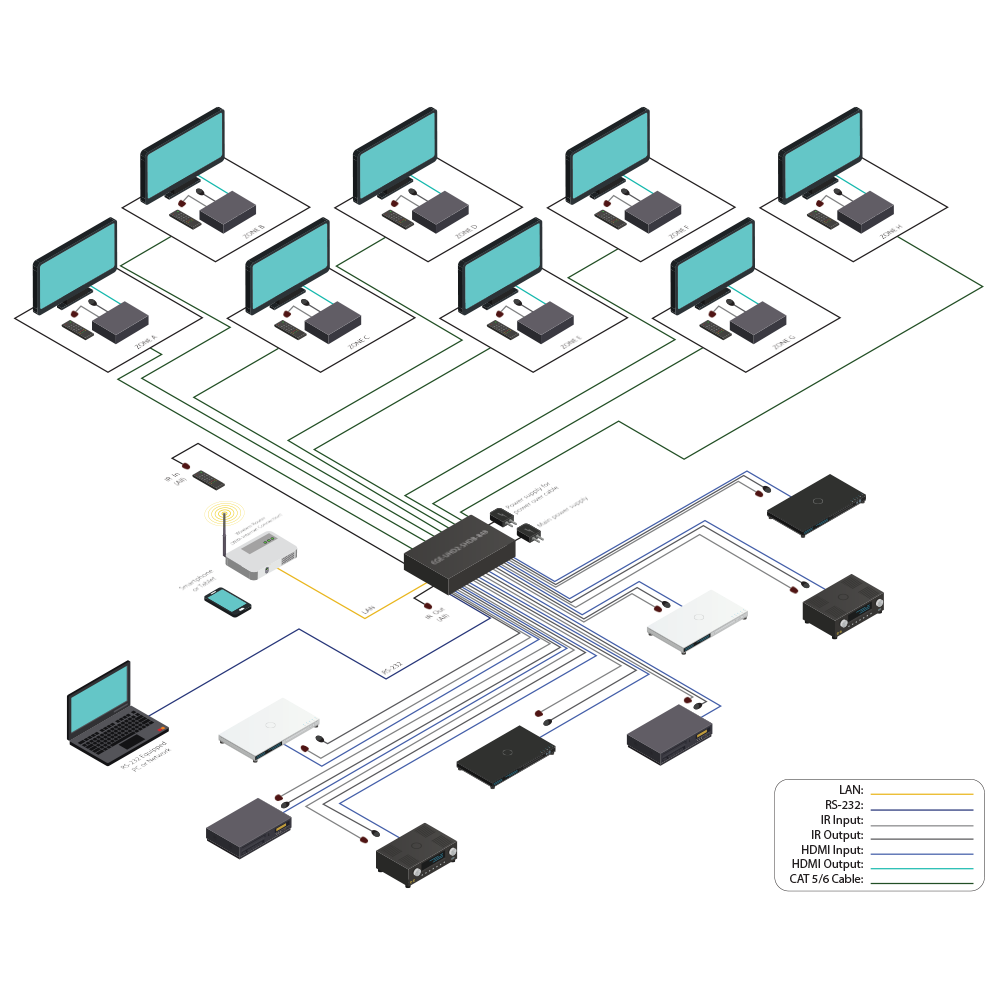

Diagrams
