EGE-UHD2-FO321

EGE-UHD2-FO321

This 4K60 HDMI over Fiber Extender can extend HDMI signal up to 300m/ 984ft over an OM4 multimode single optical

Category:
Brand:

Description

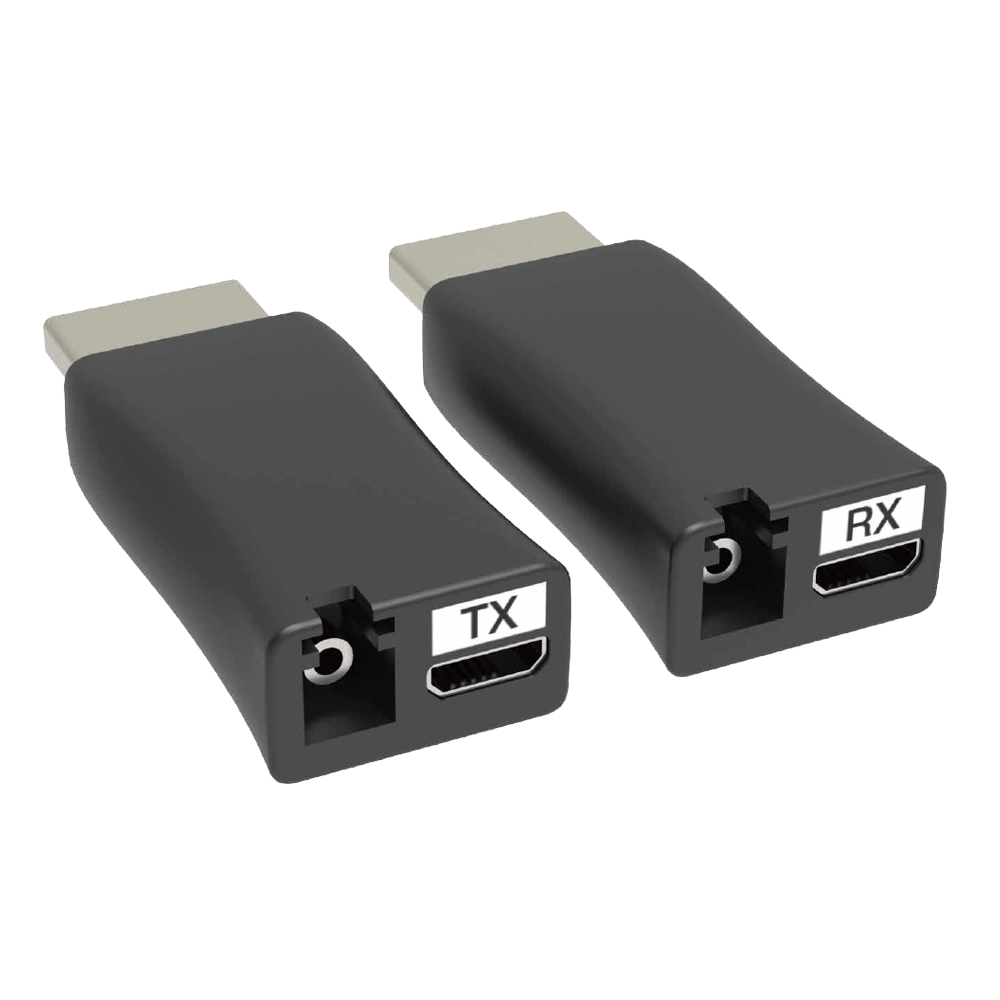

This 4K60 HDMI over Fiber Extender can extend HDMI signal up to 300m/984ft over an OM4 multimode single optical fiber cable. The resolution is up to 4K60 4:4:4. It supports HDMI HDP/DDC/CEC/ARC transmission. The transmitter features one HDMI input, one LC fiber optical output and one Micro USB power supply port (transmitter also can be powered by the connected HDMI source device). The receiver features one HDMI output, one LC fiber optical input and one Micro USB power supply port. This product has the advantages of strong anti-interference, high safety performance, small size and light weight, and has incomparable advantages in long-distance transmission.

Specifications

  • HDCP 2.2 compliant
  • Support 18Gbps video bandwidth
  • Support video resolution up to 4K60 4:4:4, as specified in HDMI 2.0b
  • Signal transmission distance can be extended up to 300m/984ft over an OM4 multimode single optical fiber cable
  • Support HDMI HDP/DDC/CEC/ARC transmission
  • HDMI Audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD
  • Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
  • Fiber module included (Embedded)
  • Standard single Fiber LC connector
  • Micro USB power supply
  • 2x USB cables and 2x 15cm HDMI female to male cables included
  • Compact design for easy and flexible installation

Box Contents

  • 1 × 4K60 HDMI over Fiber Extender (Transmitter)
  • 1 × 4K60 HDMI over Fiber Extender (Receiver)
  • 2 × HDMI Adapter Cable (male to female, 15cm)
  • 2 × USB Cable (USB A to Micro USB, 1m, shielded)
  • 1 × User Manual

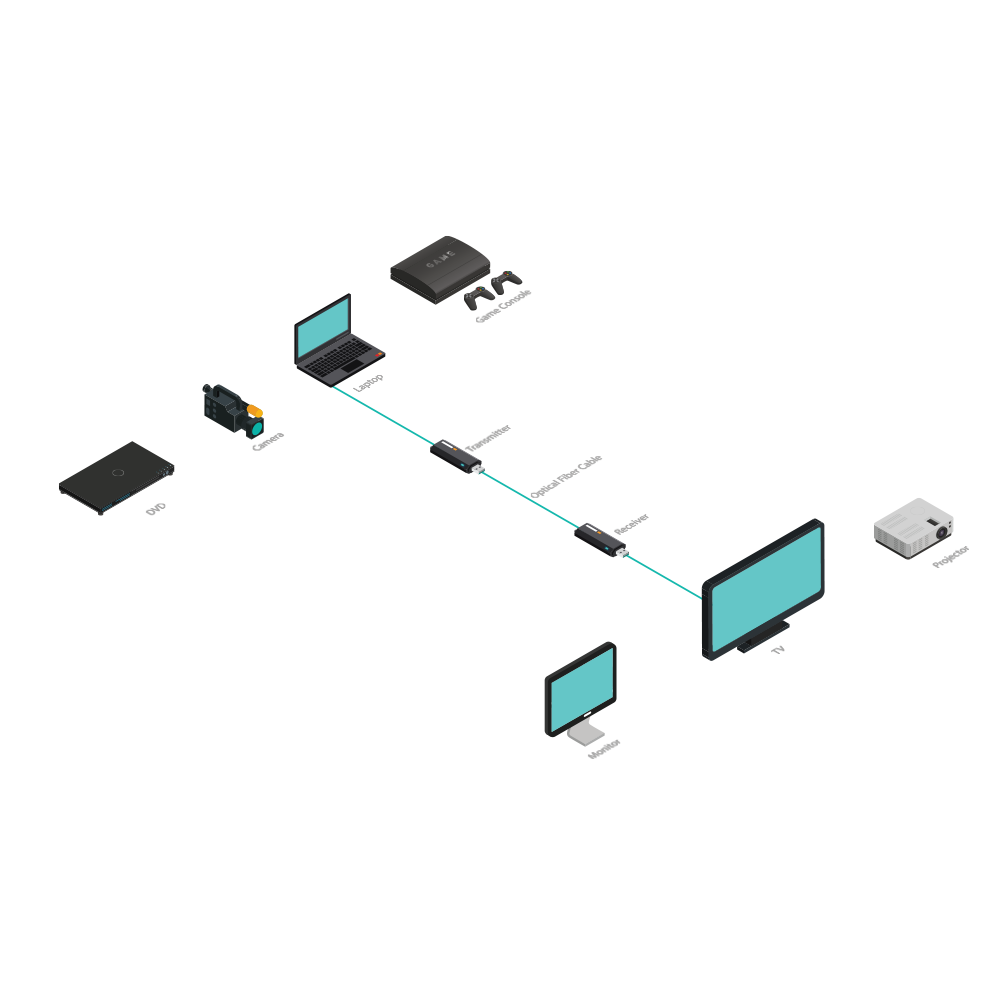

Diagrams

Downloads

Datasheet

User Manual
