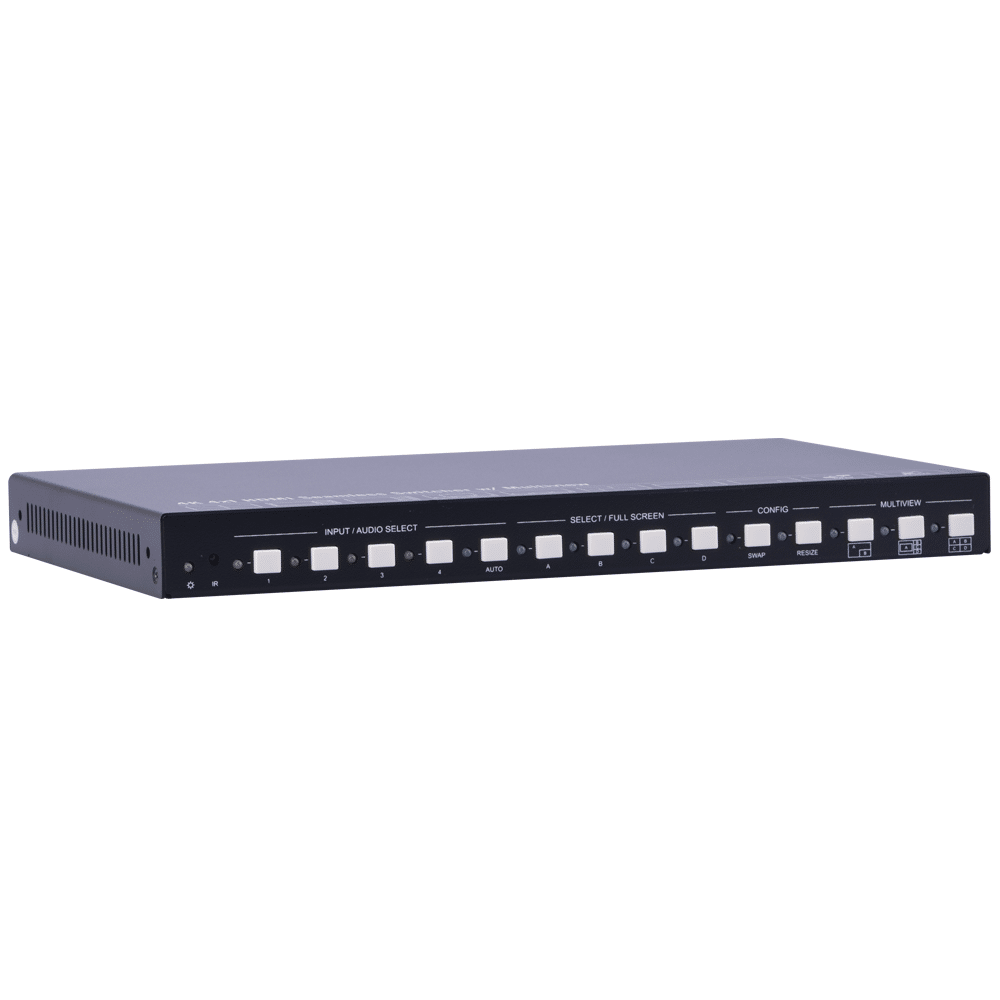

4K 4X1 Multi-view Switcher
Audio embedding/de-embedding
Seamless

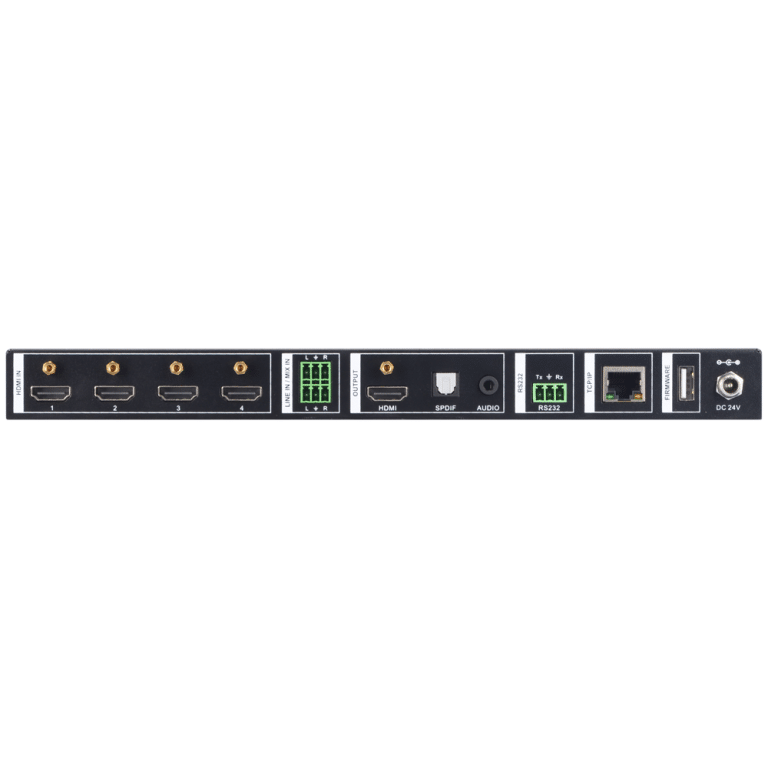

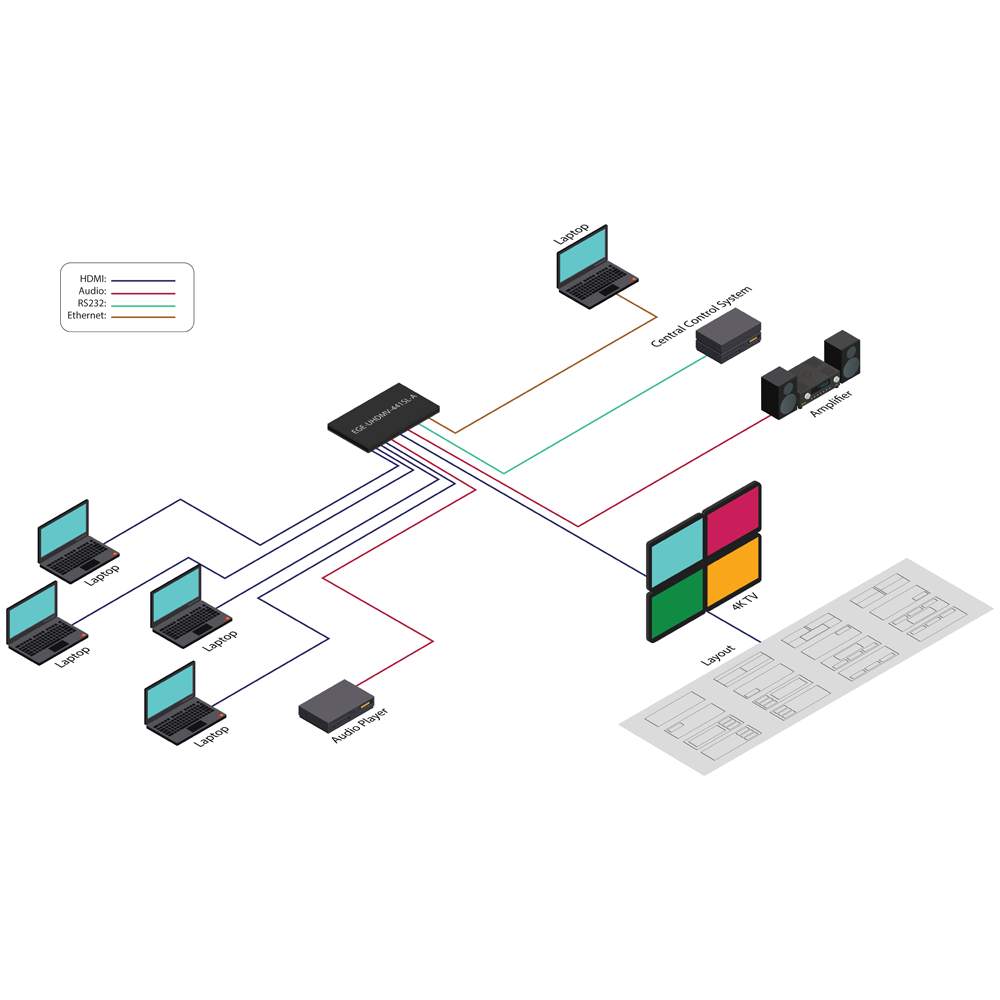

The 4K Multi-view switcher is seamless video scaler designed to enable a true 4K display. The switcher features four HDMI inputs and one HDMI output which allows you to display four video sources on one display. It also provides a line input, 1 mix input, 1 SPDIF output and 1 analog output for audio processing. Control is quick and comprehensive, whether you are using the front panel, the remote control, RS232 commands, or the fully featured web GUI.
• 4 HDMI inputs, 1 HDMI output.
• Supports 4K@30Hz 4:4:4, HDCP 2.2.
• Seamless switch between 4 input ports.
• Auto Scaler in each source input.
• Supports audio embedding and mixing.
• Supports audio de-embedding.
• Auto-switching at single window.
• Cycles through the windows from A to D by swap button.
• Base on FPGA Technology, layout and size of the windows can be customized.
• Resizes the windows in 3 different sizes.
• 16 pre-defined layouts for multi-view.

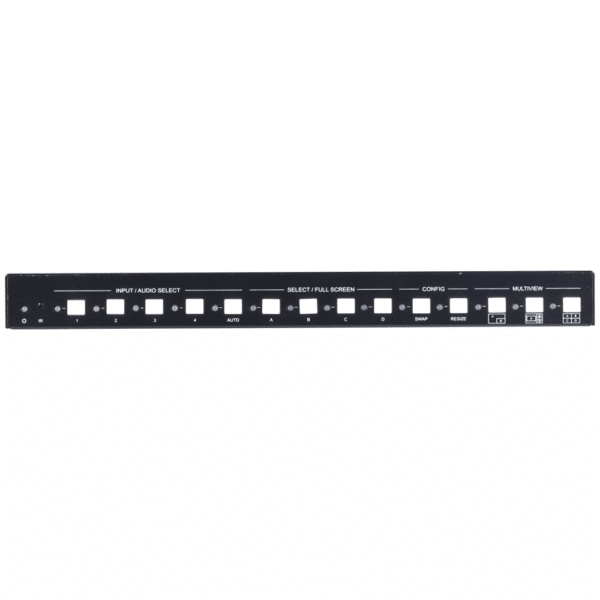

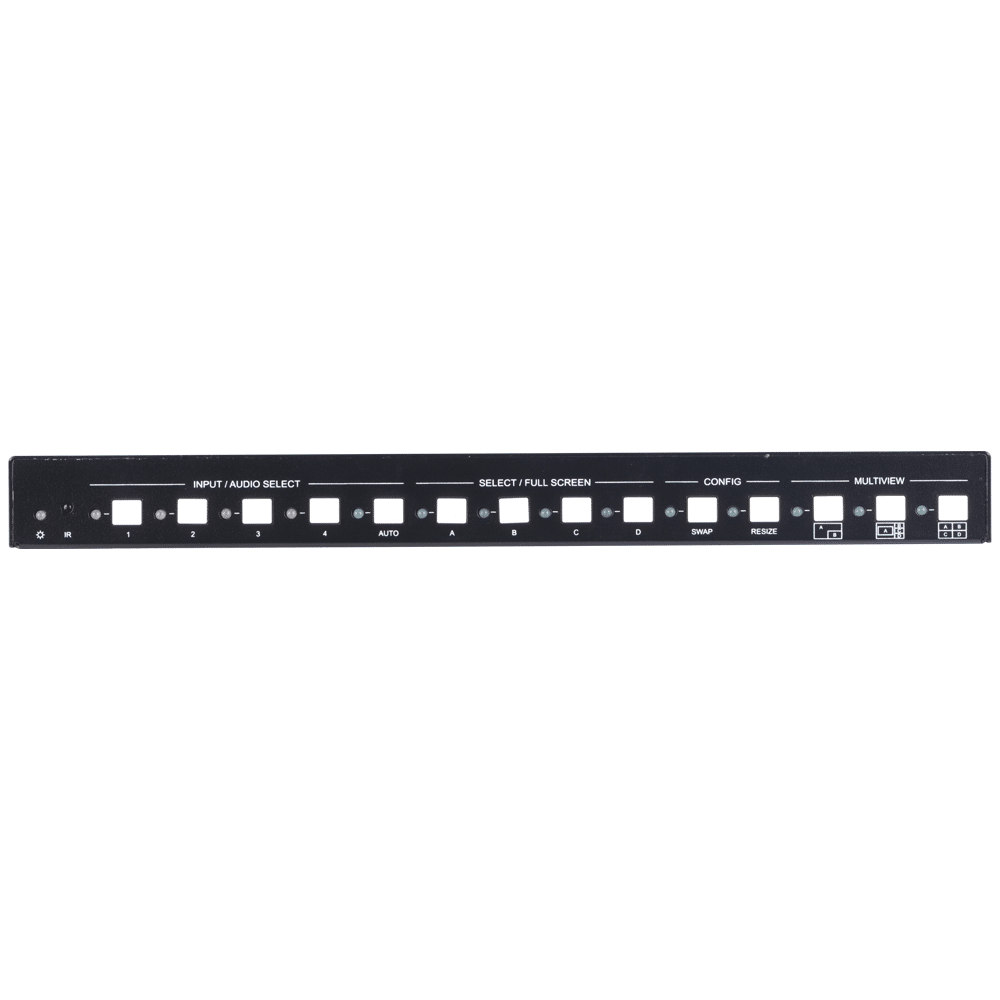

• Multiple control methods, including an assignable front panel, IR remote, web GUI and RS232 port.
• 1x 4K 4×1 Seamless Switcher.
• 1x IR Remote
• 4x Plastic Cushions
• 2x Mounting Ears
• 4x Mounting Screws
• 2x 3-pin Terminal Block
• 1x RS232 Cable (3-pin to DB9)
• 1x Power Adapter (24V DC 1.25A)
• 1x User Manual
