EGE-USB-2-AUDC

USB Audio Center

USB/Stereo to Stereo Audio Center

Categories: , ,
Brand:

Description

The USB Audio Center allows multiple audio sources to be controlled, switched and outputted to a variety of audio equipment. With 3 audio inputs (USB, Line-level RCA and 3.5mm mini-jack and 2 audio outputs (Line-level RCA and 6.3mm headphone output) you can integrate and convert USB or analog stereo audio sources to Line level output and 6.3mm headphone simultaneously.

Spesifications

  • Supports Digital to Analog audio Conversion (DAC)
  • Supports USB sampling rate up to 192 kHz
  • Simultaneous output on both Line out and 6.3mm headphone output
  • Supports RS-232 control
  • Volume control of analog and headphone outputs
  • Direct power ON/OFF and mute button on unit
  • Headphone output fades in after system is muted
  • 6.3 mm headphone output (3.5 mm mini-jack adaptor supplied)
  • Compact design and easy to use

Inputs

  • 2x RCA [1x LINE IN Stereo (L/R)]
  • 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
  • 1x USB Type B [1x AUDIO / SERVICE USB (2.0) Audio / Propriety Data]
  • 1x 3.5mm Stereo Mini-jack [1x RS-232]

Outputs

  • 2x RCA [1x LINE OUT Stereo (L/R)]
  • 1x 6.35mm Stereo Jack [1x Headphone]

PSU:

  • 5V/3A

Dimensions

  • 145mm [W] x 113mm [D] x 30mm [H]

Net Weight

  • 375g

Box Contents

• 1×USB Audio Center

• 1×5 V/3 A DC Power Adaptor

• 1×6.3mm to 3.5mm Jack

• 1×3.5mm to D-sub 9-pin Cable

• 1×Driver CD-Rom

• Operational Manual

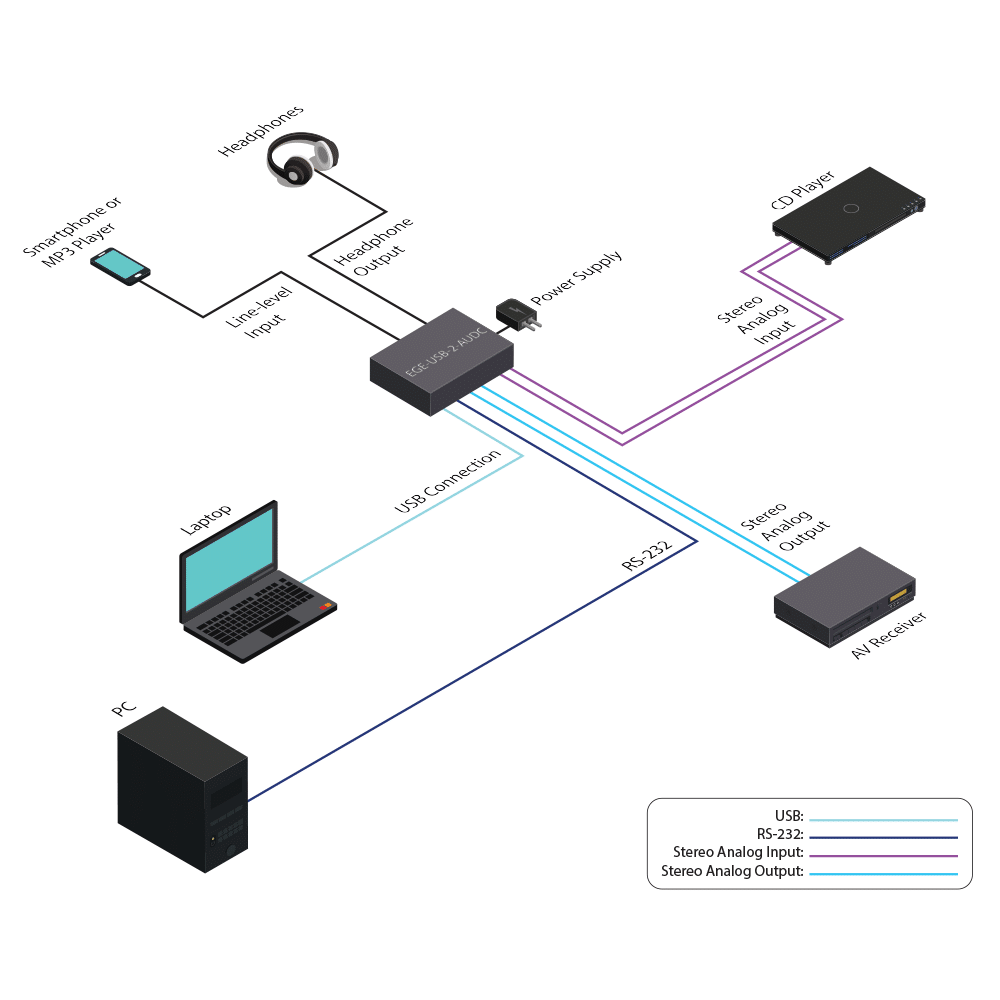

Diagrams

Dowloads

User Manual
Datasheet
