EGE-USB-AUD

USB to Headphone Audio Converter (up to 384kHz)

USB to Headphone Audio Converter

Description

This unit is a simple but smart device and no external power is required. It allows you to connect your PC/laptop to a set of analog headphones or other analog audio destination devices for delivery of superior audio quality. This compact HD audio product supports LPCM 2.0 audio with a maximum sampling rate of 384kHz at 24bits. It utilizes a directcoupled amplifier, for better frequency response, avoiding signal loss and providing higher audio quality than is typically delivered by a standard PC/laptop’s headphone output. This unit connects to your PC/laptop using any available USB 2.0 (or higher) port (Windows and Mac OSX compatible).

Spesifications

  • Output HD audio from your PC/laptop to headphones
  • Superior USB audio processor which supports up to 384kHz/24bits sample rate
  • Superior DAC engine which supports up to 384kHz for digital to analog signal conversion
  • Direct-coupled amplifier for better frequency response and to avoid signal loss
  • Simple operation and compact design
  • No external power required

Inputs

  • 1x USB Type B [1x Propriety Data]

Outputs

  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM]

PSU:

  • USB powered

Dimensions

  • 81mm [W] x 25mm [D] x 22mm [H]

Net Weight

  • 54g

Box Contents

• 1×USB to Headphone Audio Converter

• 1×Driver Disk

• 1×Operation Manual

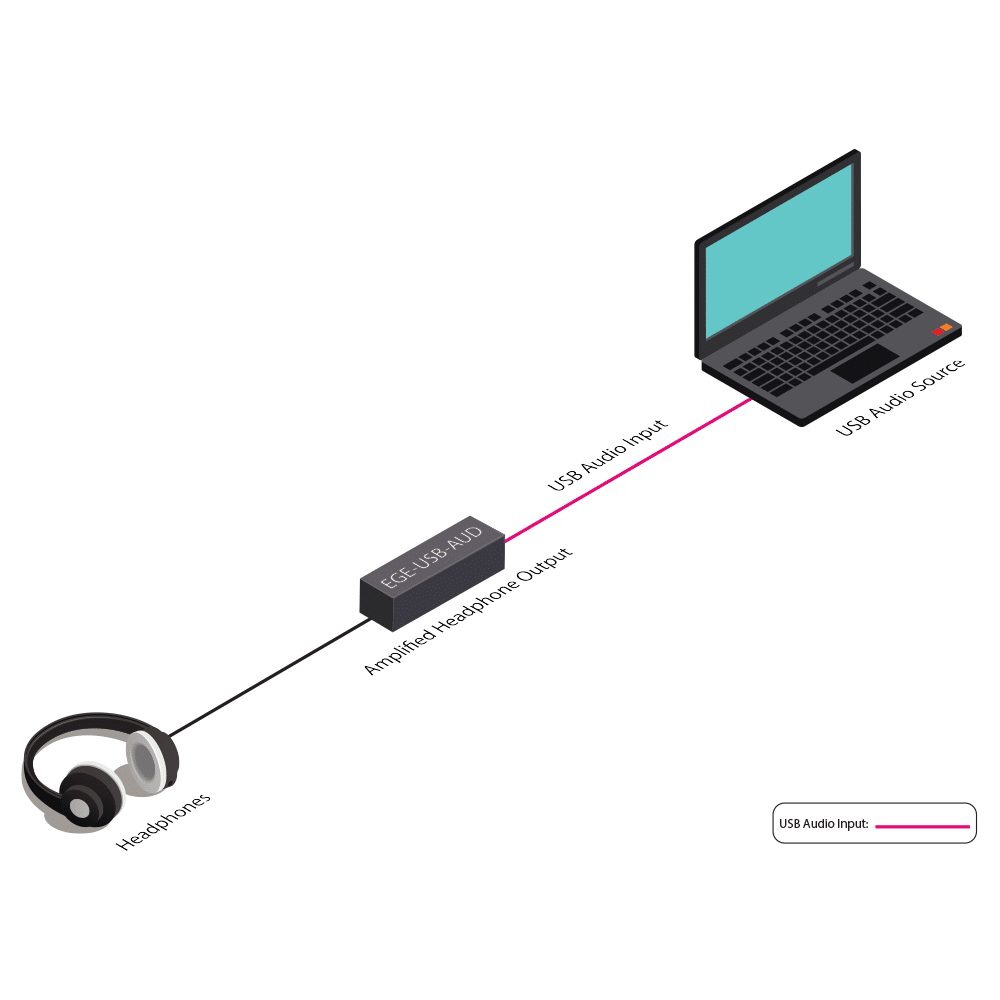

Diagrams
