EGE-USB-SPDF
EGE-USB-SPDF - Image 2
EGE-USB-SPDF - Image 3

EGE-USB-SPDF

USB to Optical Audio Converter (up to 192kHz)

USB to Optical Audio Converter

Categories: , , Brand:

Description

This unit is a simple but smart device and no external power is required. It allows you to connect your PC/laptop to an audio amplifier or other audio destination that has an S/PDIF input without needing a dedicated audio card. This compact HD audio product supports LPCM 2.0 audio with a maximum sampling rate of 192kHz at 24bits. This unit connects to your PC/laptop using any available USB 2.0 (or higher) port (Windows and Mac OSX compatible).

Spesifications

  • Output HD audio from your PC/laptop to an audio amplifier
  • Superior USB audio processor (XMOS U8A) which supports up to 192kHz/24bits sample rate
  • Superior optical module supporting up to 192kHz audio
  • Simple operation and compact design
  • No external power required

Inputs

  • 1x USB Type B [1x Propriety Data]

Outputs

  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM]

PSU:

  • USB powered

Dimensions

  • 49mm [W] x 25mm [D] x 22mm [H]

Net Weight

  • 36g

Box Contents

• 1×USB to Optical Audio Converter

• 1×Driver Disk

• 1×Operation Manual

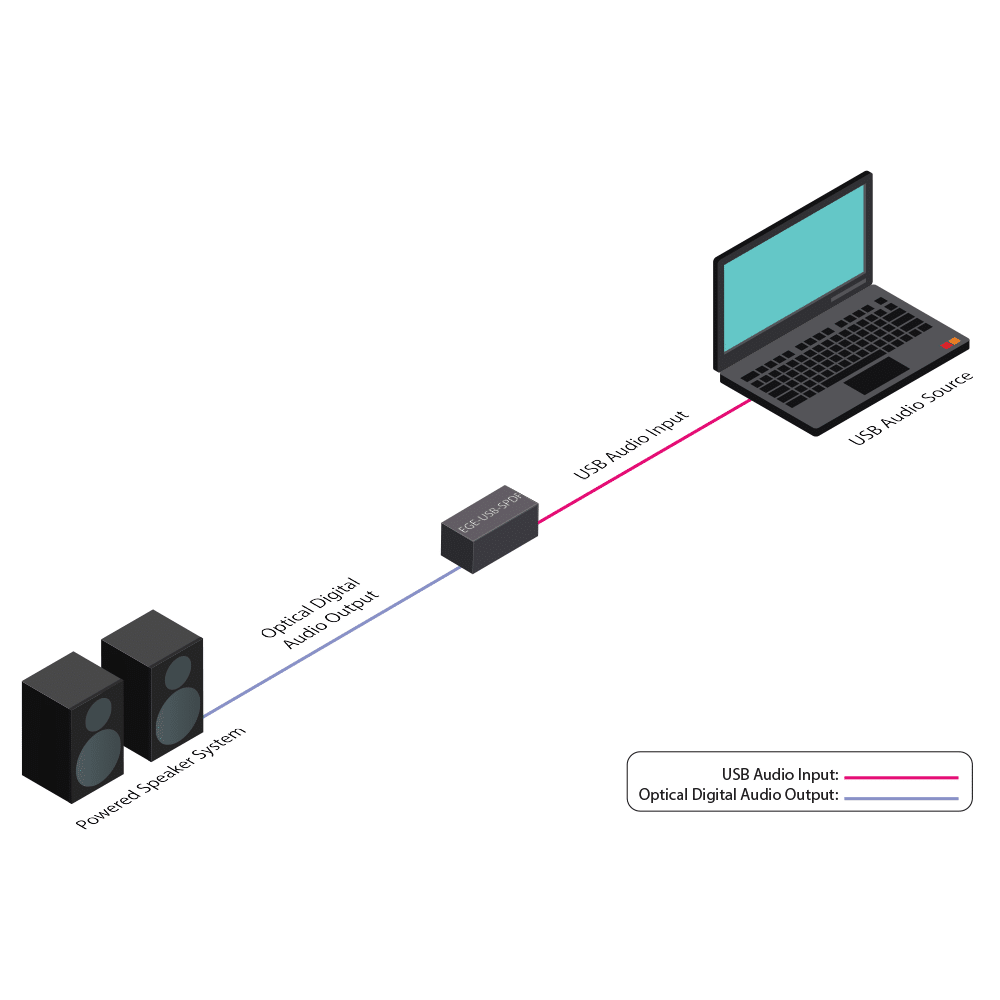

Diagrams

Dowloads

User Manual
Datasheet
