EGE-V-400H

HDMI to Video Scan Converter

HDMI to CV Scaler
HDMI and DVI compliant
VGA@60 Hz to WXGA@60 Hz
LPCM 2CH, 48 kHz

Categories: , ,
Brand:

Description

This HDMI to Composite Converter will convert an HDMI digital signal to an analog NTSC or PAL signal with analog (L/R) stereo audio. This device provides the ability to convert a high de nition signal to a standard de nition resolution (480i or 576i) for use with DVRs or VCRs. The device is HDMI and DVI compliant and has features such as 3D noise reduction, frame rate conversion, adaptive contrast enhancement as well as a simpli ed on-screen display (OSD) allowing easy display of current settings.

Spesifications

  • HDMI and DVI compliant
  • Converts video signal from HDMI source to NTSC or PAL signal
  • Converts digital audio from HDMI source to analog stereo audio
  • Accepts a wide range of HDTV input resolutions, from 480p to 720p@60 Hz and PC from VGA@60 Hz to WXGA@60 Hz
  • Underscan/Overscan option
  • 3D noise reduction in both temporal and spatial domain
  • Arbitrary frame rate conversion
  • Adaptive contrast enhancement

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]

Outputs

  • 1x RCA [1x Composite Video]
  • 2x RCA [1x Stereo (L/R)]

PSU:

  • 5V/1A

Dimensions

  • 114mm [W] x 65mm [D] x 26mm [H]

Net Weight

  • 120g

Box Contents

• HDMI to Composite Converter Box

• 5 V/1 A DC Power Adaptor

• Operation Manual

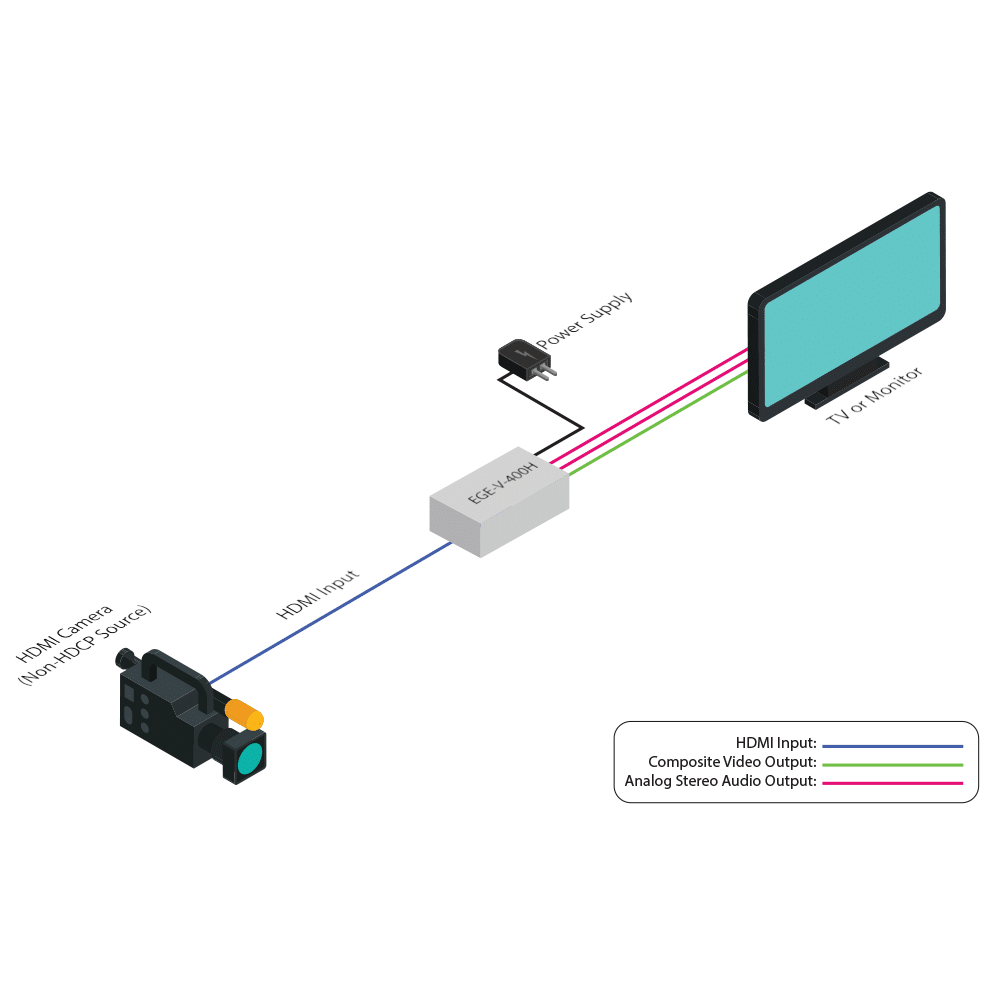

Diagrams
