EGE-V-401H

HDMI to CV Scaler

HDMI to CV Scaler
1080p@60Hz (HDTV)
WUXGA@60 Hz (PC)

Categories: , ,
Brand:

Description

The HDMI to Video Scan Converter is designed to convert a digital signal from HDMI source to analog NTSC or PAL signal, with additional L/R stereo audio output. This device allows the user to convert high definition video to standard resolution (480i or 576i) composite (CVBS)format. The device is HDMI and DVI compliant and has many great features such as motion adaptive 3-D de-interlacing, 3D noise reduction, frame rate conversion, adaptive contrast enhancement and more. It also has a simple on-screen display (OSD) menu that allows the user to access the display status including input/output information.

Spesifications

  • HDMI and DVI 1.0 compliant
  • Converts an HDMI video signal to NTSC/PAL
  • Converts HDMI digital audio to analog stereo audio
  • Accepts a wide range of input resolutions of 480i to 1080p (HDTV) and VGA to WUXGA@60 Hz (PC)
  • Output picture can be set to ‘Underscan’ or ‘Overscan’
  • otion adaptive 3-D de-interlacing with pixel-by-pixel motion adaptive interpolation
  • 3D noise reduction in both temporal and spatial domain
  • Frame rate conversion with a arbitrary conversion ratio
  • Adaptive contrast enhancement

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]

Outputs

  • 1x RCA [1x Composite Video]
  • 2x RCA [1x Stereo (L/R)]

PSU:

  • 5V/1A

Dimensions

  • 26mm [W] x 65mm [D] x 114mm [H]

Net Weight

  • 120gr

Box Contents

• HDMI to Video Scan Converter

• 5 V/1 A DC Power Adaptor

• Operation Manual

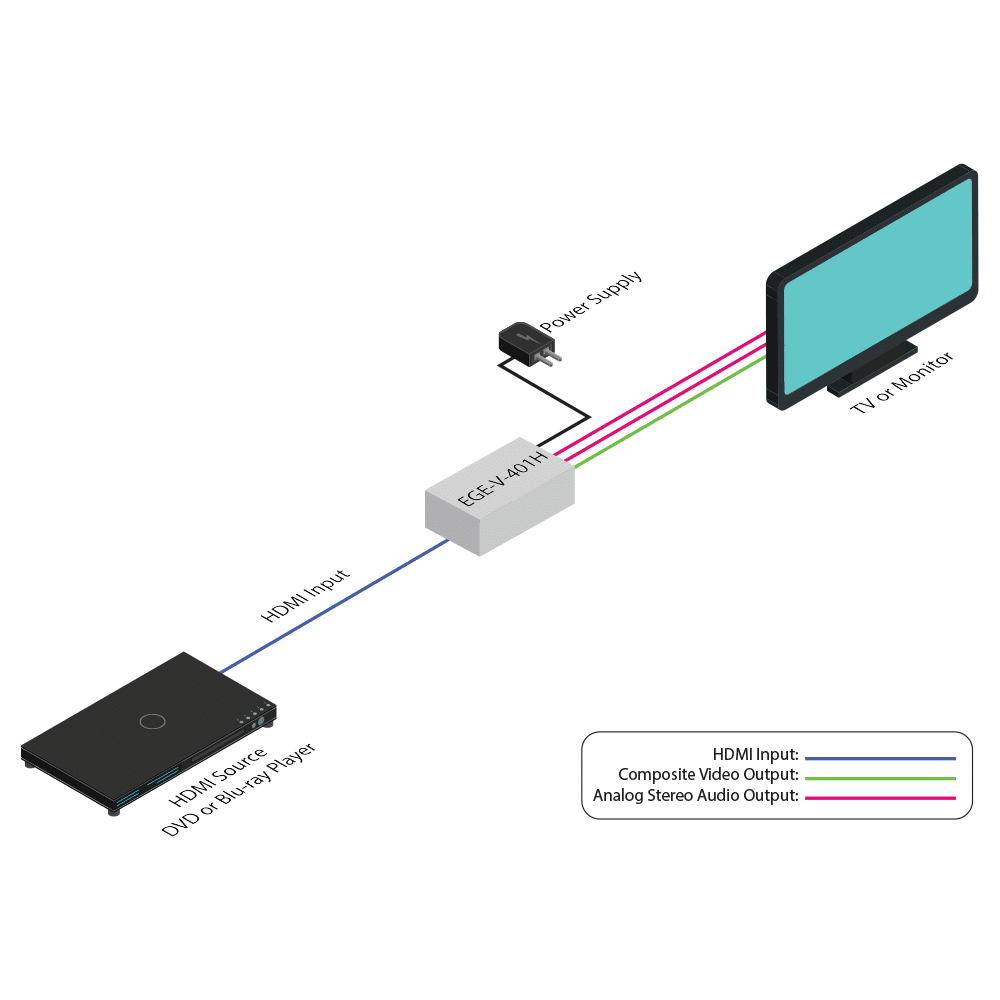

Diagrams
