EGE-V-401V

PC/Component Video to CV Scaler

PC/Component Video to CV Scaler
1080p@60 Hz (Component)
WUXGA@60 Hz (PC)

Description

The PC/HD to Video Scan Converter is designed to down-scale PC/Component source to analog CVBS (NTSC,PAL) signal. Ideal for businesses with multiple CCTV cameras, this device takes your high-resolution camera footage and scales it to lower resolutions. Supporting PC resolutions up to WUXGA@60 Hz, this scaler can also connect new video sources to older displays. The device has many great features such as 3D noise reduction, frame rate conversion, adaptive contrast enhancement and many more. It also has a simple on-screen display (OSD) menu that allows the user to access the display status including input/output information.

Spesifications

  • Converts the video signal from PC/Component source to NTSC or PAL signal
  • Accepts a wide range of input resolutions of 480i to 1080p@60 Hz (Component) and VGA to WUXGA@60 Hz (PC)
  • 3D noise reduction in both temporal and spatial domain
  • Frame rate conversion
  • Adaptive contrast enhancement
  • OSD Display
  • Overscan and underscan adjustment
  • Phase and Aspect adjustment
  • No software installation required

Inputs

  • 1x 15-pin D-sub [1x RGBHV / YPbPr Component]

Outputs

  • 1x RCA [1x Composite Video]

PSU:

  • 5V/1A

Dimensions

  • 26mm [W] x 65mm [D] x 104mm [H]

Net Weight

  • 120gr

Box Contents

• PC/HD to Video Scan Converter

• Power Adaptor

• Operation Manual

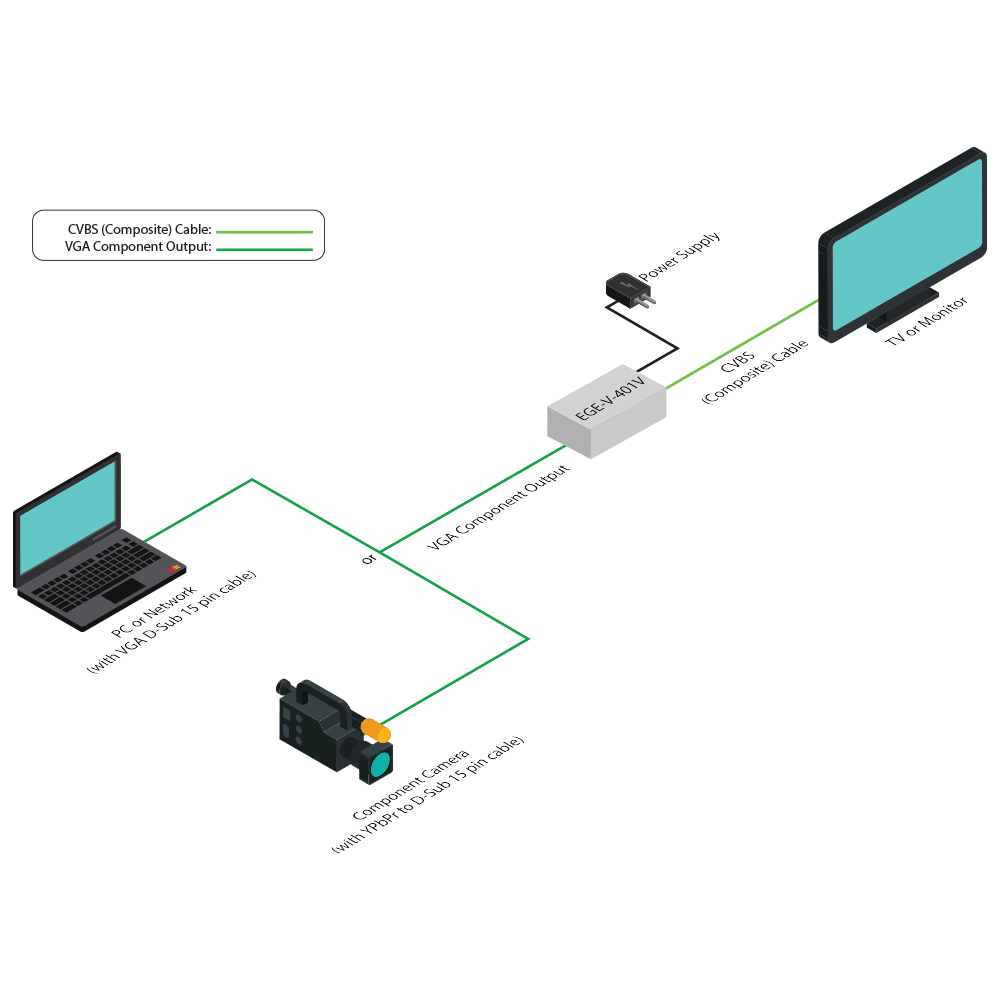

Diagrams
