EGE-VWC-UHD-249

EGE-VWC-UHD-249

Ultra HD Video Wall Processor

2×9 Video Wall Processor
PIP Support
HDCP 2.2

Categories: , , ,
Brand:

Description

This product is an HDMI 2.0 Video Wall controller with 2 HDMI inputs, 2 HDMI loop outputs and 9 HDMI scaling outputs for video wall processing. The Toslink jack terminal provides analogue L/R audio and digital SPDIF audio output. 5-pin phoenix jacket provides balanced L/R audio output. The product also supports RS-232 bypass feature for daisy chain and cascade connection among different units.



Spesifications

  • HDMI 2.0 and HDCP 2.2 compliant
  • Support multi-resolution up to 3840×2160@60Hz video output for video wall
  • Support Bezel Compensation with two modes
  • Support 2 channels HDMI loop out
  • Support PIP on video wal
  • Support 180º rotation
  • Support RS-232 and TCP/IP control
  • Support CEC control with displayers by PC Tool or commands

Box Contents

• 1 x Ultra HD Video Wall Processor

• 1 x AC Power Adapter

• 1 x 5-pin Phoenix Connector

• 2 x 3-pin Phoenix Connector

• 1× RS232 to Phoenix Cable

• 1× CAT6 cable

• 1× USB to RS232 Cable

• 1× User Manual

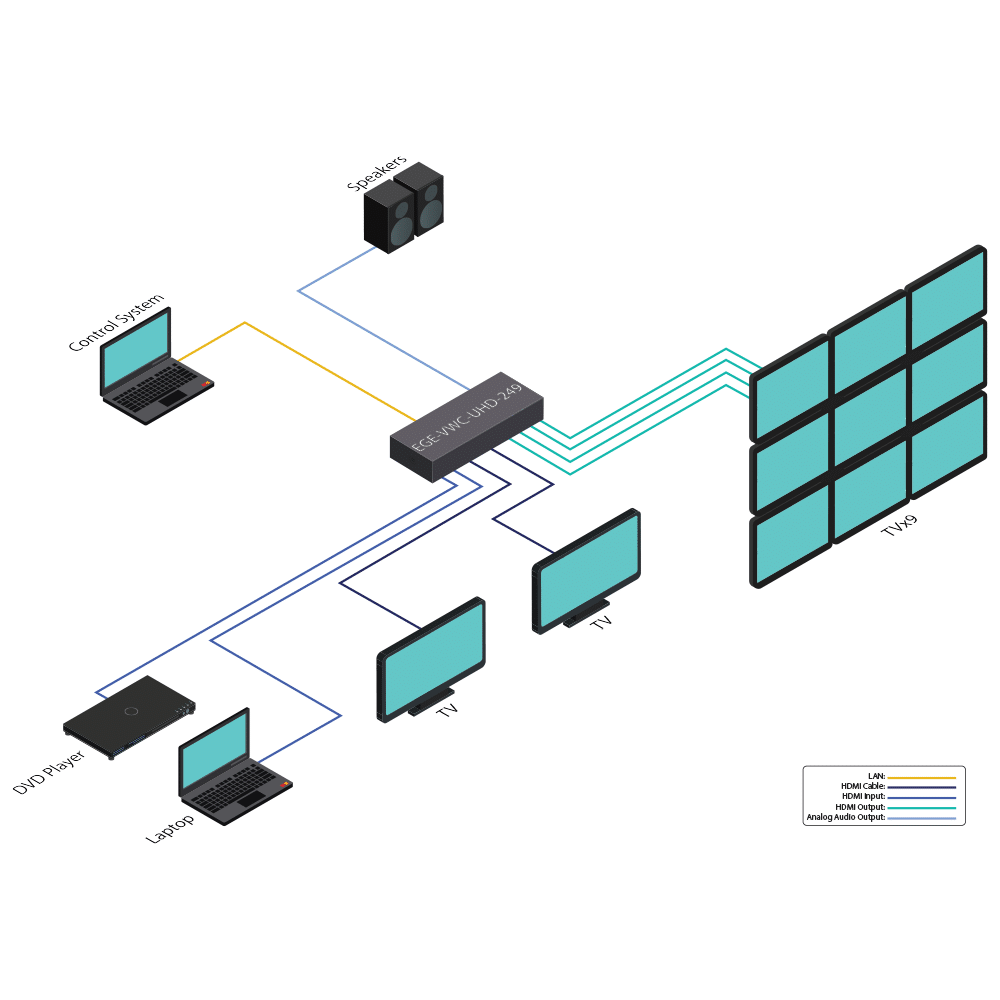

Diagrams
