Description
Overview

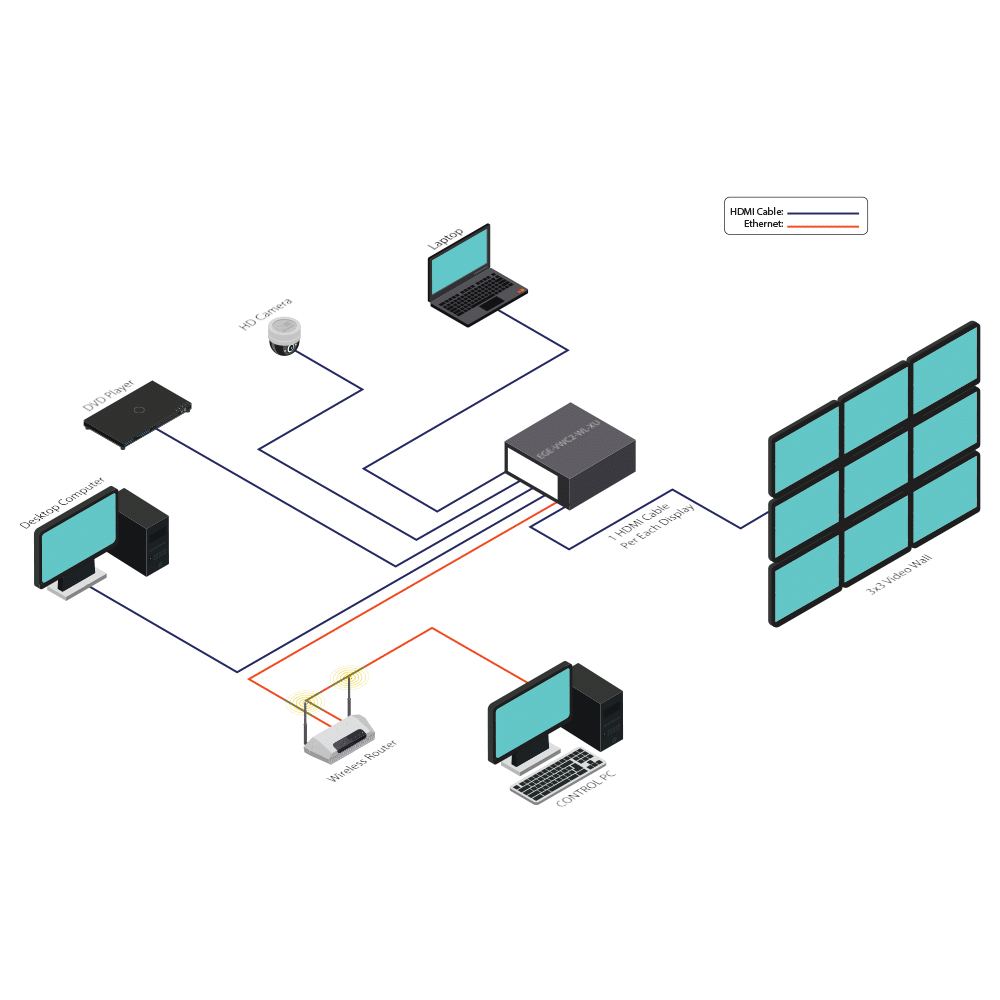

EGE-VWC2-WL-XU is a high-performance video processing server without any operating system. Delivers high quality signal images and real time video as it adopts large-capacity high-speed FPGA array and processing mechanism of cross-point data routing and exchange. Thanks to its hard-ware based structure, it features extremely high stability, fast startup speed and supports 365×24 hours of uninterrupted and stable operation. It can be widely used in security monitoring, exhiitiıns, military command, education and scientific research, goverment announcements, commercial displays and other industires.
1U Chassis :1 input slot, 1 output slot, chassis dimension 437x250x44.5mm, weight <= 5 KG,
power consumption <= 50W
2U Chassis : 2 input slot, 4 output slot, chassis dimension 437x300x89mm, weight <= 10 KG,
power consumption <= 100W
4U Chassis : 4 input slot, 8 output slot, chassis dimension 437x300x178mm, weight <= 20 KG,
power consumption <= 200W
Input Boards
EGE-VWC2-WL-DVI-I: 4 channels of DVI ，24+5 Pin, DVI-I（Female，Digital Signal Only），Max output resolution 1920*1080@60Hz
EGE-VWC2-WL-HDMI-I: 4 channels of HDMI Type A (Female), Suppport HDMI1.3 and HDCP，max output resolution 1920*1080@60Hz；Support embedded audio inside HDMI；support OSD on HDMI source，OSD text font type and size , background and foreground color can be adjusted by control software
EGE-VWC2-WL-4K-I: 1 channel of HDMI1.4 input，support HDCP，max input resolution 3840*2160@30Hz，down-wards compatible
Output Board
EGE-VWC2-WL-HDMI-O: 4 channels of HDMI Type A (Female), Suppport HDMI1.3 and HDCP，max output resolution 1920*1080@60Hz；supports embedded HDMI audio output when input card supports audio in
EGE-VWC2-WL-DVI-O: 4 channels of DVI ，24+5 Pin, DVI-I(Female，Digital Signal Only)，Max output resolution 1920*1080@60Hz
GERATECH EGE-WWC2-WL-4U 12IN 12OUT KONTROL CIHAZI 7.647,50 $
GERATECH EGE-WWC2-WL-4U 16IN 16 OUT KONTROL CIHAZI 8.855,00 $
GERATECH EGE-WWC2-WL-2U 8IN 12 OUT KONTROL CIHAZI 5.750,00 $
GERATECH EGE-WWC2-WL-2U 4IN 4 OUT KONTROL CIHAZI 2.875,00 $
GERATECH EGE-WWC2-WL-2U 8IN 8 OUT KONTROL CIHAZI 4.542,50 $
