Skip to contentDescription

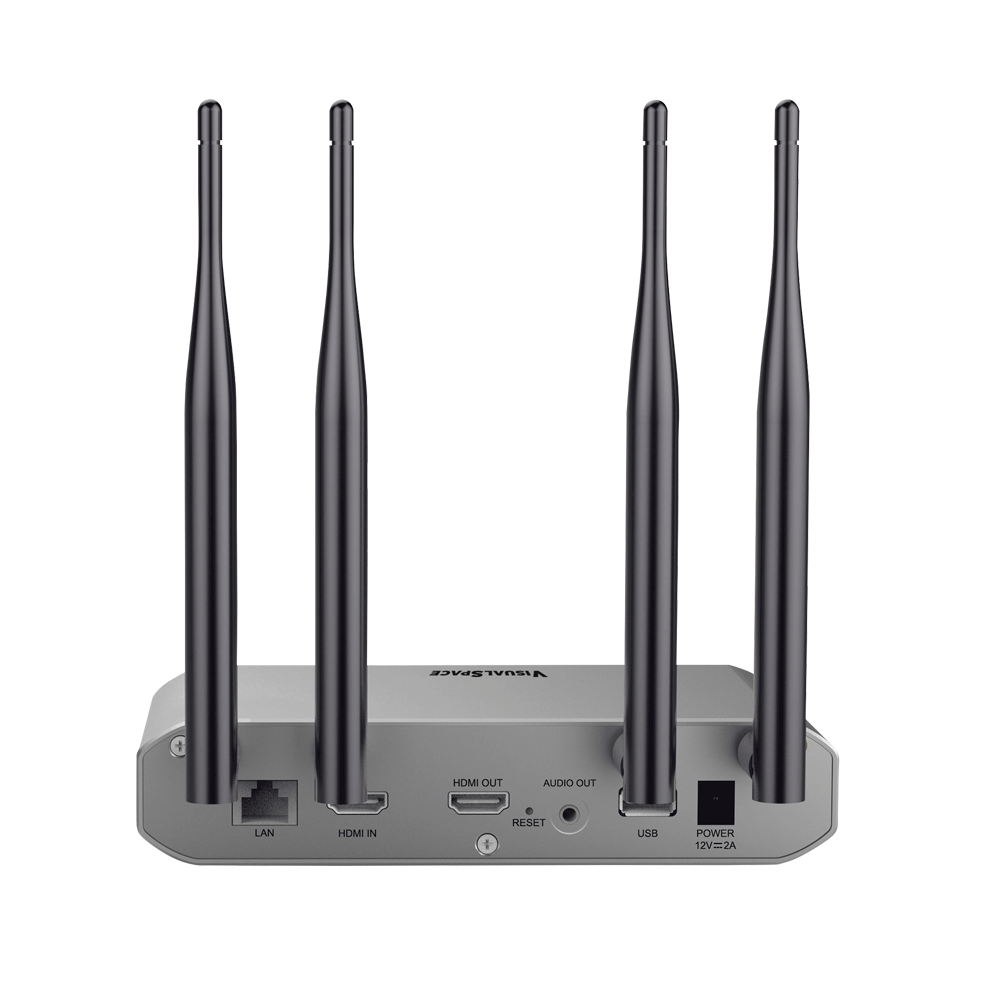

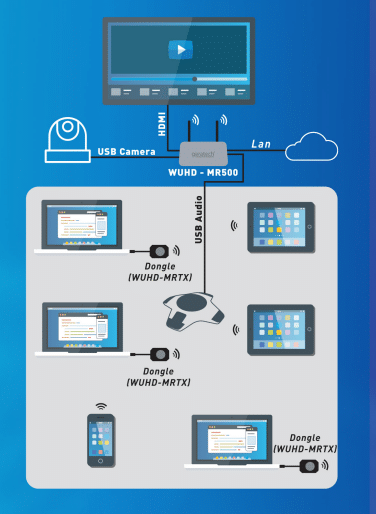

- Fix the antennas to the main unit
- Connect HDMI Out to the Display
- Connect LAN connection the unit will get automatic IP
- Connect Power Supply to the main unit
- Pair USB Dongle connecting USB port of the main unit
- Connect USB Dongle to PC or MAC and run the file in the dongle.
Specifications
- Video input and output supports HDMI 2.0 4K@60Hz
- BYOM-Bring Your Own Meeting and BYOD-Bring Your Own Device
- Wireless Conferencing Solution
- USB2.0 Camera and Speakerphone Support Touch Screen (touch-back) Support
- Type-C, HDMI and USB button options

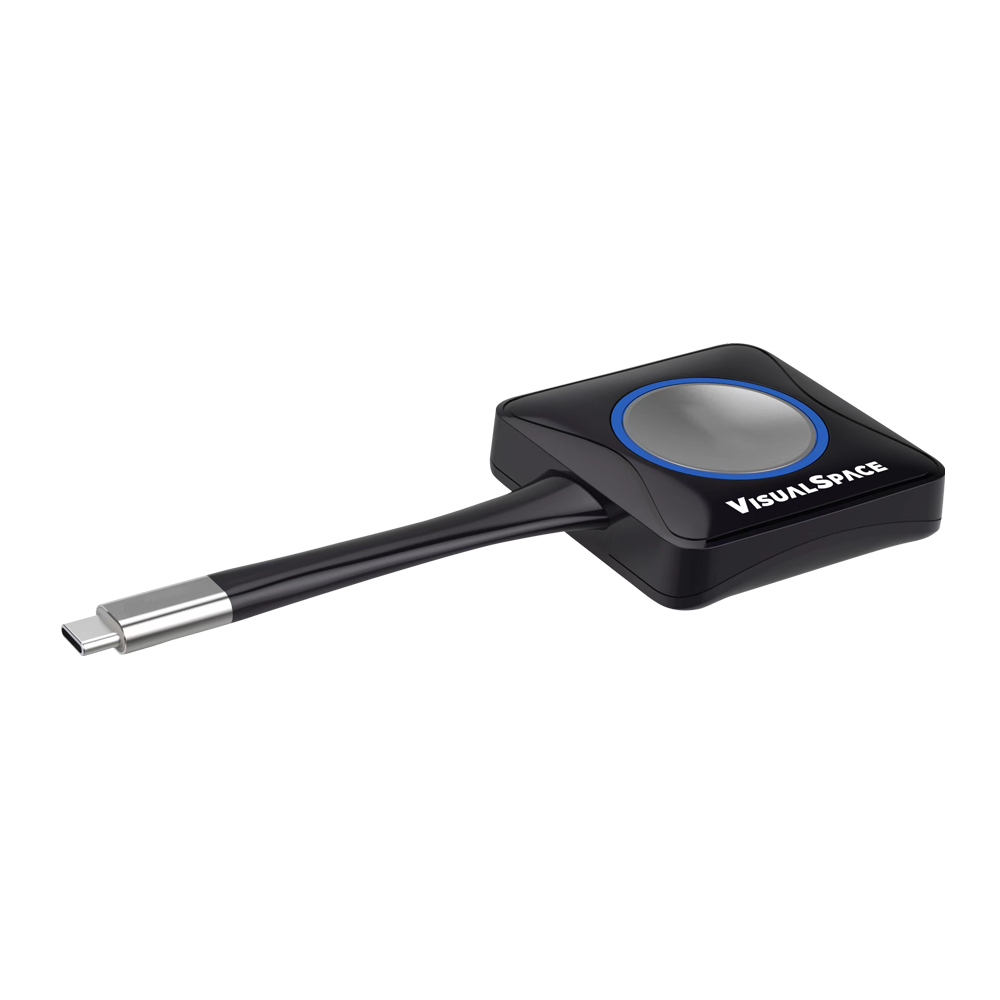

- Wireless transmission of a windows PC or Mac to the Base Unit using Dongles
- 9 USB dongles screen sharing at the same time
- IOS and Android Mobile device screen sharing
- Low Latency 100ms, 50m transmission distance
- Extend display functionality
- HDMI&VGA Out Simultaneously
- Support 2.4Ghz and 5Ghz Band selection
- 16 USB Dongle support (max.9 screen sharing at the same time)
Box Contents
- 1 x WUHD-MR500
- 2x WUHD-MRTX
- 1 x DC12V 1A Power Adapter
- 1 x Four kinds of plugs are optional
- 1 x Memory Stick
Downloads
Datasheet
