EGE-6UHDC2-KVM-WTRL

EGE-6UHDC2-KVM-WTRL

Wall plate is a 2×1 switcher and HDBaseT transmitter

Categories: , ,
Brand:

Description

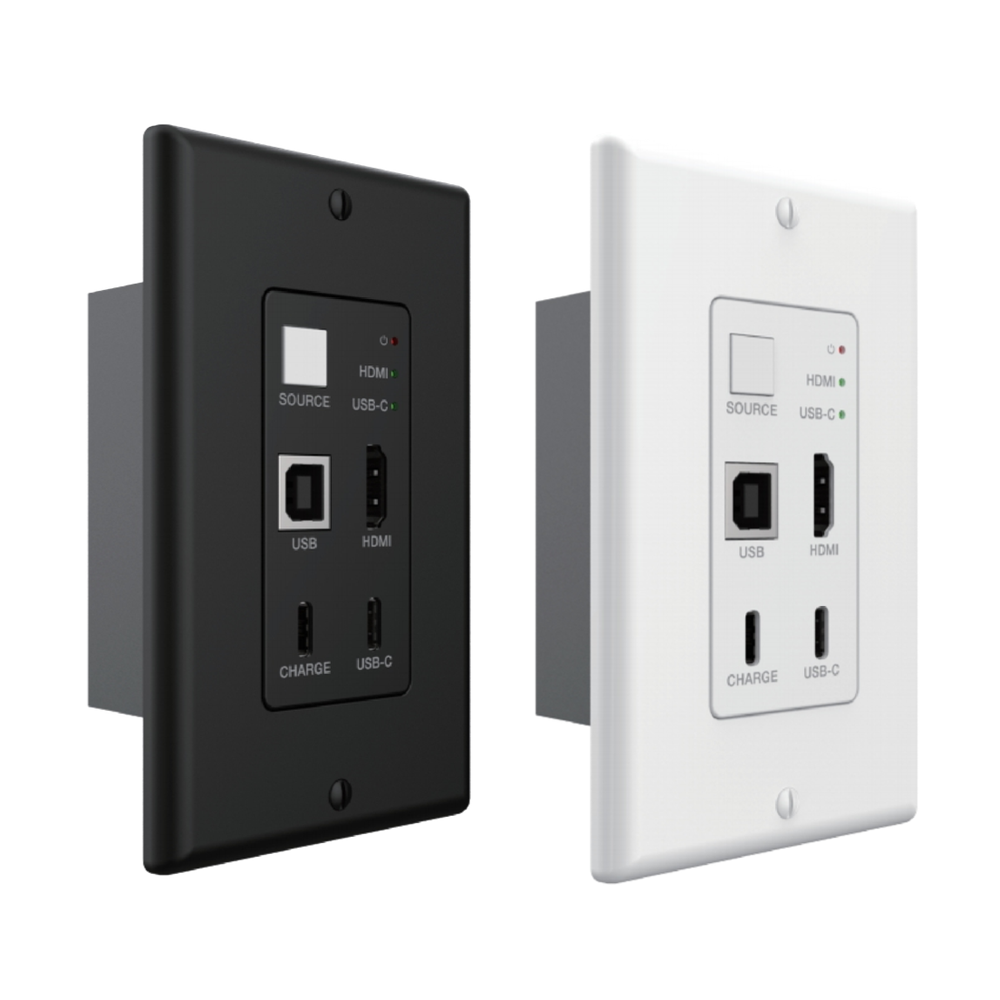

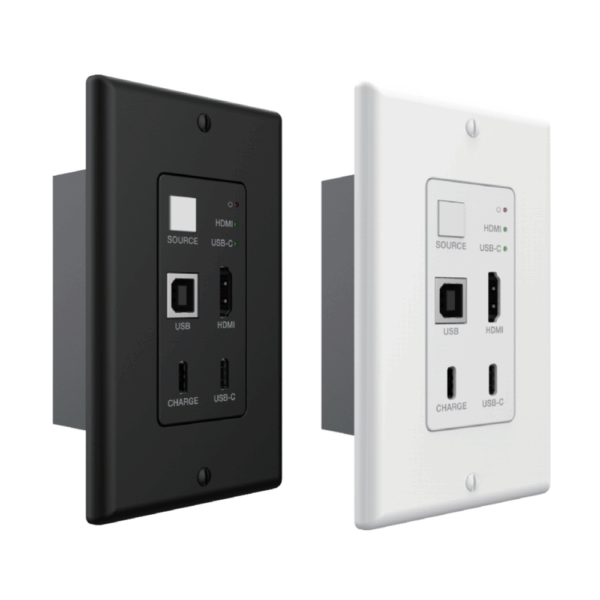

The wall plate is a 2×1 switcher and HDBaseT transmitter with HDMI and USB-C input. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. The USB-C input provides an ideal AV interface for connecting with new Apple notebooks and Windows® PCs as well as smartphones and tablets. Support video resolution up to 4K@60Hz 4:4:4. The product is remotely powered by the receiver or other HDBaseT-equipped devices via POE.

Specifications

  • Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
  • Support 18Gbps video bandwidth
  • Video resolution up to 4K@60Hz 4:4:4
  • HDBaseT output can extend video transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single CAT6/6a/7 cable
  • Support HDR10 and HDR10+
  • Audio formats support Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
  • Support HDMI and USB-C input
  • US one-gang enclosure for Decora-style wall plate openings
  • Input signal selection supports automatic mode and manual mode
  • USB2.0 extension with Receiver
  • Support POE function (only from Receiver to Transmitter)
  • With USB-C charging port
  • Available in white or black coating

Box Contents

  • 1× 18Gbps HDBaseT 70M with USB-C/HDMI & KVM Function Wall Plate Transmitter
  • 1× User Manual

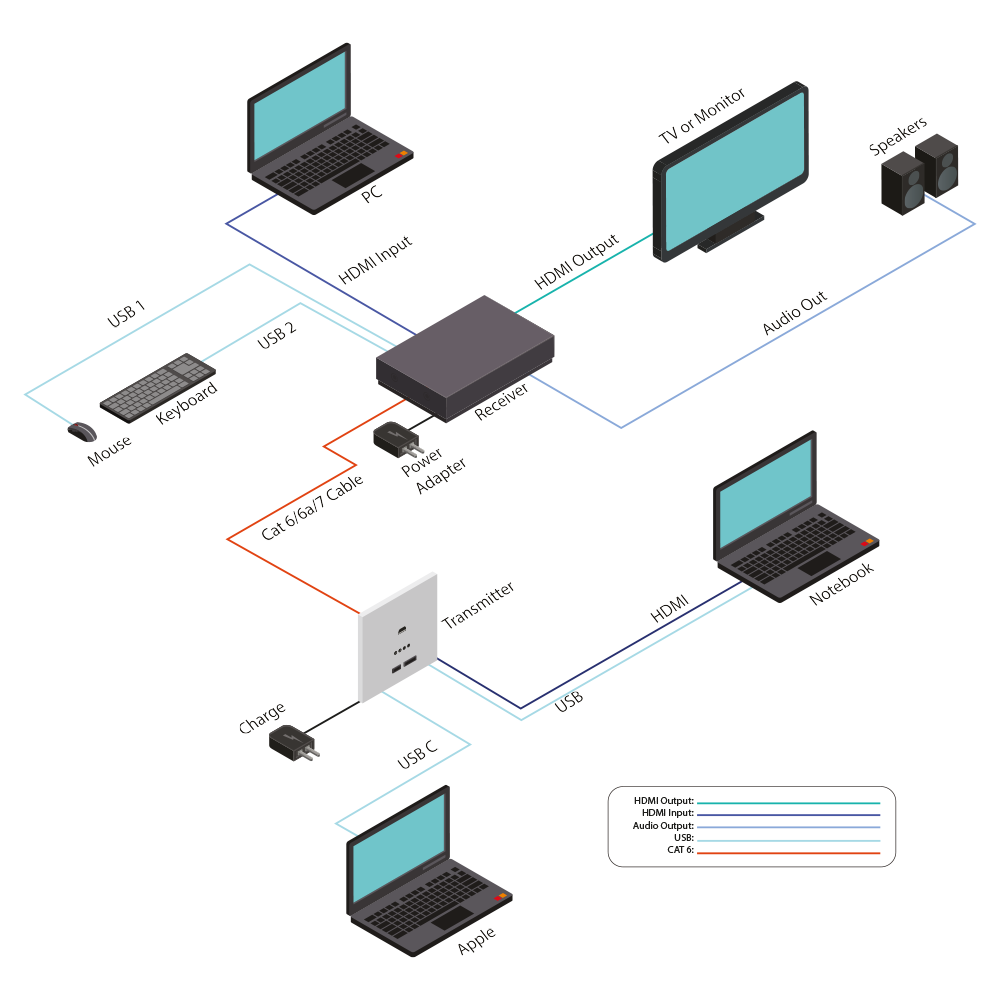

Diagrams

Downloads

Datasheet

User Manual
